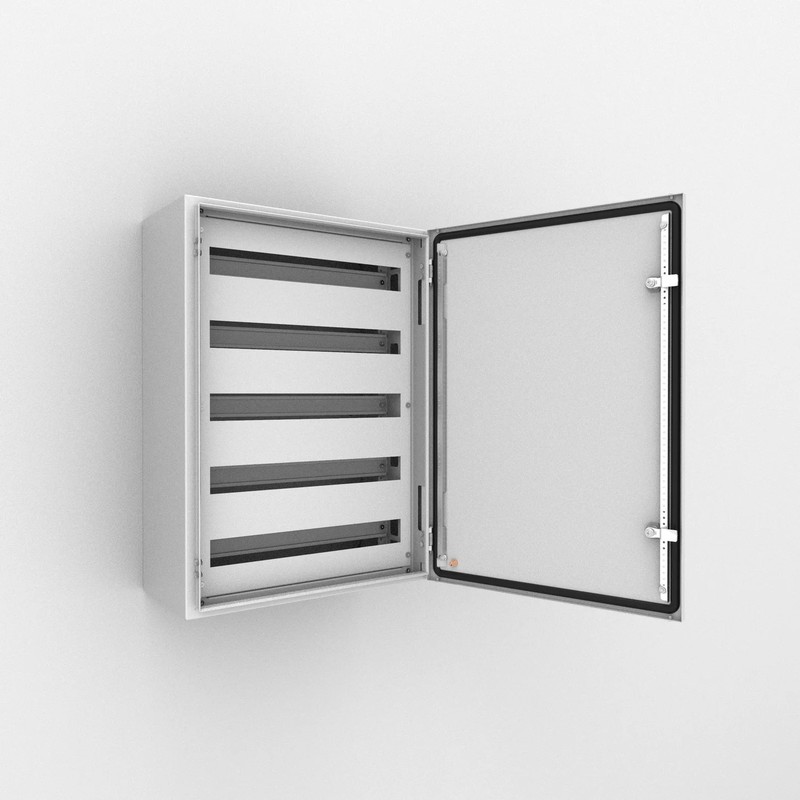

AC10060R5 nVent HOFFMAN Chasis modular, 1000x600 AC10060R5

Descripción:

Used for easy mounting of DIN-rail components with a maximum height of 68 mm. Distance between rows 125 mm. If required, the standard enclosure door can be replaced with a glazed door. Usable depth between front cover and external door: 35 mm. In stainless steel enclosure machining is required.

Material:

DIN-rails PP0735 made of 1.2 mm galvanized steel, vertical profiles 1.5 mm mild steel, and front cover 1.5 mm mild steel.

Acabado:

RAL 7035 structured powder coating.

Cantidad por embalaje: :

Slotted front panel, two vertical profiles, top and bottom blank panels, one DIN-rail per row, and mounting accessories.

Feature:

Chassis with a front cover to mount DIN-rail components within wall mounted enclosures.

Advantage:

Modular components can be pre-mounted onto the chassis before being installed into the enclosure. The electrical cables will be covered by the front cover.

Benefit:

The chassis allows panel builders to quickly install modular components. As the electrical connections and cables are protected, safe operations can be performed in the field.

Comment:

Stainless steel wall mounted enclosures require machining before the chassis can be mounted.
