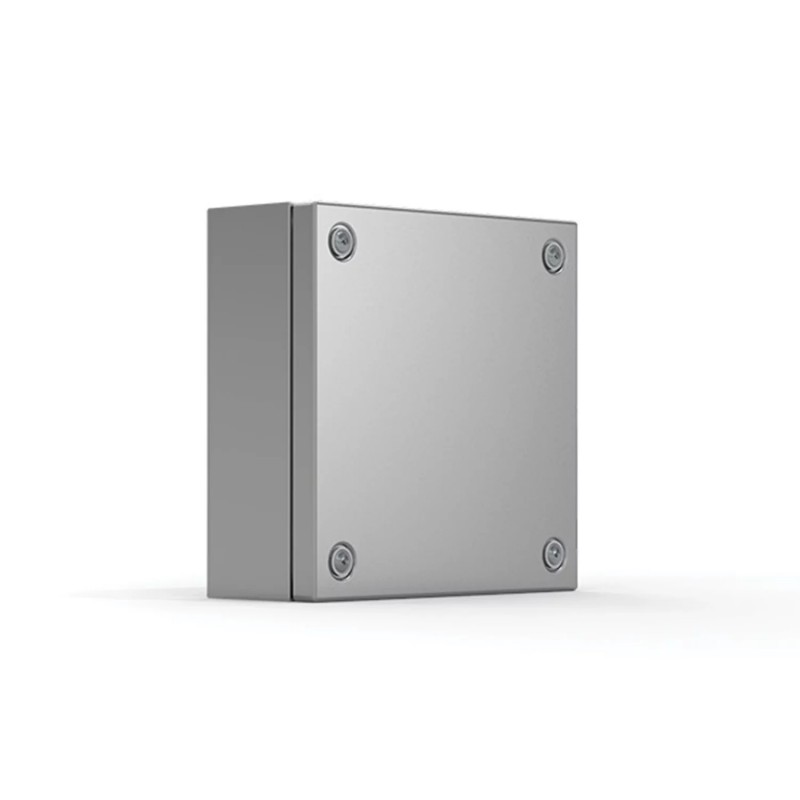

SSTB202008 nVent HOFFMAN Caja para bornas, 200x200x80 SSTB202008

Material:

Acero inoxidable pulido AISI 304L / AISI 316L (bajo pedido). Base: 1 mm. Tapa: 1,5 mm.

Estructura:

Plegada y soldada. Cuatro pernos M6x13 soldados en la base para la fijación de los soportes para carriles DIN/Placa de montaje.

Junta:

Para AISI 316L, la protección está asegurada por medio de una junta de silicona inyectado.

Puesta a tierra:

Pernos de toma a tierra M8x18 mm en la estructura y en la tapa, tuercas M8, arandelas y etiquetas de puesta a tierra.

Protección:

IP 66 TYPE 4X, 12, 13 IK 08.

Acabado:

Acero inoxidable pulido 400.

Suministro:

Base de la caja, tapa, tornillos para la tapa, accesorios de montaje, embellecedores y facilidades para la conexión a tierra.

Feature:

Stainless steel 304 and 316(L) terminal boxes, available in a wide range of sizes, with a high IP66 protection degree.

Advantage:

Customers can choose terminal boxes that meet their size requirements, off the shelf. The installed components inside the terminal box will be safe and secure due to the high protection degree.

Benefit:

Customers can receive terminal boxes with a short delivery time, that match their size requirements which can be installed in both indoor and outdoor environments due to the terminal box's excellent resistance to corrosion. This will also remove any extra costs due to oversizing. Component failure and unnecessary downtime is avoided as water and dust are prevented from entering the terminal box.

Comment:

The mounting plate, BMP, and DIN profiles, BDR, mounted on profiles, BPP, have to be ordered separately, in order to complete the installation of the terminal box.
