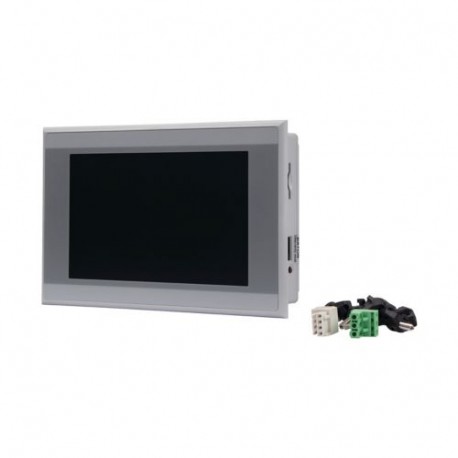

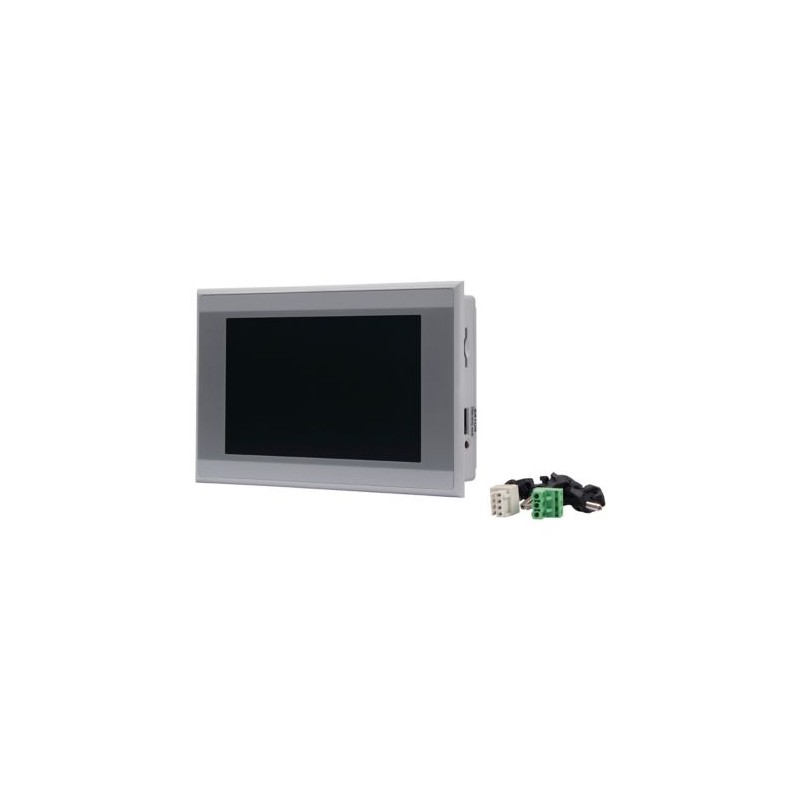

XV-102-E6-70TWRC-10 153527 Y7-153527 EATON ELECTRIC Terminal Tactil 7" Resistiva TFT Color Ethernet RS485 CA..
XV-102-E6-70TWRC-10
153527
Y7-153527
EATON-MOELLER
Terminal Tactil; 7"; Resistiva; TFT Color; Ethernet; RS485; CAN;
Terminal Tactil. 7". Resistiva. TFT Color. Ethernet. RS485. CAN.
Eaton XV-102 Touch panel, 24 V DC, 7z, TFTcolor, ethernet, RS485, CAN, SWDT, PLC
Interfaz de usuario, XV-102, Gama de productos: XV100 7z, Subgama: Pantalla táctil SmartWire-DT con controlador integrado (HMI PLC), Función: Coordinador SmartWire-DT, Descripción: Pantalla táctil XV100 con función PLC para placas de montaje empotradas, Coordinador para el sistema de comunicaciones SmartWire-DT, Características comunes de la serie de modelos: Interfaz Ethernet, Dispositivo USB, Host USB, Ranura para tarjeta SD, UL508, homologaciones cUL, Pantalla - Tipo: Pantalla a color, TFT, Tecnología táctil: Resistive-Touch, Número de colores: 64 k Colores, Resolución: WVGA, 800 x 480 píxeles, Formato vertical: sí, Diagonal de la pantalla: 7 pulgadas, Carcasa aislante y placa frontal, Sistema operativo: Windows CE 5.0 (licencia incluida), Licencia PLC: Licencia PLC incluida, Certificados de licencia para interfaces integradas: No necesario, Interfaces integradas: 1 x Ethernet 10/100 Mbps, 1 x RS485, 1 x host USB 2.0, 1 x dispositivo USB, 1 x CANopen®/easyNet, 1 x SmartWire-DT, Tipo frontal: Frontal estándar con membrana estándar (totalmente cerrada), Utilización: Montaje empotrado, Ranuras: para tarjeta SD: 1, Automatización de la tarjeta de memoria: Opcionalmente con tarjeta SD -> n.º de artículo 139807, Tarjetas de comunicación enchufables (opcional): no, Sensor táctil: Vidrio con película, Disipación de calor: 9,5 W, Conexión a SmartWire-DT: sí, Grado de protección (IEC/EN 60529, EN50178, VBG 4): IP65 (en la parte delantera), IP20 (en la parte trasera)
Controladores industriales (PLC) > Panel gráfico
Terminales Táctiles HMI
Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER
productos relacionados
▲Más vendidos
▲Más Información
▲Especificaciones generales
Product Name
Eaton XV-102 Touch panel
Catalog Number
153527
EAN
7640130097629
Product Length/Depth
210 mm
Product Height
38 mm
Product Width
135 mm
Product Weight
0.66 kg
Certifications
Certified by UL for use in Canada
IEC/EN 61000-6-2
UL
UL Category Control No.: NRAQ
UL508
CSA Class No.: none
CUL508
EN 50178
CSA File No.: UL report applies to both US and Canada
CULus
EN 60950
IEC/EN 61131-2
IEC/EN 61131-2, CE
UL File No.: E205091
DNV GL
IEC/EN 61000-6-4
UL 60950
EAC
IEC/EN 61000-6-2
UL
UL Category Control No.: NRAQ
UL508
CSA Class No.: none
CUL508
EN 50178
CSA File No.: UL report applies to both US and Canada
CULus
EN 60950
IEC/EN 61131-2
IEC/EN 61131-2, CE
UL File No.: E205091
DNV GL
IEC/EN 61000-6-4
UL 60950
EAC
Model Code
XV-102-E6-70TWRC-10
Características y funciones
Enclosure material
Plastic
Features
Portrait format
Target and web visualization
Ethernet interface
Overload proof
Slot for SD card
USB device
USB Host
Fanless CPU and system cooling, natural convection-based passive cooling
UL508, cUL approvals
Target and web visualization
Ethernet interface
Overload proof
Slot for SD card
USB device
USB Host
Fanless CPU and system cooling, natural convection-based passive cooling
UL508, cUL approvals
Fitted with:
Printer output
Message indication
1 x USB device (built-in interface)
1 x USB host 2.0 (built-in interface)
1 x RS485 (built-in interface)
Message system (incl. buffer and confirmation)
1 x Ethernet 10/100 Mbps (built-in interfaces)
Alpha numeric keyboard
SW interfaces
Color display
Numeric keyboard
Recipes
1 x SmartWire-DT (built-in interface)
1 x CANopen®/easyNet (built-in interfaces)
Message indication
1 x USB device (built-in interface)
1 x USB host 2.0 (built-in interface)
1 x RS485 (built-in interface)
Message system (incl. buffer and confirmation)
1 x Ethernet 10/100 Mbps (built-in interfaces)
Alpha numeric keyboard
SW interfaces
Color display
Numeric keyboard
Recipes
1 x SmartWire-DT (built-in interface)
1 x CANopen®/easyNet (built-in interfaces)
Functions
SmartWire-DT coordination
Process value representation (output) possible
Process default value (input) possible
Additional software components, loadable
Process value representation (output) possible
Process default value (input) possible
Additional software components, loadable
General
Battery runtime
Back-up of real-time clock: CR 2032 (190 mA/h), zero maintenance (soldered)
Degree of protection
IP20, rear
IP20
IP20
Degree of protection (front side)
NEMA 4X
IP65
IP65
Fuse type
Built-in fuse (not accessible)
Lifespan
40,000 h (Service life of back-lighting)
Model
Insulating enclosure and front plate
Mounting method
Flush mounting
Flush mounting - Clearance: Width x Height x Depth ≥ 30 mm (1.18")
Flush mounting - Inclination from vertical: ±45° (if using natural convection)
Flush mounting - Clearance: Width x Height x Depth ≥ 30 mm (1.18")
Flush mounting - Inclination from vertical: ±45° (if using natural convection)
Product category
SmartWire-DT coordinators
Repetition rate
1 s
Residual ripple
≤ 5 % (input voltage)
RoHs conformity
Yes
Short-circuit protection
No, external fuse FAZ Z3, Supply voltage UAux
Yes, Short-circuit rating, SmartWire-DT supply voltage
Yes, Short-circuit rating, SmartWire-DT supply voltage
Software
EPAM, Visualization software, Engineering
XSOFT-CODESYS-3, PLC-Programming software, Engineering
XSOFT-CODESYS-3, Visualization software, Engineering
XSOFT-CODESYS-2, Visualization software, Engineering
GALILEO, Visualization software, Engineering
XSOFT-CODESYS-2, PLC-Programming software, Engineering
XSOFT-CODESYS-3, PLC-Programming software, Engineering
XSOFT-CODESYS-3, Visualization software, Engineering
XSOFT-CODESYS-2, Visualization software, Engineering
GALILEO, Visualization software, Engineering
XSOFT-CODESYS-2, PLC-Programming software, Engineering
Terminal capacity
0.2 - 1.5 mm², solid
0.25 - 1.5 mm², flexible with ferrule
24 - 16 AWG, solid or stranded
0.25 - 1.5 mm², flexible with ferrule
24 - 16 AWG, solid or stranded
Type
Coordinator for the SmartWire-DT communications system
Voltage type
DC
Condiciones ambientales y mecánicas
Shock resistance
Mechanical, According to IEC/EN 60068-2-27
Vibration resistance
According to IEC/EN 60068-2-6
Condiciones climáticas ambientales
Air pressure
795 - 1080 hPa (operation)
Ambient operating temperature - min
0 °C
Ambient operating temperature - max
50 °C
Ambient storage temperature - min
-20 °C
Ambient storage temperature - max
60 °C
Operating temperature - min
0 °C
Operating temperature - max
50 °C
Relative humidity
10 - 95 % (non-condensing)
Compatibilidad electromagnética
Voltage dips
5 ms from undervoltage (19.2 V DC)
≤ 10 ms, Bridging voltage dips
≤ 10 ms from rated voltage (24 V DC)
≤ 10 ms, Bridging voltage dips
≤ 10 ms from rated voltage (24 V DC)
Especificaciones eléctricas
Inrush current
12.5 A (for 6 ms)
Permissible voltage
18.0 - 31.2 V DC, absolute with ripple
19.2 - 30 V DC, effective (rated operating voltage -20 %/+25 %)
18 - 31.2 V DC, battery powered (rated operating voltage -25 %/+30 %)
35 V DC (for a duration of < 100 ms)
19.2 - 30 V DC, effective (rated operating voltage -20 %/+25 %)
18 - 31.2 V DC, battery powered (rated operating voltage -25 %/+30 %)
35 V DC (for a duration of < 100 ms)
Power consumption
9.5 W total
2.5 W (USB Slave to USB Host)
Max. 10 W
7 W
2.5 W (USB Slave to USB Host)
Max. 10 W
7 W
Rated control supply voltage
24 V DC (UPOW, -20 %/+25 %)
24 V DC (UAUX, -20 %/+25 %)
24 V DC (UAUX, -20 %/+25 %)
Rated operational current (Ie)
0.7 A
Rated operational voltage
14.5 V (± 3 % - SmartWire-DT)
Typically UAUX -0.2 V (for 24 V DC slaves)
24 V DC (power-supply - safety extra low voltage)
Typically UAUX -0.2 V (for 24 V DC slaves)
24 V DC (power-supply - safety extra low voltage)
Supply current
0.7 A, Imax, SmartWire-DT supply
If SmartWire-DT modules with a total power consumption > 0.7 A are connected, a power feeder module EU5C-SWD-PF2 has to be used; SmartWire-DT supply
3 A, Imax, Supply voltage UAux
If contactors with a total power consumption > 3 A are connected, a power feeder module EU5C-SWD-PF1/2 has to be used, Supply voltage UAux
If SmartWire-DT modules with a total power consumption > 0.7 A are connected, a power feeder module EU5C-SWD-PF2 has to be used; SmartWire-DT supply
3 A, Imax, Supply voltage UAux
If contactors with a total power consumption > 3 A are connected, a power feeder module EU5C-SWD-PF1/2 has to be used, Supply voltage UAux
Supply voltage at AC, 50 Hz - min
0 VAC
Supply voltage at AC, 50 Hz - max
0 VAC
Supply voltage at DC - min
20.4 VDC
Supply voltage at DC - max
28.8 VDC
Comunicación
Addressing
Address set automatically
Communication interface
SmartWire-DT master
Connection
SmartWire-DT blade terminal SWD4-8MF2
Connection to SmartWire-DT
Yes
Connection type
Push in terminals, Supply voltage
SWD: Plug, 8-pole
SWD: Plug, 8-pole
Data transfer rate
250 kBit/s, SmartWire-DT
125 kBit/s, SmartWire-DT
125 kBit/s, SmartWire-DT
Interfaces
USB 2.0 device (not galvanically isolated)
RS485
Ethernet (100Base-TX/10Base-T)
USB 2.0 host (1.5 - 12 Mbit/s, not galvanically isolated)
CAN
easyNet
RS485
Ethernet (100Base-TX/10Base-T)
USB 2.0 host (1.5 - 12 Mbit/s, not galvanically isolated)
CAN
easyNet
LED indicator
Status indication of SmartWire-DT master: Green and red LEDs
Status indication of Supply voltage: LED
Status indication of SmartWire-DT network: Configurable green or red LED
Status indication of Supply voltage: LED
Status indication of SmartWire-DT network: Configurable green or red LED
Number of slots
1 (for SD-Card)
Number of SmartWire-DT slaves
99
Protocol
EtherNet/IP
CAN
TCP/IP
Other bus systems
MODBUS
CAN
TCP/IP
Other bus systems
MODBUS
Station
SmartWire-DT master, SmartWire-DT network
Pantalla
Display contrast ratio
300:1
Display lighting
LED
Dimmable via software
Dimmable via software
Display size
152 x 91 mm
Display type
TFT
Standard front with standard membrane (fully enclosed)
Color display, TFT
Standard front with standard membrane (fully enclosed)
Color display, TFT
Luminance intensity
250 cd/m²
Number of colors of the display
65536
Screen size (diagonal)
7 in
Touch technology
Glass with film touch sensor
Touch sensor (glass with foil), Resistive touch protective screen
Resistive touch
Touch sensor (glass with foil), Resistive touch protective screen
Resistive touch
Entrada/salida
Resolution
Seguridad
Explosion safety category for dust
ATEX dust-ex-protection, in relation to CE
ATEX dust-ex-protection, II 3D Ex II T70°C IP5x: Zone 22, Category 3D
ATEX dust-ex-protection, II 3D Ex II T70°C IP5x: Zone 22, Category 3D
Explosion safety category for gas
Explosion protection according to EN 61241-1
Explosion protection according to EN 60079-0
Explosion protection according to EN 13463_x
Explosion protection according to EN 60079-0
Explosion protection according to EN 13463_x
Potential isolation
Supply voltage UAUX: no
Between UPow and 15 V SmartWire-DT supply voltage: no
Power supply: no
Between UPow and 15 V SmartWire-DT supply voltage: no
Power supply: no
Protection against polarity reversal
Yes
Yes, for supply voltage (Siemens MPI optional)
Yes, for supply voltage (Siemens MPI optional)
Sistema
Backup time
10 years, typ. (time at zero voltage)
Memory
64 MByte internal DRAM (OS, Program and data memory)
128 MByte internal NAND-Flash (can be used for data backup)
32 kByte internal NVRAM (retained data)
SD Memory Card Slot: SDA Specification 1.00 (External)
128 MByte internal NAND-Flash (can be used for data backup)
32 kByte internal NVRAM (retained data)
SD Memory Card Slot: SDA Specification 1.00 (External)
Memory capacity
64,000 kByte
Operating system
Windows CE 5.0 (license included)
Processor
RISC CPU, 32 Bit, 400 MHz
Verificación del diseño
Equipment heat dissipation, current-dependent Pvid
9.5 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
9.5 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Característica | Valor |
|---|---|
| Tensión de alimentación 50 Hz CA (EF007532) | 0 V |
| Tensión de alimentación 60 Hz CA (EF007533) | 0 V |
| Tensión de alimentación CC (EF007534) | 20.4 V |
| Tipo de tensión de alimentación (EF002991) | CC |
| Consumo de energía (EF000346) | 9.5 W |
| Número de interfaces HW Ethernet industrial (EF003020) | 1 |
| Número de interfaces PROFINET (EF006932) | 0 |
| Número de interfaces HW RS232 (EF003021) | 0 |
| Número de interfaces HW RS422 (EF003022) | 0 |
| Número de interfaces HW RS485 (EF003023) | 1 |
| Número de interfaces HW en serie TTY (EF003024) | 0 |
| Número de interfaces HW USB (EF003025) | 2 |
| Número de interfaces HW en paralelo (EF003026) | 0 |
| Número de interfaces HW sin cables (EF006933) | 0 |
| Número de interfaces HW Otras (EF003027) | 1 |
| Con interfaces SW (EF003121) | Sí |
| Soporta el protocolo EtherCAT (EF017564) | No |
| Soporta el protocolo TCP/IP (EF003050) | Sí |
| Soporta el protocolo PROFIBUS (EF003052) | No |
| Soporta el protocolo CAN (EF003053) | Sí |
| Soporta el protocolo INTERBUS (EF003054) | No |
| Soporta el protocolo ASI (EF003051) | No |
| Soporta protocolo KNX (EF003055) | No |
| Soporta el protocolo Modbus (EF003057) | Sí |
| Soporta el protocolo de autopista de datos (EF003058) | No |
| Soporta el protocolo DeviceNet (EF003059) | No |
| Soporta el protocolo SUCONET (EF003060) | No |
| Soporta el protocolo LON (EF003017) | No |
| Soporta el protocolo PROFINET IO (EF007525) | No |
| Soporta el protocolo PROFINET CBA (EF007524) | No |
| Soporta el protocolo SERCOS (EF006657) | No |
| Soporta el protocolo Foundation Fieldbus (EF007522) | No |
| Soporta el protocolo Ethernet/IP (EF007521) | Sí |
| Soporta el protocolo AS-Interface Safety at Work (EF007519) | No |
| Soporta el protocolo DeviceNet Safety (EF007520) | No |
| Soporta el protocolo de seguridad INTERBUS (EF006662) | No |
| Soporta el protocolo PROFIsafe (EF007526) | No |
| Soporta el protocolo SafetyBUS p (EF007527) | No |
| Soporta el protocolo para otros sistemas bus (EF003062) | Sí |
| Estándar inalámbrico Bluetooth (EF007178) | No |
| Estándar de radio WLAN 802.11 (EF007179) | No |
| Estándar de radio GPRS (EF008523) | No |
| Estándar de radio GSM (EF008524) | No |
| Estándar de radio UMTS (EF008525) | No |
| Maestro de enlace E/S (EF007298) | No |
| Ejecución de la pantalla (EF008244) | TFT |
| Con pantalla a color (EF003097) | Sí |
| Número de colores de la pantalla (EF003098) | 65536 |
| Número de niveles de la escala de grises/azul de la pantalla (EF008515) | 0 |
| Tamaño de la pantalla (EF002032) | 7 inch |
| Número de píxeles, horizontal (EF003099) | 800 |
| Número de píxeles, vertical (EF003100) | 480 |
| Memoria de proyecto/memoria de usuario utilizable (EF003108) | 64000 kByte |
| Con teclado numérico (EF003105) | Sí |
| Con teclado alfanumérico (EF003106) | Sí |
| Número de teclas de función, programables (EF003103) | 0 |
| Número de teclas con LED (EF009259) | 0 |
| Número de teclas "sistema" (EF009260) | 1 |
| Tecnología táctil (EF010884) | Táctil resistivo |
| Con indicación de mensajes (EF003109) | Sí |
| Con sistema de mensajes (incluyendo búfer y acuse de recibo) (EF003110) | Sí |
| Posibilidad de representación de valor de proceso (salida) (EF003111) | Sí |
| Posibilidad de especificación de valor de proceso (entrada) (EF003112) | Sí |
| Con recetas (EF003113) | Sí |
| Número de niveles, protección con contraseña (EF003114) | 200 |
| Con salida de impresora (EF003115) | Sí |
| Número de idiomas en línea (EF003116) | 100 |
| Componentes de software adicionales, cargables (EF003117) | Sí |
| Grado de protección (IP), frontal (EF003118) | IP65 |
| Grado de protección NEMA, parte frontal (EF011961) | 4X |
| Certificado para áreas peligrosas UL clase I (EF017622) | No |
| Certificado para UL clase II (EF017625) | No |
| Certificado para áreas peligrosas UL Clase III (EF017627) | No |
| Certificado para áreas peligrosas UL División 1 (EF017628) | No |
| Certificado para áreas peligrosas UL División 2 (EF017629) | No |
| Certificado para áreas peligrosas grupo A (acetileno) (EF017632) | No |
| Certificado para áreas peligrosas grupo B (hidrógeno) (EF017633) | No |
| Certificado para áreas peligrosas grupo C (etileno) (EF017635) | No |
| Certificado para áreas peligrosas grupo D (propano) (EF017636) | No |
| Certificado para áreas peligrosas grupo E (polvos metálicos) (EF017637) | No |
| Certificado para áreas peligrosas grupo F (polvos carbonosos) (EF017638) | No |
| Certificado para áreas peligrosas grupo G (polvos no conductores) (EF017639) | No |
| Temperatura de operatividad (EF002393) | 0 °C |
| Montaje en carril posible (EF003972) | No |
| Montaje en pared/directo posible (EF007020) | No |
| Apto para funciones de seguridad (EF001597) | No |
| Ancho del frente (EF003651) | 210 mm |
| Altura del frente (EF003652) | 135 mm |
| Profundidad de instalación (EF000218) | 33 mm |
Datasheet - PDF
▲| Título: | Tamaño: | Tipo: |
|---|---|---|
| PDF CATALOGO EATON AUTOMATIZACION ES.pdf | 19 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| XV-102-E6-70TWRC-10 Y7-153527 153527 FR_140017.pdf | 2 Mbytes |
|
Opiniones: (0) ▲
Ningún comentario por el momento.
Añadir comentario
ocultar
| Valoración: |
|
| Nombre: | |
| Email: | |
| Título: | |
| Opinión: | |
| ¿Recomienda la compra de este producto? | |
|
|
|
| Añadir comentario | |
Todas las valoraciones que recibimos de los artículos que ofrecemos son reales y están verificadas. Un pequeño gesto, pero de mucho valor. Por eso, te agradecemos ese minuto que inviertes en dejarnos tu opinión y calificación sobre los productos, porque nos ayuda a seguir mejorando y a ofrecerte un servicio de todavía mayor calidad.
