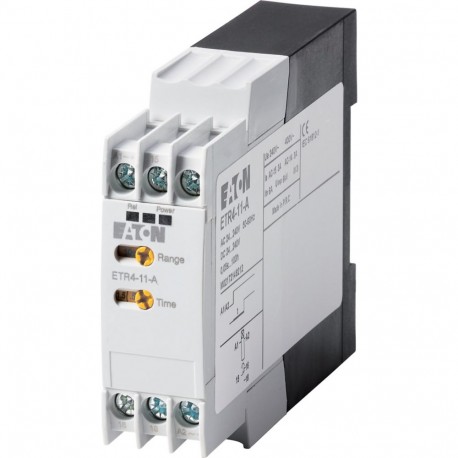

ETR4-11-A 031882 Y7-31882 EATON ELECTRIC Relé temporizador 1 W 0.05 s-100 h 24-240 V 50/60 Hz 24-240 V DC
ETR4-11-A
031882
Y7-31882
EATON-MOELLER
Relé temporizador, 1 W, 0.05 s-100 h, 24-240 V 50/60 Hz, 24-240 V DC,
Eaton Moeller® series ETR4 Timing relay, 1W, 0.05s-100h, 24-240V50/60Hz, 24-240VDC, on-delayed
Relé de temporización electrónico según IEC/EN 61812-1, VDE 0435, 22,5 mm de ancho, rango de tiempo 0,05s-100h, vida útil mecánica 30 * 106, montaje en riel de sombrero de copa DIN, cualquier posición de montaje requerida, 24-240VAC/DC, retardado, factor de forma industrial
Relés > Relé temporizador
Relés temporizadores (KETR, KEMR, KESR)
Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER
Comprados juntos habitualmente
▲Más vendidos
▲Más Información
▲Especificaciones generales
Product Name
Eaton Moeller® series ETR4 Timing relay
Catalog Number
031882
EAN
4015080318828
Product Length/Depth
103 mm
Product Height
82 mm
Product Width
23 mm
Product Weight
0.109 kg
Certifications
UL File No.: E29184
Standard IEC/EN 61812
CSA
CSA-22.2 No. 14
UL
VDE 0435
CE
CSA Class No.: 3211-03
UL Category Control No.: NKCR
CSA File No.: 012528
IEC/EN 61000-4-2
UL 508
IEC/EN 60947-5-1
IEC/EN 61000-4-3
IEC/EN 61812-1
Standard IEC/EN 61812
CSA
CSA-22.2 No. 14
UL
VDE 0435
CE
CSA Class No.: 3211-03
UL Category Control No.: NKCR
CSA File No.: 012528
IEC/EN 61000-4-2
UL 508
IEC/EN 60947-5-1
IEC/EN 61000-4-3
IEC/EN 61812-1
Model Code
ETR4-11-A
Características y Funciones
Electric connection type
Screw connection
Functions
Fixed timing function
On-delayed
Delay-on energization
On-delayed
Delay-on energization
General
Degree of protection
Terminals: IP20
IP20
IP20
Lifespan, mechanical
30,000,000 Operations (DC operated)
30,000,000 Operations (AC operated)
30,000,000 Operations (AC operated)
Mounting position
As required
Number of contacts (change-over contacts)
1
Overvoltage category
III
Pollution degree
2
Product category
ETR4 timing relays
Rated impulse withstand voltage (Uimp)
6000 V AC
4000 V AC
4000 V AC
Shock resistance
4 g, Make contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 20 ms
Suitable for
DIN rail (top hat rail) mounting
Terminal capacity
2 x (0.5 - 1.5) mm², flexible with ferrule
1 x (20 - 14) AWG, solid or stranded
2 x (0.5 - 1.5) mm², solid
1 x (0.5 - 2.5) mm², solid
1 x (0.5 - 2.5) mm², flexible with ferrule
1 x (20 - 14) AWG, solid or stranded
2 x (0.5 - 1.5) mm², solid
1 x (0.5 - 2.5) mm², solid
1 x (0.5 - 2.5) mm², flexible with ferrule
Time range - min
0.05 s
Time range - max
360000 s
Type
Timer relay
Voltage type
AC/DC
Condiciones climáticas ambientales
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
60 °C
Ambient operating temperature (enclosed) - min
25 °C
Ambient operating temperature (enclosed) - max
45 °C
Ambient storage temperature - min
45 °C
Ambient storage temperature - max
85 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, cyclic, to IEC 60068-2-30
Compatibilidad electromagnética
Air discharge
8 kV
Burst impulse
1 kV, Signal cable
According to IEC/EN 61000-4-4
2 kV, Supply cable
According to IEC/EN 61000-4-4
2 kV, Supply cable
Contact discharge
6 kV
Electromagnetic fields
10 V/m at 80 - 1000 MHz (according to IEC EN 61000-4-3)
1 V/m at 2.0 - 2.7 GHz (according to IEC EN 61000-4-3)
3 V/m at 1.4 - 2 GHz (according to IEC EN 61000-4-3)
1 V/m at 2.0 - 2.7 GHz (according to IEC EN 61000-4-3)
3 V/m at 1.4 - 2 GHz (according to IEC EN 61000-4-3)
Immunity to line-conducted interference
10 V (according to IEC/EN 61000-4-6)
Radio interference class
Class B (EN 55011, conducted)
Class B (EN 55011, radiated)
Class B (EN 55011, radiated)
Surge rating
4 kV, asymmetrical, power pulses (Surge), EMC
According to IEC/EN 61000-4-5, power pulses (Surge), EMC
2 kV, symmetrical, power pulses (Surge), EMC
According to IEC/EN 61000-4-5, power pulses (Surge), EMC
2 kV, symmetrical, power pulses (Surge), EMC
Especificaciones eléctricas
Conventional thermal current ith of auxiliary contacts (1-pole, open)
6 A
Mains voltage tolerance
24 - 240 V AC (at 50/60 Hz)
24 – 240 V DC
24 – 240 V DC
Nominal current
3 A
Rated breaking capacity
3 A at AC-14 (cos ϕ = 0.3 440 V)
1.1 x Iₑ (DC-11 L/R - 40 ms)
3 A at AC-15 (cos ϕ = 0.3 220 V)
1.1 x Iₑ (DC-11 L/R - 40 ms)
3 A at AC-15 (cos ϕ = 0.3 220 V)
Rated frequency - min
47 Hz
Rated frequency - max
63 Hz
Rated making capacity
1.1 x Iₑ (DC-11 L/R - 40 ms)
50 A (AC-15 cos ϕ = 0.3 220 V)
48 A (AC-14 cos ϕ = 0.3 400 V)
50 A (AC-15 cos ϕ = 0.3 220 V)
48 A (AC-14 cos ϕ = 0.3 400 V)
Rated operational current (Ie)
3 A at AC-14, 440 V
3 A at AC-14, 380 V 400 V 415 V
1.5 A at DC-11, 24 V
3 A at AC-15, 380 V 400 V 415 V
1.2 A at DC-11, L/R max. 50 ms
3 A at AC-15, 300 V
3 A at AC-15, 220 V 230 V 240 V
3 A at AC-14, 300 V (NC)
3 A at AC-14, 380 V 400 V 415 V
1.5 A at DC-11, 24 V
3 A at AC-15, 380 V 400 V 415 V
1.2 A at DC-11, L/R max. 50 ms
3 A at AC-15, 300 V
3 A at AC-15, 220 V 230 V 240 V
3 A at AC-14, 300 V (NC)
Rated operational voltage (Ue) at AC - min
24 V
Rated operational voltage (Ue) at AC - max
440 V
Rated operational voltage (Ue) at DC - min
24 V
Rated operational voltage (Ue) at DC - max
240 V
Safe isolation
250 V AC, Between auxiliary contacts, According to EN 61140
250 V AC, Between coil and auxiliary contacts, According to EN 61140
250 V AC, Between coil and auxiliary contacts, According to EN 61140
Short-circuit protection rating
Max. 6 A gG/gL, Fuse, Short-circuit rating without welding, Contacts
Max. 6 A gG/gL, fuse, Without welding, Contacts
Max. 6 A gG/gL, fuse, Without welding, Contacts
Sistema magnético
Command time
50 ms, AC
30 ms, DC
30 ms, DC
Contact changeover time
4 ms
Duty factor
100 %
Operating frequency
4000 Operations/h
Pick-up voltage
0.85 - 1.1 V AC x Uc
0.7 - 1.1 V DC x Uc
0.7 - 1.1 V DC x Uc
Power consumption
2 VA at AC (Sealing power)
2 VA at AC (Pick-up power)
1.8 W at DC (Sealing power)
1.8 W at DC (Pick-up power)
2 VA at AC (Pick-up power)
1.8 W at DC (Sealing power)
1.8 W at DC (Pick-up power)
Rated control supply voltage (Us) at AC, 50 Hz - min
24 V
Rated control supply voltage (Us) at AC, 50 Hz - max
240 V
Rated control supply voltage (Us) at AC, 60 Hz - min
24 V
Rated control supply voltage (Us) at AC, 60 Hz - max
240 V
Rated control supply voltage (Us) at DC - min
24 V
Rated control supply voltage (Us) at DC - max
240 V
Recovery time
70 ms (after 100 % time delay)
Repetition accuracy
≤ 0.5 % (deviation)
Voltage tolerance
0.85 x Uc, AC operated min.
1.1 x Uc, DC operated max.
0.7 x Uc, DC operated min.
1.1 x Uc, AC operated max.
1.1 x Uc, DC operated max.
0.7 x Uc, DC operated min.
1.1 x Uc, AC operated max.
Verificación del diseño
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
1.4 W
Rated operational current for specified heat dissipation (In)
6 A
Static heat dissipation, non-current-dependent Pvs
1.8 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Característica | Valor |
|---|---|
| Ejecución de la conexión eléctrica (EF003961) | Conexión roscada |
| Dispositivo completo con zócalo (EF003359) | No |
| Apto para montaje en carril DIN (EF007250) | Sí |
| Montaje frontal (EF020288) | No |
| Conectable al contactor (EF006952) | No |
| Función de respuesta retrasada (EF003374) | Sí |
| Función de temporización de reposo (EF003401) | No |
| Función activada (EF003378) | No |
| Función de final de apagado (EF003402) | No |
| Función estrella-triángulo (EF003380) | No |
| Función de conformación de impulsos (EF003403) | No |
| Función intermitente comenzando con pausa, tiempo fijo (EF003363) | No |
| Función intermitente comenzando con pulso, tiempo fijo (EF003364) | No |
| Función de reloj con pausa inicial, variable (EF003365) | No |
| Función de reloj comenzando con pulso, variable (EF003366) | No |
| Intervalo de tiempo (EF003384) | 0.05 s |
| Posibilidad de operación remota (EF003361) | No |
| Adecuado como control remoto (EF003362) | No |
| Voltaje nominal de suministro piloto piloto para CA 50 Hz (EF003978) | 24 V |
| Voltaje nominal de suministro piloto piloto para CA 60 Hz (EF003979) | 24 V |
| Voltaje nominal de suministro piloto de piloto para CC (EF003980) | 24 V |
| Tipo de tensión de accionamiento (EF008242) | CA/CC |
| Número de salidas, instantáneas, normalmente cerradas (EF006835) | 0 |
| Número de salidas, instantáneas, normalmente abiertas (EF006836) | 0 |
| Número de salidas sin retardo, inversor (EF006837) | 0 |
| Número de salidas, retardadas, normalmente cerradas (EF006838) | 0 |
| Número de salidas, retardadas, normalmente abiertas (EF006839) | 0 |
| Número de salidas, retardadas, cambiador (EF006840) | 1 |
| Salidas, conmutables retardadas/no retardadas (EF006988) | No |
| Con salida de semiconductor (EF003373) | No |
| Voltaje de funcionamiento a 50 Hz CA (EF008206) | 24 V |
| Voltaje de funcionamiento a 60 Hz CA (EF008207) | 24 V |
| Voltaje de funcionamiento en CC (EF008208) | 24 V |
| Tipo de tensión de funcionamiento (EF005294) | CA/CC |
| Intensidad nominal (EF000001) | 3 A |
| Grado de protección (IP) (EF005474) | IP20 |
| Anchura (EF000008) | 23 mm |
| Altura (EF000040) | 82 mm |
| Profundidad (EF000049) | 103 mm |
Datasheet - PDF
▲| Título: | Tamaño: | Tipo: |
|---|---|---|
| PDF CATALOGO EATON AUTOMATIZACION ES.pdf | 19 Mbytes |
|
| PDF CATALOGO EATON CONTROL Y AUTOMATIZACION ES.pdf | 9 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| ETR4-11-A Y7-31882 031882 ES_031882.pdf | 3 Mbytes |
|
Opiniones: (0) ▲
Ningún comentario por el momento.
Añadir comentario
ocultar
| Valoración: |
|
| Nombre: | |
| Email: | |
| Título: | |
| Opinión: | |
| ¿Recomienda la compra de este producto? | |
|
|
|
| Añadir comentario | |
Todas las valoraciones que recibimos de los artículos que ofrecemos son reales y están verificadas. Un pequeño gesto, pero de mucho valor. Por eso, te agradecemos ese minuto que inviertes en dejarnos tu opinión y calificación sobre los productos, porque nos ayuda a seguir mejorando y a ofrecerte un servicio de todavía mayor calidad.
