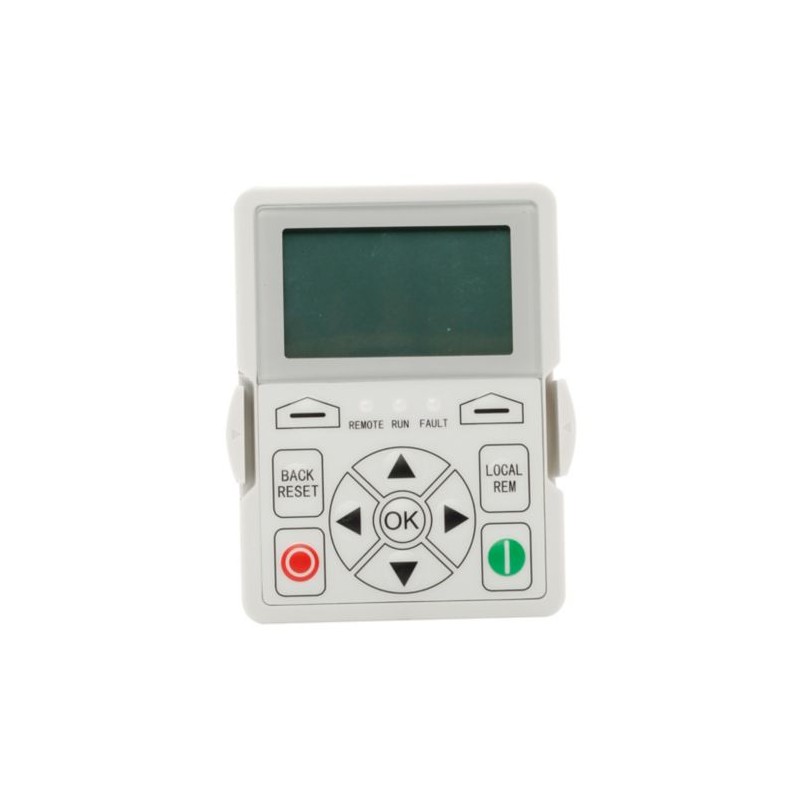

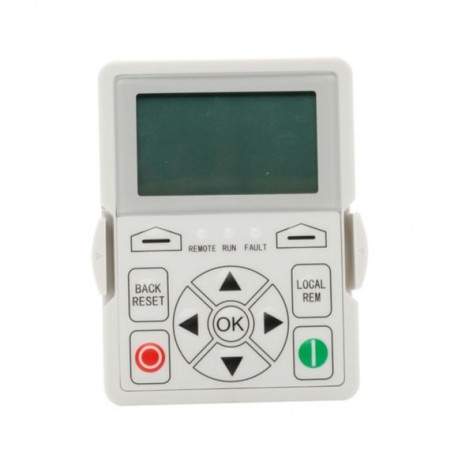

DXG-KEY-LCD 730-32047-00P Y7-730-32047-00P EATON ELECTRIC Teclado externo LCD Para convertidor DG1 Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

DXG-KEY-LCD 730-32047-00P Y7-730-32047-00P EATON ELECTRIC Teclado externo LCD Para convertidor DG1

DXG-KEY-LCD

7303204700P

Y7-730-32047-00P

EATON-MOELLER

Teclado externo LCD, Para convertidor DG1

Eaton DG1 LCD control unit for DG1 variable frequency drives

Más detalles


Convertidores de Frecuencia Power XL

Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER

Precio total: $99.77
Precio unitario: $99.77
Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Si nuestro precio no es el mejor solicítenos presupuesto Solicitar presupuesto

Más vendidos

▲

Más Información

▲


Especificaciones generales

Product Name
Eaton DXG Keypad
Catalog Number
730-32047-00P
EAN
4015081721788
Product Length/Depth
45 mm
Product Height
130 mm
Product Width
105 mm
Product Weight
0.104 kg
Compliances
CE
Model Code
DXG-KEY-LCD

Product specifications

Product Category
Accessories
Features
Multilingual
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Fitted with:
LCD display
Used with
DG1
DM1
Accessory/spare part type
Other
Ambient operating temperature - max
50 °C
Ambient operating temperature - min
-10 °C
Degree of protection (front side)
IP54

Datasheet - PDF

▲
Título: Tamaño: Tipo:
PDF CATALOGO EATON CONTROL Y AUTOMATIZACION ES.pdf 9 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
DXG-KEY-LCD Y7-730-32047-00P 7303204700P FR_730-32034-00P.pdf 4 Mbytes DXG-KEY-LCD Y7-730-32047-00P 7303204700P FR_730-32034-00P.pdf
