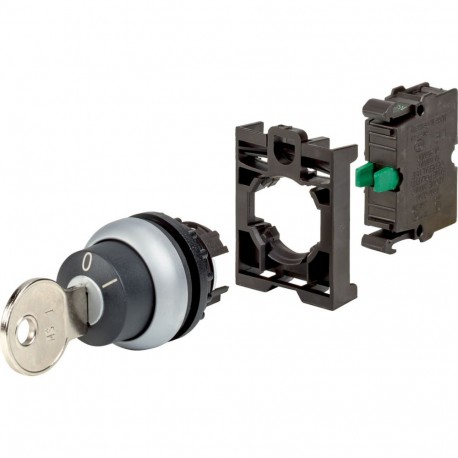

M22-WRS-K10-BVP 110917 M22-WRS-K10-BVPQ EATON ELECTRIC Selector de llave completo Enclavamiento 2 posiciones.. Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

M22-WRS-K10-BVP 110917 M22-WRS-K10-BVPQ EATON ELECTRIC Selector de llave completo Enclavamiento 2 posiciones..

M22-WRS-K10-BVP

110917

M22-WRS-K10-BVPQ

EATON-MOELLER

Selector de llave completo; Enclavamiento; 2 posiciones; Llave MS1; 1 NO; Blister Package; Anillo Titanio

Selector de llave completo Enclavamiento 2 posiciones Llave MS1 1 NO

Eaton Moeller® series M22 Key-operated actuator, RMQ-Titan, maintained, 2 positions, 1 NO, Blister pack for hanging

Más detalles


Interruptores de baja tensión > Elemento frontal para interruptor selector

Auxiliares de mando y señalización

* Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER

Precio total: $47.26
Precio unitario: $47.26

Cantidad Precio
1+$47.26
2+$46.12
4+$39.82
6+$37.26
8+$36.24
*Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Si nuestro precio no es el mejor solicítenos presupuesto Solicitar presupuesto

Comprados juntos habitualmente

▲

Más Información

▲


Especificaciones generales

Product Name
Eaton Moeller® series M22 Key-operated actuator
Catalog Number
110917
EAN
4015081104468
Product Length/Depth
50 mm
Product Height
80 mm
Product Width
50 mm
Product Weight
0.053 kg
Compliances
CE
Model Code
M22-WRS-K10-BVP

Features & Functions

Bezel color
Titanium
Bezel material
Plastic
Fitted with:
Front ring

General

Degree of protection
NEMA 4X
Degree of protection (front side)
IP66
Opening diameter
22.5 mm
Product category
RMQ-Titan
Product category
RMQ-Titan

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C

Communication

Connection to SmartWire-DT
No

Actuator

Actuator color
Black
Actuator function
Switching function latching
Actuator type
Key
Number of switch positions
2

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0.11 W
Rated operational current for specified heat dissipation (In)
6 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

Datasheet - PDF

▲
Título: Tamaño: Tipo:
PDF CATALOGO EATON CONTROL Y AUTOMATIZACION ES.pdf 9 Mbytes
M22-WRS-K10-BVP M22-WRS-K10-BVPQ 110917 EN_289241.pdf 3 Mbytes M22-WRS-K10-BVP M22-WRS-K10-BVPQ 110917 EN_289241.pdf
