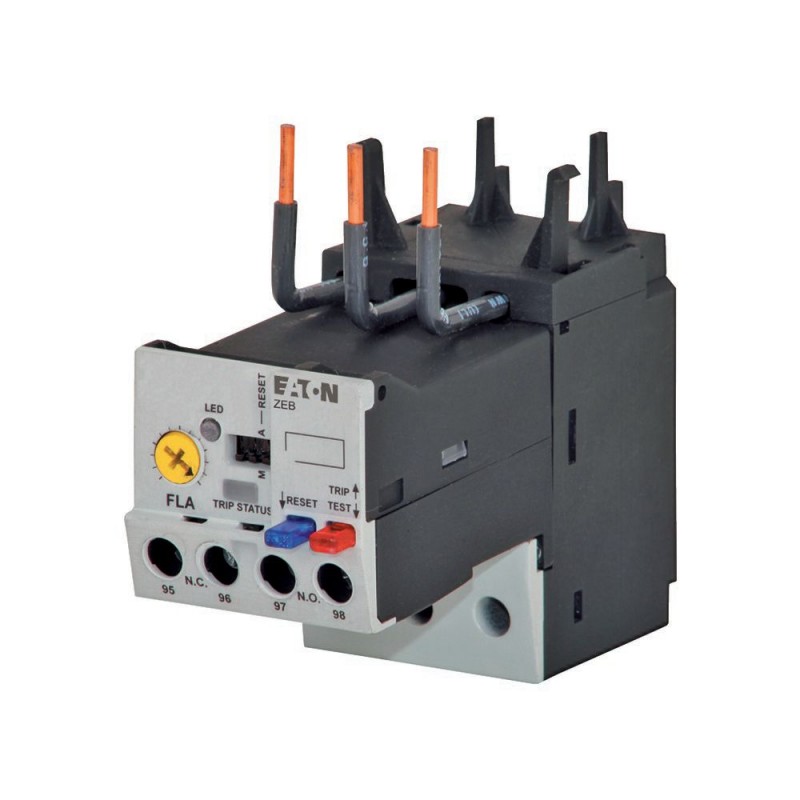

ZEB32-5 136487 Y7-136487 EATON ELECTRIC Relé térmico electrónico 1 NO + 1 NC 1-5 A
ZEB32-5
136487
Y7-136487
EATON-MOELLER
Relé térmico electrónico, 1 NO + 1 NC, 1-5 A
Eaton Moeller® series ZEB Overload relay, Direct mounting, Earth-fault protection: none, Ir= 1 - 5 A, 1 N/O, 1 N/C ZEB32-5
Relé de sobrecarga, Gama de productos: Relés de sobrecarga electrónicos ZEB, Sensibilidad a fallos de fase: IEC/EN 60947, VDE 0660 Parte 102, Descripción: Botón de prueba/desconexión, Pulsador de reinicio, Rearme manual/automático seleccionable, Protección con servicio de arranque pesado (Clase 10A-30), Tipo de montaje: Montaje directo, Contactos auxiliares N/O = Normalmente abiertos: 1 N/A, Contactos auxiliares N/C = Normalmente cerrados: 1 N/C, Para uso con: DILM17, DILM25, DILM32, DILM38, DIULM17, DIULM25, DIULM32, SDAINLM30, SDAINLM45, SDAINLM55, Normas: IEC/EN 60947, VDE 0660, UL, CSA, Grado de protección: IP20
Componentes industriales de baja tensión > Relé de sobrecarga electrónico
Interruptores Protectores de Motor Electrónicos
Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER
productos relacionados
▲Más vendidos
▲Más Información
▲Especificaciones generales
Product Name
Eaton Moeller® series ZEB Electronic overload relay
Catalog Number
136487
EAN
4015081332670
Product Length/Depth
108 mm
Product Height
110 mm
Product Width
45 mm
Product Weight
0.245 kg
Certifications
UL Category Control No.: NKCR
CSA Class No.: 3211-03
IEC/EN 60947
UL File No.: E1230
UL 508
CSA-C22.2 No. 14
UL
CE
IEC/EN 60947-4-1
VDE 0660
CSA
CSA File No.: 2290956
CSA Class No.: 3211-03
IEC/EN 60947
UL File No.: E1230
UL 508
CSA-C22.2 No. 14
UL
CE
IEC/EN 60947-4-1
VDE 0660
CSA
CSA File No.: 2290956
Catalog Notes
Rated operational current: Switch-on and switch-off conditions based on DC-13, time constant as specified.
Model Code
ZEB32-5
Características y Funciones
Earth fault protection
None
Features
Phase-failure sensitivity (according to IEC/EN 60947, VDE 0660 Part 102)
Functions
Filament bulb (24 V)
General
Class
Adjustable
Degree of protection
IP20
Mounting method
Direct mounting
Direct attachment
Direct attachment
Overload release current setting - min
1 A
Overload release current setting - max
5 A
Overvoltage category
III
Pollution degree
3
Product Category
Electronic overload relays ZEB
Protection
Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)
Rated impulse withstand voltage (Uimp)
6000 V AC
6000 V (auxiliary circuits)
6000 V (auxiliary circuits)
Shock resistance
15 g, Mechanical, According to IEC/EN 60068-2-27, Shock duration 10 ms
Mechanical, According to IEC/EN 60068-2-27
Mechanical, According to IEC/EN 60068-2-27
Suitable for
Branch circuits, (UL/CSA)
Voltage type
Self powered
Condiciones climáticas ambientales
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
65 °C
Ambient operating temperature (enclosed) - max
65 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, cyclic, to IEC 60068-2-30
Secciones de conexión
Terminal capacity (flexible with ferrule)
2 x (0.75 - 2.5) mm², Control circuit cables
Terminal capacity (solid)
1 x (1.5 - 16) mm², Main cables
2 x (0.75 - 4) mm², Control circuit cables
2 x (0.75 - 4) mm², Control circuit cables
Terminal capacity (solid/stranded AWG)
1 x (14 - 4), Main cables
2 x (18 - 12), Control circuit cables
2 x (18 - 12), Control circuit cables
Stripping length (main cable)
13 mm
Stripping length (control circuit cable)
8 mm
Screw size
M3.5, Terminal screw, Control circuit cables
Screwdriver size
2, Terminal screw, Pozidriv screwdriver
1 x 6 mm, Terminal screw, Standard screwdriver
1 x 6 mm, Terminal screw, Standard screwdriver
Tightening torque
7 lb-in, Screw terminals
0.8 - 1.2 Nm, Screw terminals, Control circuit cables
0.8 - 1.2 Nm, Screw terminals, Control circuit cables
Especificaciones eléctricas
Conventional thermal current ith of auxiliary contacts (1-pole, open)
5 A
Rated control supply voltage (Us) at AC, 50 Hz - min
0 V
Rated control supply voltage (Us) at AC, 50 Hz - max
0 V
Rated control supply voltage (Us) at AC, 60 Hz - min
0 V
Rated control supply voltage (Us) at AC, 60 Hz - max
0 V
Rated control supply voltage (Us) at DC - min
0 V
Rated control supply voltage (Us) at DC - max
0 V
Rated frequency - min
50 Hz
Rated frequency - max
60 Hz
Rated operational current (Ie) at AC-15, 120 V
1.5 A
Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V
1.5 A
Rated operational current (Ie) at AC-15, 380 V, 400 V, 415 V
0.9 A
Rated operational current (Ie) at DC-13, 110 V
0.4 A
Rated operational current (Ie) at DC-13, 220 V, 230 V
0.2 A
Rated operational current (Ie) at DC-13, 24 V
0.9 A
Rated operational current (Ie) at DC-13, 60 V
0.75 A
Rated operational voltage (Ue) at AC - max
690 V
Short-circuit protection rating
Max. 6 A gG/gL, fuse, Without welding, Auxiliary and control circuits
Short-circuit current rating (high fault at 600 V)
20 A, Class J, max. Fuse, SCCR (UL/CSA)
100 kA, Fuse, SCCR (UL/CSA)
100 kA, Fuse, SCCR (UL/CSA)
Switching capacity (auxiliary contacts, pilot duty)
R300, DC operated (UL/CSA)
B600, AC operated (UL/CSA)
B600, AC operated (UL/CSA)
Voltage rating - max
600 V
Contactos
Number of auxiliary contacts (change-over contacts)
0
Number of auxiliary contacts (normally closed contacts)
1
Number of auxiliary contacts (normally open contacts)
1
Number of contacts (normally closed contacts)
1
Number of contacts (normally open contacts)
1
Verificación del diseño
Equipment heat dissipation, current-dependent Pvid
0.5 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0.17 W
Rated operational current for specified heat dissipation (In)
5 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Sólo ETIM
Electrical connection type of main circuit
Screw connection
Adjustable current range - min
1 A
Adjustable current range - max
5 A
Reset function
Automatic
Push-button
Push-button
| Característica | Valor |
|---|---|
| Método de montaje (EF000003) | Acoplamiento directo |
| Tipo de conexión del circuito de corriente principal (EF006819) | Conexión roscada |
| Rango de corriente ajustable (EF008211) | 1 A |
| Alimentación externa requerida (EF003292) | No |
| Voltaje nominal de suministro piloto piloto para CA 50 Hz (EF003978) | 0 V |
| Voltaje nominal de suministro piloto piloto para CA 60 Hz (EF003979) | 0 V |
| Voltaje nominal de suministro piloto de piloto para CC (EF003980) | 0 V |
| Número de contactos auxiliares normalmente cerrados (EF001377) | 1 |
| Número de contactos auxiliares normalmente abiertos (EF001376) | 1 |
| Número de contactos auxiliares como contacto de cambio (EF003531) | 0 |
| Tipo de tensión de funcionamiento (EF005294) | CA |
| Voltaje de funcionamiento a 50 Hz CA (EF008206) | 230 V |
| Voltaje de funcionamiento a 60 Hz CA (EF008207) | 230 V |
| Voltaje de funcionamiento en CC (EF008208) | 0 V |
| Clase de disparo (EF006668) | Regulable |
| Función reset automática (EF011941) | Sí |
| Función reset entrada (EF011940) | No |
| Función reset pulsador (EF011942) | Sí |
| Anchura (EF000008) | 45 mm |
| Altura (EF000040) | 110 mm |
| Profundidad (EF000049) | 108 mm |
Datasheet - PDF
▲| Título: | Tamaño: | Tipo: |
|---|---|---|
| PDF CATALOGO EATON CONTROL Y AUTOMATIZACION ES.pdf | 9 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| ZEB32-5 Y7-136487 136487 ES_136480.pdf | 463 Kbytes |
|
