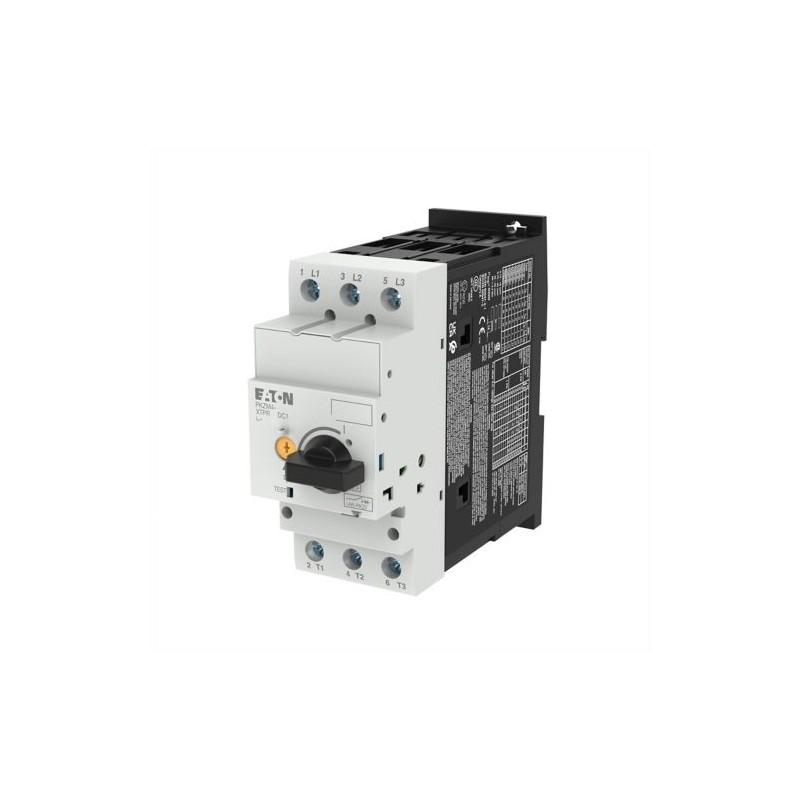

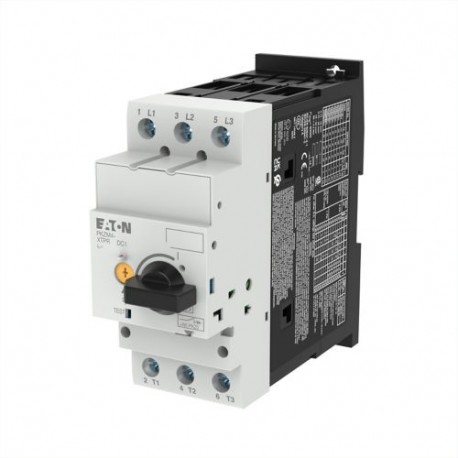

PKZM4-40 222354 Y7-222354 EATON ELECTRIC Interruptor protector de motor 3 polos Ir 32-40 A Conexión a
PKZM4-40
222354
Y7-222354
EATON-MOELLER
Interruptor protector de motor, 3 polos, Ir = 32-40 A, Conexión a
Eaton Moeller® series PKZM4 Motor-protective circuit-breaker, Ir= 32 - 40 A, Screw terminals, Terminations: IP00 PKZM4-40
Disyuntor de protección del motor según IEC/EN60947, tamaño de 3 polos PKZM4, con sobrecarga ajustable y desbloqueo de cortocircuito no retardado, sensible a fallos de fase, ajuste de tornillo y a presión, tensión nominal de funcionamiento Ue 690V, grado de protección IP20, a prueba de dedos según VDE 0106 T. 100, accesorios: contacto auxiliar, liberación de tensión
Componentes industriales de baja tensión > Disyuntor de protección del motor
Interruptores Protectores de Motor
Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER
productos relacionados
▲Comprados juntos habitualmente
▲Más vendidos
▲Más Información
▲Especificaciones generales
Product Name
Eaton Moeller® series PKZM4 Motor-protective circuit-breaker
Catalog Number
222354
EAN
4015082223540
Product Length/Depth
160 mm
Product Height
140 mm
Product Width
55 mm
Product Weight
1.136 kg
Certifications
CSA File No.: 165628
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947-4-1
UL 60947-4-1
CE
CSA
CSA Class No.: 3211-05
UL Category Control No.: NLRV
UL File No.: E36332
VDE 0660
IEC/EN 60947
UL
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947-4-1
UL 60947-4-1
CE
CSA
CSA Class No.: 3211-05
UL Category Control No.: NLRV
UL File No.: E36332
VDE 0660
IEC/EN 60947
UL
Model Code
PKZM4-40
Características y Funciones
Actuator type
Turn button
Features
Phase-failure sensitivity (according to IEC/EN 60947-4-1, VDE 0660 Part 102)
Functions
Motor protection
Phase failure sensitive
Phase failure sensitive
Number of poles
Three-pole
General
Connection
Screw terminals
Explosion safety category for dust
ATEX dust-ex-protection, PTB 10, ATEX 3012, Ex II(2) G
Lifespan, electrical
30,000 operations (at 400V, AC-3)
Lifespan, mechanical
30,000 Operations (Main conducting paths)
Mounting position
Can be snapped on to IEC/EN 60715 top-hat rail with 7.5 or 15 mm height.
Operating frequency
40 Operations/h
Overvoltage category
III
Pollution degree
3
Product category
Motor protective circuit breaker
Protection
Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)
Rated impulse withstand voltage (Uimp)
6000 V AC
Shock resistance
15 g, Mechanical, According to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms
Suitable for
Branch circuit: Manual type E if used with terminal, or suitable for group installations, (UL/CSA)
Also motors with efficiency class IE3
Also motors with efficiency class IE3
Temperature compensation
-5 - 40 °C to IEC/EN 60947, VDE 0660
-25 - 55 °C, Operating range
≤ 0.25 %/K, residual error for T > 40°
-25 - 55 °C, Operating range
≤ 0.25 %/K, residual error for T > 40°
Condiciones climáticas ambientales
Altitude
Max. 2000 m
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C
Ambient operating temperature (enclosed) - min
-25 °C
Ambient operating temperature (enclosed) - max
40 °C
Ambient storage temperature - min
-40 °C
Ambient storage temperature - max
80 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78
Damp heat, constant, to IEC 60068-2-78
Secciones de conexión
Terminal capacity (solid)
1 x (0.75 - 16) mm², Main cables
2 x (0.75 - 16) mm²
2 x (0.75 - 16) mm²
Terminal capacity (solid/stranded AWG)
14 - 2
Stripping length (main cable)
14 mm
Tightening torque
3.3 Nm, Screw terminals, Main cable
Especificaciones eléctricas
Rated frequency - min
50 Hz
Rated frequency - max
60 Hz
Rated operational current (Ie)
40 A
Rated operational power at AC-3, 220/230 V, 50 Hz
11 kW
Rated operational power at AC-3, 380/400 V, 50 Hz
20 kW
Rated operational voltage (Ue) - min
690 V
Rated operational voltage (Ue) - max
690 V
Rated uninterrupted current (Iu)
40 A
Clasificación de cortocircuito
Short-circuit current
60 kA DC, up to 250 V DC, Main conducting paths
Short-circuit current rating (group protection)
600 A, 600 V High Fault, max. CB, SCCR (UL/CSA)
600 A, 600 V High Fault, max. Fuse, SCCR (UL/CSA)
42 kA, 600 V High Fault, CB, SCCR (UL/CSA)
42 kA, 600 V High Fault, Fuse, SCCR (UL/CSA)
600 A, 600 V High Fault, max. Fuse, SCCR (UL/CSA)
42 kA, 600 V High Fault, CB, SCCR (UL/CSA)
42 kA, 600 V High Fault, Fuse, SCCR (UL/CSA)
Short-circuit current rating (type E)
Accessories required BK50/3-PKZ4-E
65 kA, 480 Y/277 V, SCCR (UL/CSA)
25 kA, 600 Y/347 V, SCCR (UL/CSA)
65 kA, 240 V, SCCR (UL/CSA)
65 kA, 480 Y/277 V, SCCR (UL/CSA)
25 kA, 600 Y/347 V, SCCR (UL/CSA)
65 kA, 240 V, SCCR (UL/CSA)
Short-circuit release
± 20% tolerance, Trip blocks
620 A, Irm, Setting range max.
Basic device fixed 15.5 x Iu, Trip Blocks
620 A, Irm, Setting range max.
Basic device fixed 15.5 x Iu, Trip Blocks
Rated short-circuit breaking capacity Icu at 400 V AC
50 kA
Potencia asignada de motor
Assigned motor power at 115/120 V, 60 Hz, 1-phase
3 HP
Assigned motor power at 200/208 V, 60 Hz, 3-phase
10 HP
Assigned motor power at 230/240 V, 60 Hz, 1-phase
7.5 HP
Assigned motor power at 460/480 V, 60 Hz, 3-phase
30 HP
Assigned motor power at 575/600 V, 60 Hz, 3-phase
30 HP
Bloque de disparo
Overload release current setting - min
32 A
Overload release current setting - max
40 A
Tripping characteristic
Overload trigger: tripping class 10 A
Verificación del diseño
Equipment heat dissipation, current-dependent Pvid
20.7 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
6.9 W
Rated operational current for specified heat dissipation (In)
40 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Característica | Valor |
|---|---|
| Ajuste actual de liberación de sobrecarga (EF002336) | 32 A |
| Rango de ajuste de liberación instantánea de cortocircuito (EF007131) | 620 A |
| Con protección de sobrecarga térmica (EF006233) | No |
| Sensible a fallo de fase (EF007400) | Sí |
| Técnica de liberación (EF007007) | Termomagnético |
| Tensión nominal de funcionamiento (EF001435) | 690 V |
| Intensidad nominal permanente Iu (EF001389) | 40 A |
| Potencia de funcionamiento nominal a 230 V CA-3 (EF007025) | 11 kW |
| Potencia de funcionamiento nominal en CA-3, 400 V (EF001364) | 20 kW |
| Pérdida de potencia (EF005387) | 20.7 W |
| Tipo de conexión del circuito de corriente principal (EF006819) | Conexión roscada |
| Ejecución del elemento accionador (EF006976) | Botón giratorio (mando) |
| Construcción del dispositivo (EF008240) | Técnica integrada fija para dispositivo integrado |
| Con interruptor auxiliar integrado (EF001387) | No |
| Con liberación de baja tensión integrada (EF001390) | No |
| Número de polos (EF001391) | 3 |
| Corriente límite nominal de cortocircuito en la corriente de corte a 400 V CA (EF007049) | 50 kA |
| Grado de protección (IP) (EF005474) | IP20 |
| Altura (EF000040) | 140 mm |
| Anchura (EF000008) | 55 mm |
| Profundidad (EF000049) | 160 mm |
Datasheet - PDF
▲| Título: | Tamaño: | Tipo: |
|---|---|---|
| PDF CATALOGO EATON CONTROL Y AUTOMATIZACION ES.pdf | 9 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| PKZM4-40 Y7-222354 222354 ES_222394.pdf | 1019 Kbytes |
|
