Product range | Accessories | ||
Accessories | Options / accessories trip blocks | ||

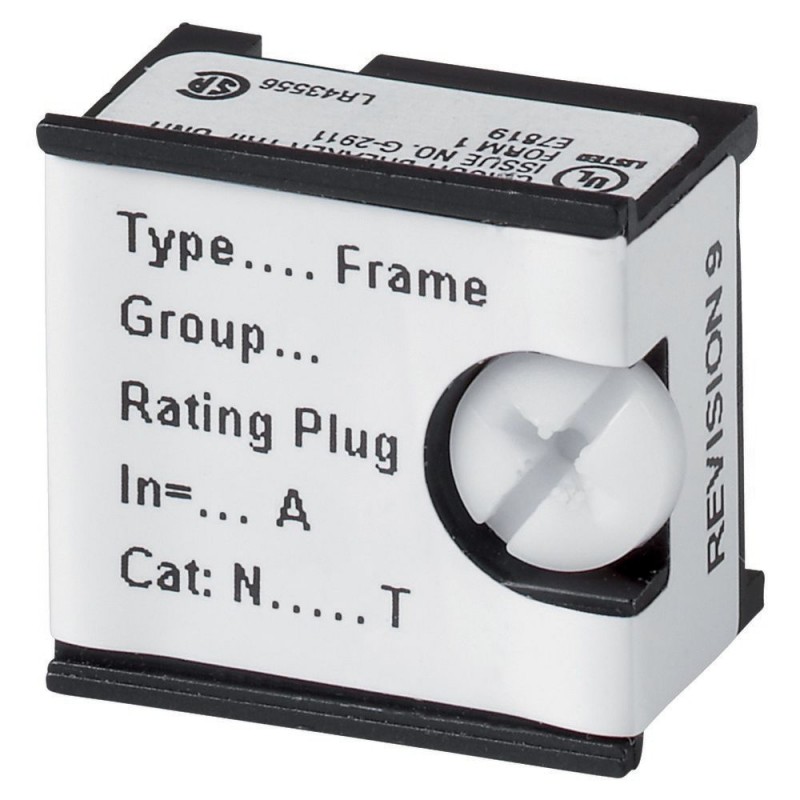

Accessories | Rating Plug (rate current module) | ||
The rated current can be reduced by changing the rating plug, for example, in order to adapt to changed conditions in the application. The rating plug’s nominal value must be less than or equal to the basic device’s rated current. The rating plug can be replaced on site without replacing the transformer. Rating plugs for 200 A to 500 A cannot be combined with P trip blocks for professional protection (Digitrip 1150i). | |||
Rated current | In | A | 250 |
Suitable for circuit-breaker Iu= | Iu | ||
Technical data for design verification | |||
Operating ambient temperature min. | °C | -25 | |
Operating ambient temperature max. | °C | 70 |
