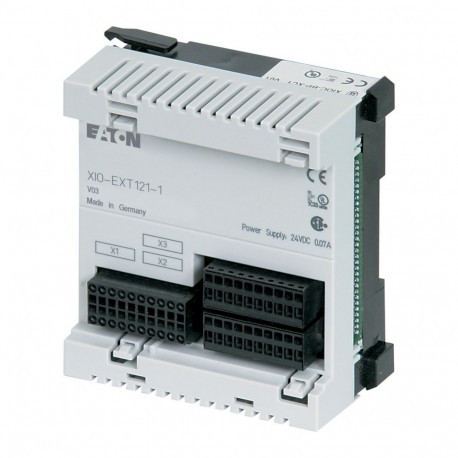

XIO-EXT121-1 290450 EATON ELECTRIC Módulo para XC100/200 Módulo de ampliación para XC121 10DI 8DI/DO 6AI 2AO
XIO-EXT121-1
290450
EATON-MOELLER
Módulo para XC100/200; Módulo de ampliación para XC121; 10DI; 8DI/DO; 6AI; 2AO
Módulo para XC100/200 Módulo de ampliación para XC121 10DI 8DI/DO
Eaton XIOC Expansion for compact PLC XC-CPU121, 10DI, 8DI/DO(T), 6AI, 2AO
Los controladores modulares programables XC100 y XC200 ofrecen un excelente nivel de escalabilidad. Están disponibles diferentes clases de rendimiento de CPU y una amplia gama de módulos de expansión (módulo XIOC). Los PLC modulares compactos XC152 facilitan soluciones rentables de tareas de automatización utilizando su potencia de cálculo, la interfaz SmartWire-DT, así como una amplia gama de interfaces adicionales. Una característica particular es la capacidad de integrar el producto en los conceptos de comunicación modernos. El intercambio de datos a través de la interfaz Ethernet a los clientes OPC o a los servidores WEB integrados permite la creación de soluciones innovadoras.
Controladores industriales (PLC) > Módulo de entradas/salidas analógicas/digitales de PLC
Autómatas Programables XC
Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER
Más vendidos
▲Más Información
▲Especificaciones generales
Product Name
Eaton XIOC Insulated enclosure
Catalog Number
290450
EAN
4015082904500
Product Length/Depth
100 mm
Product Height
100 mm
Product Width
60 mm
Product Weight
0.195 kg
Certifications
CE
UL File No.: E135462
EN 50178
UL
Shipping classification (DNV, GL, ABS, BV, LR)
CSA Class No.: 2252-01
CSA-C22.2 No. 142-M
UL/CSA
UL508
CSA File No.: 012528
IEC/EN 61131-2
CSA-C22.2 No. 0-M
UL Category Control No.: NRAQ
CSA
UL File No.: E135462
EN 50178
UL
Shipping classification (DNV, GL, ABS, BV, LR)
CSA Class No.: 2252-01
CSA-C22.2 No. 142-M
UL/CSA
UL508
CSA File No.: 012528
IEC/EN 61131-2
CSA-C22.2 No. 0-M
UL Category Control No.: NRAQ
CSA
Model Code
XIO-EXT121-1
Features & Functions
Electric connection type
Plug-in connection
Features
Analog input, current
Analog input, resistor temperature
Analog input, voltage
Analog output, voltage
Analog input, resistor temperature
Analog input, voltage
Analog output, voltage
Functions
Digital in-/outputs, configurable
Overvoltage protection
Overvoltage protection
General
Admissible range
20.4 - 28.8 V DC, Rated voltage for the digital outputs
Degree of protection
IP20
Duty factor
100 % (Digital outputs)
Operating frequency
40000 Operations/h at resistive load
Overvoltage category
II
Pollution degree
2
Repetition rate
1 s
Residual current
0.1 mA (on signal "1" per channel)
Residual ripple
5 % (digital outputs)
≤ 5 %
≤ 5 %
Resistance
10 kΩ (impedance)
18.5 - 175.8 Ω (Pt100)
18.5 - 175.8 Ω (Pt100)
Resolution
Voltage type
DC
Ambient conditions, mechanical
Mounting position
Horizontal
Shock resistance
15 g, Mechanical, Shock duration 11 ms
Vibration resistance
9 - 150 Hz, 1 g constant acceleration
5 - 9 Hz, Amplitude 3.5 mm
5 - 9 Hz, Amplitude 3.5 mm
Climatic environmental conditions
Air pressure
795 - 1080 hPa (operation)
Ambient operating temperature - min
0 °C
Ambient operating temperature - max
55 °C
Ambient storage temperature - min
-25 °C
Ambient storage temperature - max
70 °C
Operating temperature - min
-200 °C
Operating temperature - max
200 °C
Relative humidity
10 - 95 % (non-condensing)
Electro magnetic compatibility
Emitted interference
According to IEC/EN 61000-6-4
Interference immunity
According to EN 61000-6-2
Voltage dips
10 ms
Terminal capacities
Terminal capacity
0.5 - 1.0 mm², solid/stranded, Spring-loaded terminal block, 20-pole, B2L 3.5 (Weidmüller)
0.5 - 1.0 mm², solid, Spring-loaded terminal block, 10-pole, BLZF 3.5/180 or BLI/O 3.5/10F with LEDs (Weidmüller)
0.5 - 1.0 mm², solid, Spring-loaded terminal block, 10-pole, BLZF 3.5/180 or BLI/O 3.5/10F with LEDs (Weidmüller)
Terminals
Plug in spring-cage terminals
Electrical rating
Inrush current
Max. 1 A
Peak short-circuit current
32 A
Power consumption
Max. 1.68 W
Power loss
Max. 1.7 W
Rated insulation voltage (Ui)
500 V
Rated operational current (Ie)
0.5 A at 24 V AC (state "1")
3.3 mA (on signal "1")
3.3 mA (on signal "1")
Rated operational voltage
24 V DC
> 15 V DC on 1 signal
< 5 V DC on 0 signal
> 15 V DC on 1 signal
< 5 V DC on 0 signal
Short-circuit tripping current
0.7 ≤ Ie ≤ 2 per output, For Ra ≤ 10 mΩ, Digital outputs
16 A, Total, Digital outputs
16 A, Total, Digital outputs
Supply voltage at AC, 50 Hz - min
0 VAC
Supply voltage at AC, 50 Hz - max
0 VAC
Supply voltage at DC - min
20.4 VDC
Supply voltage at DC - max
28.8 VDC
Communication
Connection type
Spring-loaded terminal block, 20-pole, B2L 3.5 (Weidmüller), X1 plug
Spring-loaded terminal block, 10-pole, BLZF 3.5/180 or BLI/O 3.5/10F with LEDs (Weidmüller), X2/X3 plug
Spring-loaded terminal block, 10-pole, BLZF 3.5/180 or BLI/O 3.5/10F with LEDs (Weidmüller), X2/X3 plug
Input/Output
Accuracy
≤ ± 1 % (of end of scale), Analog inputs/Analog outputs
≤ ± 2 %, Pt 100
≤ ± 2 %, Pt 100
Conversions
5 ms
Delay time
Off 24 V → 0 V
20 µs, Digital inputs, On 0 V -> 24 V
20 ms, Digital inputs
250 µs, Digital inputs
20 µs, Digital inputs, On 0 V -> 24 V
20 ms, Digital inputs
250 µs, Digital inputs
Input
6 analog inputs (0 - 10V: 2, 0 - 20 mA: 2 or Pt100: 2)
8 additional digital inputs (can also be used as outputs)
10 digital inputs (6 can also be used as interrupts)
8 additional digital inputs (can also be used as outputs)
10 digital inputs (6 can also be used as interrupts)
Input current
70 mA
Input current at signal 1
0 mA
Input impedance
50 Ω
200 kΩ
200 kΩ
Input voltage
24 V DC (Power supply of local inputs/outputs)
24 V DC (Power supply)
0 - 10 V
24 V DC (Power supply)
0 - 10 V
Lamp load
5 W (without Rv per channel)
Number of inputs (analog)
2
Number of inputs (digital)
X3: 8 (can also be used as outputs)
X2: 9 with plug BLI/O 3.5/10F or 10 with plug BLZF 3.5/180
8
X2: 9 with plug BLI/O 3.5/10F or 10 with plug BLZF 3.5/180
8
Number of outputs (analog)
2
Number of outputs (digital)
8
Output
Parallel switching
8 Digital Outputs (also usable as inputs)
2 Analog Outputs (0 - 10 V)
8 Digital Outputs (also usable as inputs)
2 Analog Outputs (0 - 10 V)
Output current
2 A
Output voltage
U = Uₑ - 1 V (signal 1 at Iₑ = 0.5 A, transistor outputs)
Max. 2.5 V (at signal 0 at external load < 10 MΩ, transistor outputs)
0 - 10 V
Max. 2.5 V (at signal 0 at external load < 10 MΩ, transistor outputs)
0 - 10 V
Rapid counter inputs
With X3: 8 (can also be used as inputs)
Utilization factor
1
Safety
Explosion safety category for dust
None
Explosion safety category for gas
None
Potential isolation
Between Digital inputs: no
Digital outputs: no
X2 Interface: DI4 - DI9: no
Digital outputs: no
X2 Interface: DI4 - DI9: no
Protection against polarity reversal
Yes
Design verification
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
1.7 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Característica | Valor |
|---|---|
| Tensión de alimentación 50 Hz CA (EF007532) | 0 V |
| Tensión de alimentación 60 Hz CA (EF007533) | 0 V |
| Tensión de alimentación CC (EF007534) | 20.4 V |
| Tipo de tensión de alimentación (EF002991) | CC |
| Número de entradas digitales (EF001992) | 8 |
| Número de salidas digitales (EF001993) | 8 |
| Número de entradas analógicas (EF001994) | 2 |
| Número de salidas analógicas (EF001995) | 2 |
| Entradas/salidas digitales, configurables (EF006652) | Sí |
| Corriente de entrada en la señal 1 (EF001428) | 0 mA |
| Tensión de entrada permitida (EF007554) | 20.4 V |
| Tipo de corriente (entrada) (EF003033) | CC |
| Tipo de salida digital (EF003601) | Transistor |
| Corriente de salida en la salida digital (EF003218) | 0.5 A |
| Tensión de salida en la salida digital (EF003215) | 20.4 V |
| Tipo de corriente de salida (EF008222) | CC |
| Protección contra cortocircuitos, salidas digitales disponibles (EF003320) | No |
| Entrada analógica, corriente (EF003219) | Sí |
| Entrada analógica, tensión (EF003221) | Sí |
| Entrada analógica, resistencia (EF003222) | No |
| Entrada analógica, termómetro de resistencia (EF003224) | Sí |
| Entrada analógica, termopar (EF003225) | No |
| Resolución de las entradas analógicas (EF003575) | 10 Bit |
| Señal analógica de entrada configurable (EF003227) | No |
| Salida analógica, corriente (EF003234) | No |
| Salida analógica, tensión (EF003235) | Sí |
| Resolución de las salidas analógicas (EF003577) | 12 Bit |
| Señal de salida analógica configurable (EF003236) | No |
| Ejecución de la conexión eléctrica (EF003961) | Conexión enchufable |
| Tiempo de retardo con cambio de señal (EF002382) | 0 ms |
| Apto para funciones de seguridad (EF001597) | No |
| SIL según IEC 61508 (EF009889) | Ninguno |
| Nivel de rendimiento según EN ISO 13849-1 (EF007399) | Ninguno |
| Equipos asociados (Ex ia) (EF004141) | No |
| Equipos asociados (Ex ib) (EF004142) | No |
| Categoría de protección contra explosiones para gas (EF003997) | Ninguno |
| Categoría de protección contra explosiones para polvo (EF003998) | Ninguno |
| Anchura (EF000008) | 60 mm |
| Altura (EF000040) | 100 mm |
| Profundidad (EF000049) | 100 mm |
Datasheet - PDF
▲| Título: | Tamaño: | Tipo: |
|---|---|---|
| PDF CATALOGO EATON AUTOMATIZACION ES.pdf | 19 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| XIO-EXT121-1 290450 ES_290450.pdf | 1016 Kbytes |
|
Opiniones: (0) ▲
Ningún comentario por el momento.
Añadir comentario
ocultar
| Valoración: |
|
| Nombre: | |
| Email: | |
| Título: | |
| Opinión: | |
| ¿Recomienda la compra de este producto? | |
|
|
|
| Añadir comentario | |
Todas las valoraciones que recibimos de los artículos que ofrecemos son reales y están verificadas. Un pequeño gesto, pero de mucho valor. Por eso, te agradecemos ese minuto que inviertes en dejarnos tu opinión y calificación sobre los productos, porque nos ayuda a seguir mejorando y a ofrecerte un servicio de todavía mayor calidad.
