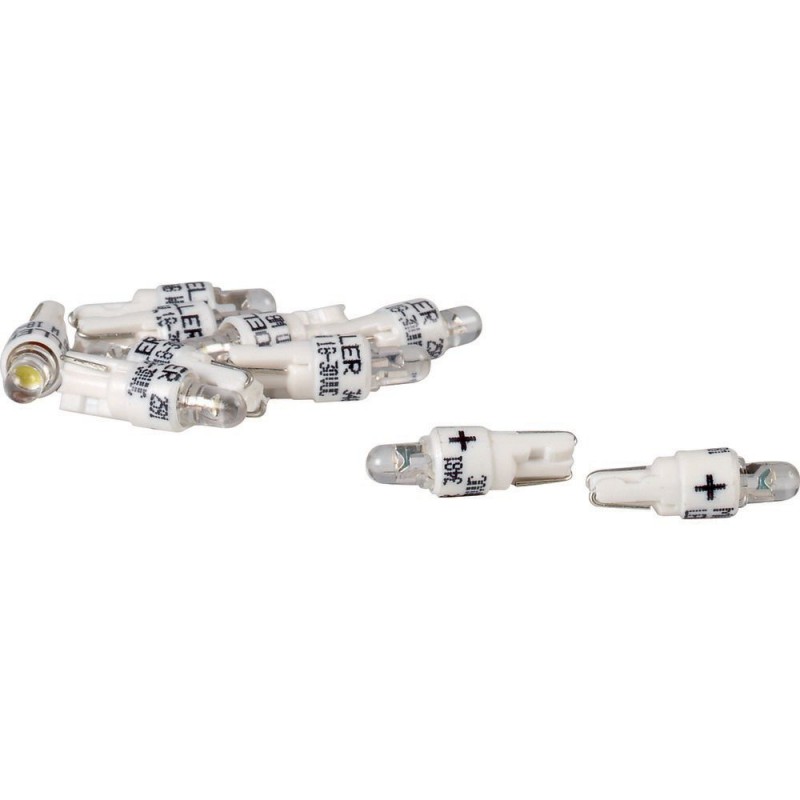

LEDWB-R 208726 Y7-208726 EATON ELECTRIC Lampara LED Roja 18-30 V 7-12 mA Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

LEDWB-R 208726 Y7-208726 EATON ELECTRIC Lampara LED Roja 18-30 V 7-12 mA

LEDWB-R

208726

Y7-208726

EATON-MOELLER

Lampara LED, Roja, 18-30 V, 7-12 mA

Eaton Moeller® series RMQ16 LED, W2x4.6d, 18-30VDC, 7-12.5mA, red

LED de repuesto con conexión de base de cuña, adecuado, por ejemplo, para luces indicadoras RMQ16 y pulsadores iluminados, color rojo

Más detalles


Lámparas > LED simple

Auxiliares de mando y señalización

Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER

Precio total: $17.14
Precio unitario: $17.14
Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Si nuestro precio no es el mejor solicítenos presupuesto Solicitar presupuesto

productos relacionados

▲

Comprados juntos habitualmente

▲

Más vendidos

▲

Más Información

▲


Especificaciones generales

Product Name
Eaton Moeller® series RMQ16 Accessory Single chip LED
Catalog Number
208726
EAN
4015082087265
Product Length/Depth
17 mm
Product Height
5 mm
Product Width
5 mm
Product Weight
0.7 g
Certifications
UL/CSA certification not required
Model Code
LEDWB-R

Features & Functions

Color
Red

General

Average nominal lifespan
100000 hour
Lifespan, electrical
100,000 h (at 25°C, according to EN60064)
Product category
Accessories
Voltage type
DC

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
60 °C

Electrical rating

Nominal current
12500 mA
Nominal voltage - min
18 V
Nominal voltage - max
30 V
Power consumption
0.2505 W

Actuator

Actuator diameter
0 mm

Communication

Connection to SmartWire-DT
No

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0.12 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 208726 Lámparas (EC001019)
Característica Valor
Color (EF000007) Rojo
Flujo luminoso (EF000078) 0 lm
Voltaje nominal (EF000002) 30 V
Tipo de tensión (EF000187) CC
Intensidad nominal (EF000001) 12500 mA
Consumo de energía (EF000346) 0.2505 W
Diámetro (EF000551) 0 mm
Longitud (EF001438) 17 mm
Ángulo del haz (EF000128) 360 °
Clase de eficiencia energética según EU 2019/2015 (EF017139) F
Consumo de energía ponderado en 1.000 horas (EF009483) 240 kWh
Vida útil media nominal (EF008342) 100000 h

Datasheet - PDF

▲
Título: Tamaño: Tipo:
PDF CATALOGO EATON CONTROL Y AUTOMATIZACION ES.pdf 9 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
LEDWB-R Y7-208726 208726 EN_025434.pdf 1 Mbytes LEDWB-R Y7-208726 208726 EN_025434.pdf
