DXG-ACC-2FR1N12KIT 744-A2815-00P Y7-744-A2815-00P EATON ELECTRIC Kit de conversión para aumentar el grado de.. Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

DXG-ACC-2FR1N12KIT 744-A2815-00P Y7-744-A2815-00P EATON ELECTRIC Kit de conversión para aumentar el grado de..

DXG-ACC-2FR1N12KIT

744A281500P

Y7-744-A2815-00P

EATON-MOELLER

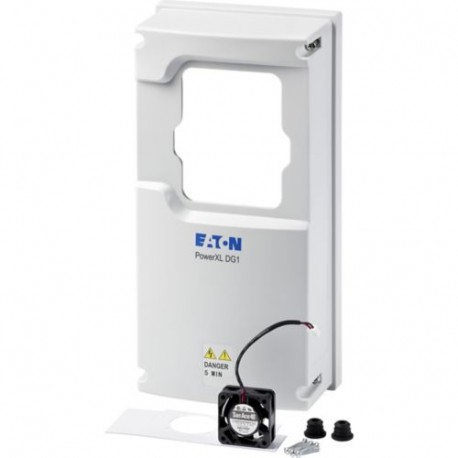

Kit de conversión para aumentar el grado de protección, IP54, FS1, 230 V,

Eaton DG1 Mounting kit for increasing the degree of protection to type 12/IP54, frame size 1, 230 V, for DG1 variable frequency drives

Más detalles


Convertidores de Frecuencia Power XL

Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER

Precio total: $38.42
Precio unitario: $38.42
Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Si nuestro precio no es el mejor solicítenos presupuesto Solicitar presupuesto

Más vendidos

▲

Más Información

▲


Especificaciones generales

Product Name
Eaton DXG Mounting set
Catalog Number
744-A2815-00P
EAN
4015081734283
Product Length/Depth
135 mm
Product Height
430 mm
Product Width
180 mm
Product Weight
0.342 kg
Compliances
CE
Model Code
DXG-ACC-2FR1N12KIT

Product specifications

Product Category
Accessories
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.

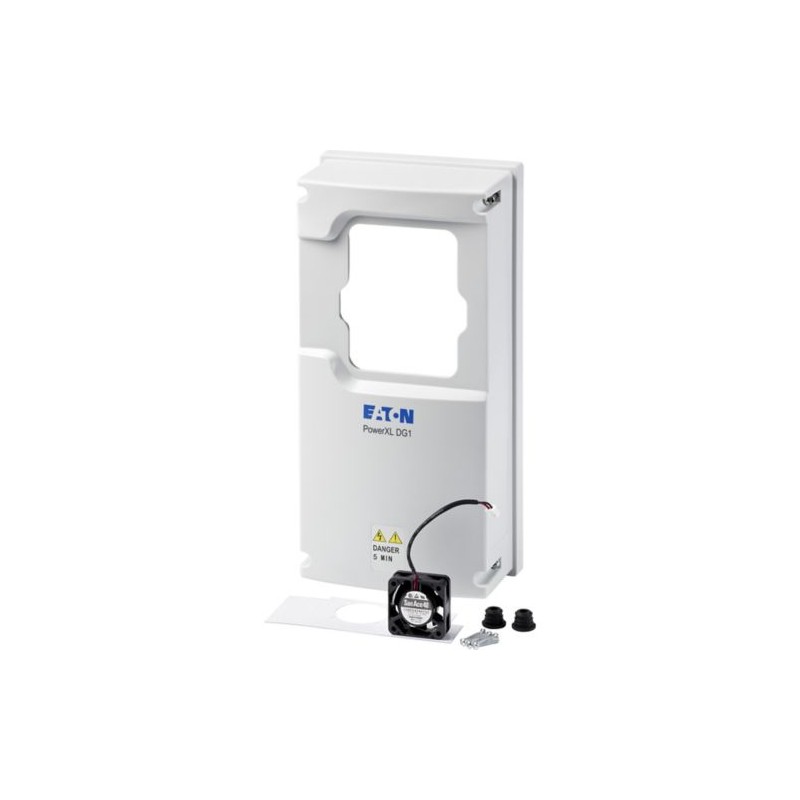

Fitted with:
Enclosure cover with seals and extra fan
Used with
DG1
Accessory/spare part type
Mounting set
Ambient operating temperature - max
50 °C
Ambient operating temperature - min
-10 °C
Functions
For increasing the degree of protection from IP21/NEMA 1 to IP54/NEMA 12
