> EATON - MOELLER series>Interruptores seccionadores DUMECO>AUX1NO+1NC-BOX012 6028293 Y8-6028293 ELECTRIC QSA Auxiliary switch 1NO+1NC
ANUNCIAR
Anterior producto

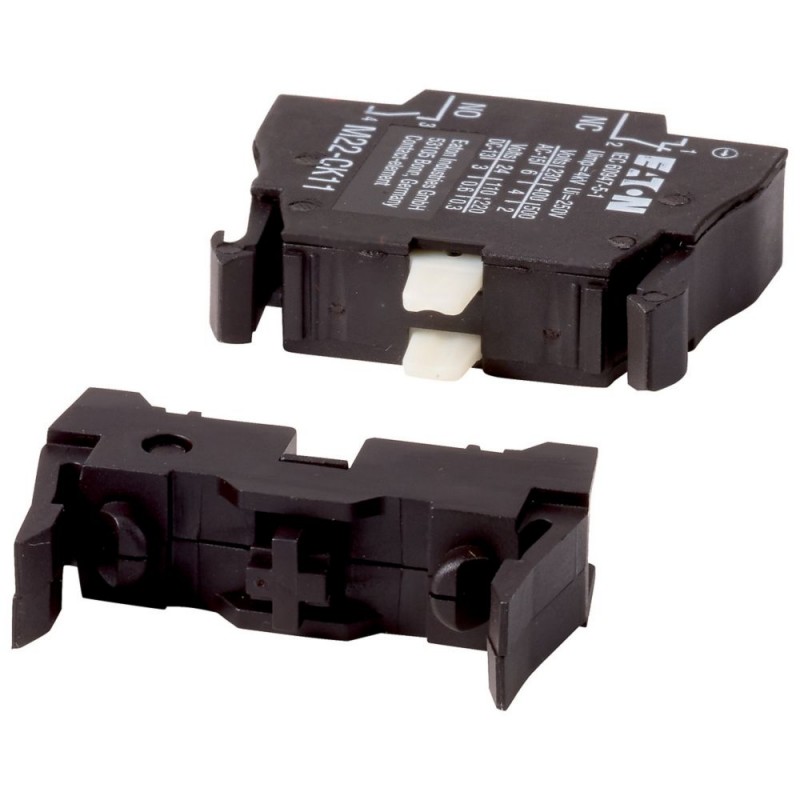

AUX1NO+1NC-BOX012 6028293 Y8-6028293 EATON ELECTRIC QSA Auxiliary switch 1NO+1NC Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

AUX1NO+1NC-BOX012 6028293 Y8-6028293 EATON ELECTRIC QSA Auxiliary switch 1NO+1NC

AUX1NO+1NC-BOX012

6028293

Y8-6028293

EATON-MOELLER

Contacto auxiliar 1NO+1NC, para DDC+QSA, Box 0/1/2

Eaton Auxiliary contact, 1 N/O + 1N/C, for DDC + QSA, Box0/1/2

Contacto auxiliar, Servicio de conmutación 6 A, 230 V CA, Contactos N/S = Normalmente abiertos: 1 N/A, Contactos N/C = Normalmente cerrados: 1 NC, Para uso con: DDC..., QSA..., Información sobre el equipamiento suministrado: incl. adaptador

Más detalles


Componentes industriales de baja tensión > Bloque de contactos auxiliares

Interruptores seccionadores DUMECO

Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER

Precio total: $47.65
Precio unitario: $47.65
Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Si nuestro precio no es el mejor solicítenos presupuesto Solicitar presupuesto

Comprados juntos habitualmente

▲

Más vendidos

▲

Más Información

▲


Especificaciones generales

Product Name
Eaton Accessory Auxiliary contact
Catalog Number
6028293
EAN
8711426851627
Product Length/Depth
160 mm
Product Height
10 mm
Product Width
100 mm
Product Weight
0.026 kg
Compliances
CE
Catalog Notes
Switching duty 6 A, 230 V AC
Model Code
AUX1NO+1NC-BOX012

Features & Functions

Electric connection type
Screw connection

General

Accessories
Adapter included with supplied equipment.
Model
Top mounting
Mounting method
Front fastening
Type
Auxiliary contact

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
50 °C

Electrical rating

Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V
4 A

Contacts

Number of contacts (change-over contacts)
0
Number of contacts (normally closed contacts)
1
Number of contacts (normally open contacts)
1

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0.11 W
Rated operational current for specified heat dissipation (In)
6 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 6028293 Interruptores de baja tensión (EC000041)
Característica Valor
Número de contactos inversores (EF008257) 0
Número de contactos normalmente abiertos (EF008256) 1
Número de contactos normalmente cerrados (EF008255) 1
Número de interruptores de señal de error (EF007613) 0
Corriente de funcionamiento nominal Ie a CA-15, 230 V (EF001385) 4 A
Ejecución de la conexión eléctrica (EF003961) Conexión roscada
Modelo (EF000010) Montaje superior
Método de montaje (EF000003) Fijación delantera
Portalámparas (EF000048) Ninguno

Datasheet - PDF

▲
Título: Tamaño: Tipo:
PDF CATÁLOGO EATON DISTRIBUCIÓN ENERGIA ES.pdf 32 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
AUX1NO+1NC-BOX012 Y8-6028293 6028293 DE_1318546.pdf 1 Mbytes AUX1NO+1NC-BOX012 Y8-6028293 6028293 DE_1318546.pdf
