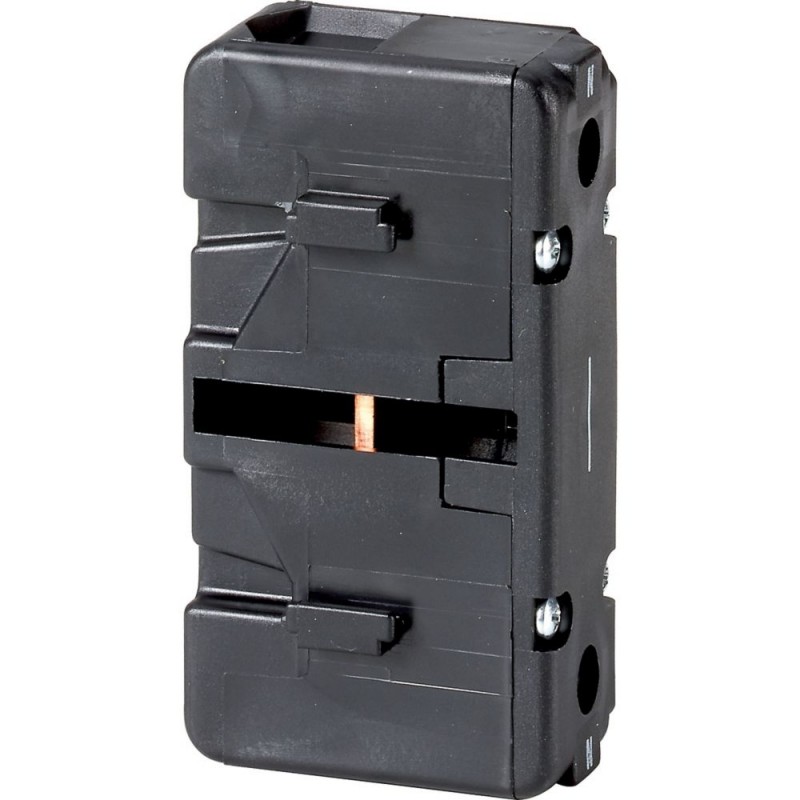

QMNEUTRAL80/1004P 1319859 Y8-1319859 EATON ELECTRIC Conductor neutro, 4.p, QM 80/3, 100/3 Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

QMNEUTRAL80/1004P 1319859 Y8-1319859 EATON ELECTRIC Conductor neutro, 4.p, QM 80/3, 100/3

QMNEUTRAL80/1004P

1319859

Y8-1319859

EATON-MOELLER

Conductor neutro, 4.p, QM 80/3, 100/3

Eaton QM Neutral conductor, 4.p, QM 80/3, 100/3

Conductor neutro directo, QM 80/3, QM 100/3

Más detalles


Interruptores seccionadores DUMECO

* Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER

Precio total: $13.66
Precio unitario: $13.66

*Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Si nuestro precio no es el mejor solicítenos presupuesto Solicitar presupuesto

Más vendidos

▲

Más Información

▲


Especificaciones generales

Product Name
Eaton QM Accessory Neutral conductor
Catalog Number
1319859
EAN
8711426350489
Product Length/Depth
160 mm
Product Height
20 mm
Product Width
100 mm
Product Weight
0.04 kg
Compliances
CE
Model Code
QMNEUTRAL80/1004P

Product specifications

Type
Direct neutral conductor
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Ambient operating temperature - max
50 °C
Ambient operating temperature - min
-25 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
8 W
Rated operational current for specified heat dissipation (In)
100 A
Static heat dissipation, non-current-dependent Pvs
0 W
Mounting method
Side mounting

ETIM for 1319859 Interruptores de baja tensión (EC002498)
Característica Valor
Accesorio (EF013236) Sí
Recambio (EF013237) No

Datasheet - PDF

▲
Título: Tamaño: Tipo:
PDF CATÁLOGO EATON DISTRIBUCIÓN ENERGIA ES.pdf 16 Mbytes
PDF CATALOGUE EATON EN.pdf 51 Mbytes
QMNEUTRAL80/1004P Y8-1319859 1319859 ES_1319806.pdf 2 Mbytes QMNEUTRAL80/1004P Y8-1319859 1319859 ES_1319806.pdf
