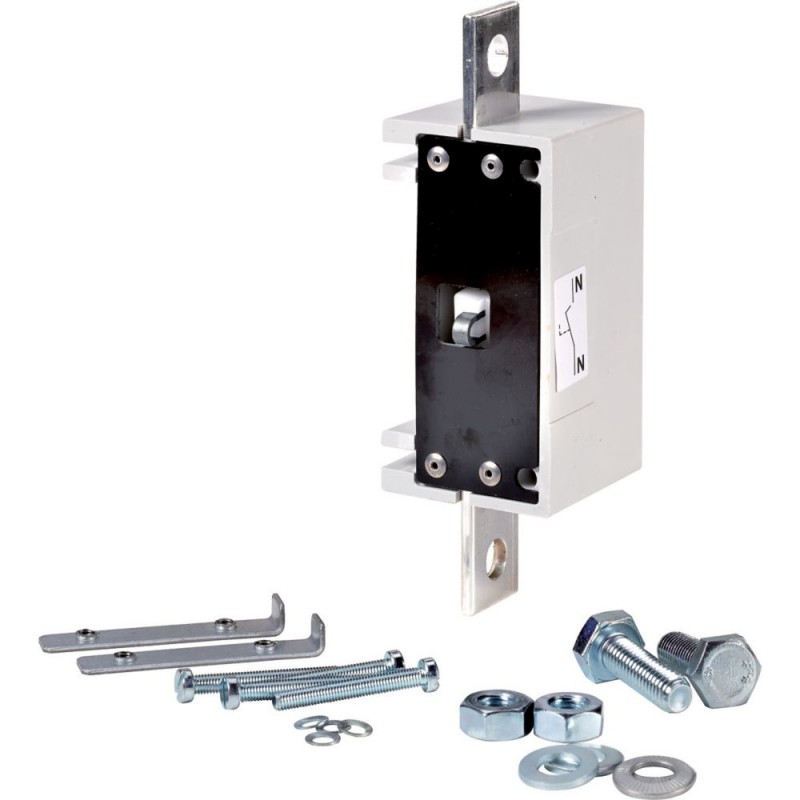

QSANS100/125A 1319467 Y8-1319467 EATON ELECTRIC Conductor neutro, neutro conmutado, 100/125A Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

QSANS100/125A 1319467 Y8-1319467 EATON ELECTRIC Conductor neutro, neutro conmutado, 100/125A

QSANS100/125A

1319467

Y8-1319467

EATON-MOELLER

conductor de Neutro seccionable, 100/125A

Eaton QSA Neutral conductor, switched neutral, 100/125A

Conductor neutro (conmutado), 100/125 A, para QSA n.º de pieza 100N1 QSA125N1-

Más detalles


Componentes industriales de baja tensión > Accesorios para la tecnología de conmutación de baja tensión

Interruptores seccionadores DUMECO

Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER

Precio total: $93.44
Precio unitario: $93.44
Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Si nuestro precio no es el mejor solicítenos presupuesto Solicitar presupuesto

Más vendidos

▲

Más Información

▲


Especificaciones generales

Product Name
Eaton QSA Accessory Neutral conductor
Catalog Number
1319467
EAN
8711426102279
Product Length/Depth
123 mm
Product Height
55 mm
Product Width
57 mm
Product Weight
0.25 kg
Compliances
CE
Model Code
QSANS100/125A

General

Accessory/spare part type
Neutral terminal
Mounting method
Side mounting
Type

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
50 °C

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
7.5 W
Rated operational current for specified heat dissipation (In)
125 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 1319467 Interruptores de baja tensión (EC002498)
Característica Valor
Tipo de accesorio/repuesto (EF000215) Terminal neutral
Accesorio (EF013236) Sí
Recambio (EF013237) No

Datasheet - PDF

▲
Título: Tamaño: Tipo:
PDF CATÁLOGO EATON DISTRIBUCIÓN ENERGIA ES.pdf 32 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
QSANS100/125A Y8-1319467 1319467 DE_1318546.pdf 1 Mbytes QSANS100/125A Y8-1319467 1319467 DE_1318546.pdf
