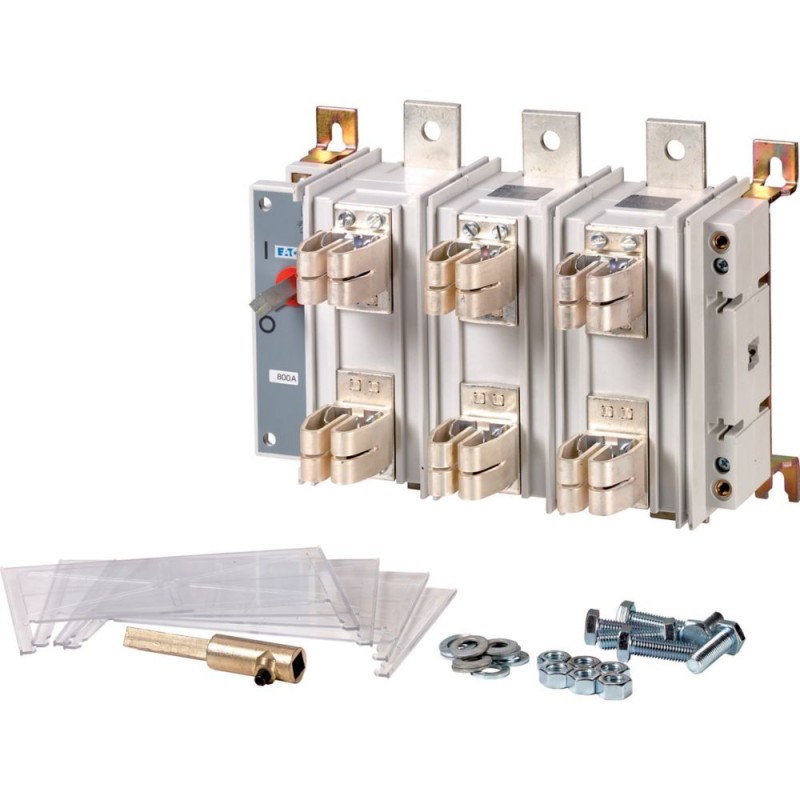

QSA800-3/3 1318543 Y8-1318543 EATON ELECTRIC Interruptor seccionador-fuse, 3P, 800 A, montaje trasero, Ithe ..
QSA800-3/3
1318543
Y8-1318543
EATON-MOELLER
Interruptor seccionador-fuse, 3P, 800 A, montaje trasero, Ithe max. 750
Eaton QSA Fuse switch-disconnector, 3 pole, rear mounting, 800 A, NH3
Interruptor-seccionador de fusibles QSA800-3/3, tamaño de bastidor 3 adecuado para fusibles DIN (tipo de contactos de cuchilla)., ithe 750 A
Componentes industriales de baja tensión > Interruptor con fusibles
Interruptores seccionadores DUMECO
Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER
Más vendidos
▲Más Información
▲Especificaciones generales
Product Name
Eaton QSA Fuse switch-disconnector
Catalog Number
1318543
EAN
8711426951570
Product Length/Depth
280 mm
Product Height
240 mm
Product Width
355 mm
Product Weight
14.62 kg
Certifications
RoHS
IEC/EN 60947
IEC/EN 60947-3
VDE 0660
IEC/EN 60204
CE
IEC/EN 60947
IEC/EN 60947-3
VDE 0660
IEC/EN 60204
CE
Model Code
QSA800-3/3
Features & Functions
Features
Version as main switch
Fitted with:
Connectors
Functions
Optional Stop Function
Number of poles
Three-pole
General
Accessories
Auxiliary contact or neutral conductor fitted by user.
Actuator type
Without actuator
Construction size
NH3
Degree of protection
IP20, with terminal cover
IP00
IP00
Degree of protection (front side)
IP00
Mounting method
Rear mounting
Mounting position
As required
Overvoltage category
III
Pollution degree
3
Product category
Rated impulse withstand voltage (Uimp)
6000 V
Suitable for
DIN fuse-links (blade contacts type)
Ground mounting
Ground mounting
Climatic environmental conditions
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C
Ambient storage temperature - min
-30 °C
Ambient storage temperature - max
80 °C
Operating temperature - min
-25 °C
Operating temperature - max
55 °C
Electrical rating
Rated insulation voltage (Ui)
690 V
Rated operating voltage (Ue) at AC - max
690 V
Rated operational power at AC-23A, 400 V, 50 Hz
500 kW
Rated short-time withstand current (Icw)
0 kA
Rated uninterrupted current (Iu)
800 A
Uninterrupted current
Rated uninterrupted current Iu is specified for max. cross-section.
Contacts
Number of auxiliary contacts (normally closed contacts)
0
Number of auxiliary contacts (normally open contacts)
0
Design verification
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
58 W
Rated operational current for specified heat dissipation (In)
800 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Característica | Valor |
|---|---|
| Ejecución como interruptor principal (EF006981) | Sí |
| Ejecución como interruptor de seguridad (EF006985) | No |
| Tensión de funcionamiento nominal máxima Ue CA (EF007355) | 690 V |
| Intensidad nominal permanente Iu (EF001389) | 800 A |
| Potencia de funcionamiento nominal a 400 V CA-23 (EF007027) | 500 kW |
| Corriente nominal de cortocircuito condicional Iq (EF001444) | 50 kA |
| Resistencia de corriente nominal de corta duración Icw (EF007050) | 0 kA |
| Apto para insertos de fusibles (EF006692) | NH3 |
| Número de polos (EF001391) | 3 |
| Con control de fusibles (EF007384) | No |
| Tipo de conexión del circuito de corriente principal (EF006819) | Conexión de tornillo |
| Entrada de cable (EF000537) | Encima/debajo |
| Equipado con conectores rápidos (EF011696) | Sí |
| Apto para montaje en suelo (EF007243) | Sí |
| Apropiado para montaje frontal (EF007246) | No |
| Apto para el montaje de barras colectoras (EF007259) | No |
| Ejecución del elemento accionador (EF006976) | Sin actuador |
| Posición del elemento de accionamiento (EF009410) | Parte frontal |
| Accionamiento motorizado opcional (EF007386) | No |
| Accionamiento motorizado integrado (EF006697) | No |
| Ejecución como dispositivo de parada de emergencia (EF006959) | No |
| Grado de protección (IP), frontal (EF003118) | IP00 |
