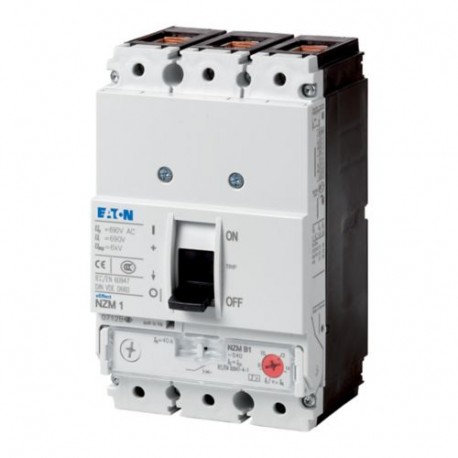

NZMN1-S100-CNA 281280 Y7-281280 EATON ELECTRIC Int. automático NZM, 3P, 100A, CNA
NZMN1-S100-CNA
281280
Y7-281280
EATON-MOELLER
Int. automático NZM, 3P, 100A, CNA
Eaton Moeller series NZM - Molded Case Circuit Breaker. Circuit-breaker, 3p, 100A, N1-S100-CNA
Serie NZM.. -S.. Los interruptores automáticos CNA cubren todos los casos de aplicación con solo cuatro tamaños compactos y son adecuados para su uso en el mercado mundial. Los grupos de funciones modulares siempre hacen que el montaje sea flexible. Con desbloqueo magnético por cortocircuito en conexión con relé de sobrecarga. Con desbloqueo por cortocircuito sin disparo por sobrecarga. Notas: Los interruptores cumplen con las regulaciones UL/CSA e IEC. La placa de características contiene los valores de rendimiento de conmutación IEC.
Componentes industriales de baja tensión > Disyuntor de protección del motor
Interruptores Automáticos Caja Moldeada NZM
Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER
productos relacionados
▲Más vendidos
▲Más Información
▲Especificaciones generales
Product Name
Eaton Moeller series NZM molded case circuit breaker magnetic
Catalog Number
281280
EAN
4015082812805
Product Length/Depth
88 mm
Product Height
165.5 mm
Product Width
90 mm
Product Weight
1.046 kg
Compliances
RoHS conform
Certifications
Specially designed for North America
UL listed
CSA-C22.2 No. 5-09
UL (Category Control Number DKPU2)
CSA certified
IEC
IEC/EN 60947
CE marking
CSA (Class No. 1432-01)
CSA (File No. 22086)
UL 489
IEC 60947-2
UL/CSA
UL (File No. E31593)
UL listed
CSA-C22.2 No. 5-09
UL (Category Control Number DKPU2)
CSA certified
IEC
IEC/EN 60947
CE marking
CSA (Class No. 1432-01)
CSA (File No. 22086)
UL 489
IEC 60947-2
UL/CSA
UL (File No. E31593)
Model Code
NZMN1-S100-CNA
Datos técnicos - eléctricos
Voltage rating
690 V - 690 V
Rated operating voltage Ue (UL) - max
480 Y / 277 V
Rated insulation voltage (Ui)
690 V
Rated impulse withstand voltage (Uimp) at auxiliary contacts
6000 V
Rated impulse withstand voltage (Uimp) at main contacts
6000 V
Rated operational current
160 A (400 V AC-1, making and breaking capacity)
100 A (660-690 V AC-3, making and breaking capacity)
100 A (690 V AC-1, making and breaking capacity)
125 A (415 V AC-1, making and breaking capacity)
100 A (660-690 V AC-3, making and breaking capacity)
100 A (690 V AC-1, making and breaking capacity)
125 A (415 V AC-1, making and breaking capacity)
Amperage Rating
100 A
Instantaneous current setting (Ii) - min
8 A
Instantaneous current setting (Ii) - max
13 A
Overload current setting (Ir) - min
0 A
Overload current setting (Ir) - max
0 A
Short-circuit release non-delayed setting - min
800 A
Short-circuit release non-delayed setting - max
1300 A
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 230 V, 50/60 Hz
85 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 400/415 V, 50/60 Hz
35 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 440 V, 50/60 Hz
35 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 525 V, 50/60 Hz
10 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 690 V, 50/60 Hz
7.5 kA
Rated short-circuit making capacity Icm at 240 V, 50/60 Hz
187 kA
Rated short-circuit making capacity Icm at 400/415 V, 50/60 Hz
105 kA
Rated short-circuit making capacity Icm at 440 V, 50/60 Hz
74 kA
Rated short-circuit making capacity Icm at 525 V, 50/60 Hz
40 kA
Rated short-circuit making capacity Icm at 690 V, 50/60 Hz
17 kA
Rated operating power at AC-3, 230 V
30 kW
Rated operating power at AC-3, 400 V
55 kW
Short-circuit total breaktime
< 10 ms
Low-voltage HBC fuse - max
200 A gG/gL
Electrical connection type of main circuit
Other
Isolation
500 V AC (between auxiliary contacts and main contacts)
300 V AC (between the auxiliary contacts)
300 V AC (between the auxiliary contacts)
Number of operations per hour - max
120
Handle type
Rocker lever
Utilization category
A (IEC/EN 60947-2)
Overvoltage category
III
Pollution degree
3
Lifespan, electrical
7500 operations at 400 V AC-3
7500 operations at 415 V AC-3
5000 operations at 690 V AC-3
7500 operations at 415 V AC-3
5000 operations at 690 V AC-3
Direction of incoming supply
As required
Datos técnicos - comunicación
Rated impulse withstand voltage (Uimp) at auxiliary contacts
6000 V
Rated impulse withstand voltage (Uimp) at main contacts
6000 V
Rated operational current
160 A (400 V AC-1, making and breaking capacity)
100 A (660-690 V AC-3, making and breaking capacity)
100 A (690 V AC-1, making and breaking capacity)
125 A (415 V AC-1, making and breaking capacity)
100 A (660-690 V AC-3, making and breaking capacity)
100 A (690 V AC-1, making and breaking capacity)
125 A (415 V AC-1, making and breaking capacity)
Amperage Rating
100 A
Instantaneous current setting (Ii) - min
8 A
Instantaneous current setting (Ii) - max
13 A
Overload current setting (Ir) - min
0 A
Overload current setting (Ir) - max
0 A
Short-circuit release non-delayed setting - min
800 A
Short-circuit release non-delayed setting - max
1300 A
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 230 V, 50/60 Hz
85 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 400/415 V, 50/60 Hz
35 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 440 V, 50/60 Hz
35 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 525 V, 50/60 Hz
10 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 690 V, 50/60 Hz
7.5 kA
Rated short-circuit making capacity Icm at 240 V, 50/60 Hz
187 kA
Rated short-circuit making capacity Icm at 400/415 V, 50/60 Hz
105 kA
Rated short-circuit making capacity Icm at 440 V, 50/60 Hz
74 kA
Rated short-circuit making capacity Icm at 525 V, 50/60 Hz
40 kA
Rated short-circuit making capacity Icm at 690 V, 50/60 Hz
17 kA
Rated operating power at AC-3, 230 V
30 kW
Rated operating power at AC-3, 400 V
55 kW
Short-circuit total breaktime
< 10 ms
Low-voltage HBC fuse - max
200 A gG/gL
Electrical connection type of main circuit
Other
Isolation
500 V AC (between auxiliary contacts and main contacts)
300 V AC (between the auxiliary contacts)
300 V AC (between the auxiliary contacts)
Number of operations per hour - max
120
Handle type
Rocker lever
Utilization category
A (IEC/EN 60947-2)
Overvoltage category
III
Pollution degree
3
Lifespan, electrical
7500 operations at 400 V AC-3
7500 operations at 415 V AC-3
5000 operations at 690 V AC-3
7500 operations at 415 V AC-3
5000 operations at 690 V AC-3
Direction of incoming supply
As required
Datos técnicos - mecánicos
Mounting Method
Built-in device fixed built-in technique
Fixed
Fixed
Degree of protection
IP20
IP20 (basic degree of protection, in the operating controls area)
IP20 (basic degree of protection, in the operating controls area)
Degree of protection (IP), front side
IP66 (with door coupling rotary handle)
IP40 (with insulating surround)
IP40 (with insulating surround)
Degree of protection (terminations)
IP00 (terminations, phase isolator and strip terminal)
IP10 (tunnel terminal)
IP10 (tunnel terminal)
Protection against direct contact
Finger and back-of-hand proof to VDE 0106 part 100
Shock resistance
20 g (half-sinusoidal shock 20 ms)
Switch off technique
Magnetic
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78
Damp heat, constant, to IEC 60068-2-78
Lifespan, mechanical
20000 operations
| Característica | Valor |
|---|---|
| Ajuste actual de liberación de sobrecarga (EF002336) | 0 A |
| Rango de ajuste de liberación instantánea de cortocircuito (EF007131) | 8 A |
| Con protección de sobrecarga térmica (EF006233) | false |
| Sensible a fallo de fase (EF007400) | false |
| Técnica de liberación (EF007007) | Magnetic |
| Tensión nominal de funcionamiento (EF001435) | 690 V |
| Intensidad nominal permanente Iu (EF001389) | None A |
| Potencia de funcionamiento nominal a 230 V CA-3 (EF007025) | 30 kW |
| Potencia de funcionamiento nominal en CA-3, 400 V (EF001364) | 55 kW |
| Pérdida de potencia (EF005387) | None W |
| Tipo de conexión del circuito de corriente principal (EF006819) | Other |
| Ejecución del elemento accionador (EF006976) | Rocker lever |
| Construcción del dispositivo (EF008240) | Built-in device fixed built-in technique |
| Con interruptor auxiliar integrado (EF001387) | false |
| Con liberación de baja tensión integrada (EF001390) | false |
| Número de polos (EF001391) | 3 |
| Corriente límite nominal de cortocircuito en la corriente de corte a 400 V CA (EF007049) | 35 kA |
| Grado de protección (IP) (EF005474) | IP20 |
| Altura (EF000040) | 165.5 mm |
| Anchura (EF000008) | 90 mm |
| Profundidad (EF000049) | 88 mm |
