> EATON - MOELLER series>Interruptores Automáticos Caja Moldeada NZM >NZMN4-VEF1200-NA 271141 Y7-271141 ELECTRIC Int. automático NZM, 3P, 1200A, NA
ANUNCIAR
Anterior producto Siguiente producto

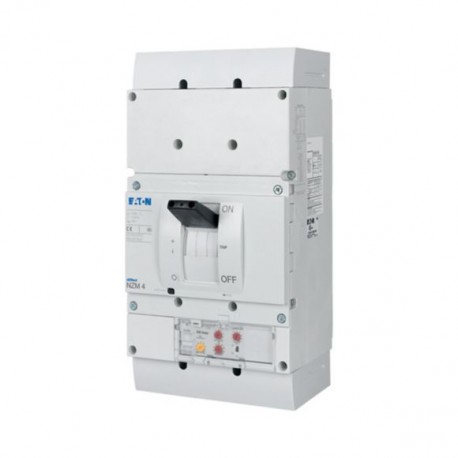

NZMN4-VEF1200-NA 271141 Y7-271141 EATON ELECTRIC Int. automático NZM, 3P, 1200A, NA Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

NZMN4-VEF1200-NA 271141 Y7-271141 EATON ELECTRIC Int. automático NZM, 3P, 1200A, NA

NZMN4-VEF1200-NA

271141

Y7-271141

EATON-MOELLER

Int. automático NZM-NA, 3P, 1200A

Disyuntor, 3p, 1200A

Más detalles


Componentes industriales de baja tensión > Interruptor para protección de transformadores, generadores y sistemas

Interruptores Automáticos Caja Moldeada NZM

Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER

Precio total: $6,986.72
Precio unitario: $6,986.72
Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Si nuestro precio no es el mejor solicítenos presupuesto Solicitar presupuesto

productos relacionados

▲

Más vendidos

▲

Más Información

▲


Especificaciones generales

Product Name
Eaton Moeller series NZM - Molded case circuit breaker
Catalog Number
271141
EAN
4015082711412
Product Length/Depth
401 mm
Product Height
207 mm
Product Width
210 mm
Product Weight
21 kg
Compliances
RoHS conform
Certifications
CSA-C22.2 No. 5-09
CSA certified
Specially designed for North America
CSA (File No. 22086)
IEC
CE marking
UL (Category Control Number DIVQ)
IEC 60947-2
UL 489
IEC/EN 60947
UL listed
UL/CSA
CSA (Class No. 1432-01)
UL (File No. E31593)
Model Code
NZMN4-VEF1200-NA

Datos técnicos - eléctricos

Voltage rating
690 V - 690 V
Rated operating voltage Ue (UL) - max
600 V
Rated impulse withstand voltage (Uimp) at auxiliary contacts
6000 V
Rated impulse withstand voltage (Uimp) at main contacts
8000 V
Rated operational current
2000 A (380/400 V AC-1, making and breaking capacity)
1200 A (690 V AC -1, making and breaking capacity)
1200 A (660-690 V AC-3, making and breaking capacity)
1600 A (415 V AC-1, making and breaking capacity)
Rated short-time withstand current (t = 0.3 s)
19.2 kA
Rated short-time withstand current (t = 1 s)
19.2 kA
Amperage Rating
1200 A
Instantaneous current setting (Ii) - min
2400 A
Instantaneous current setting (Ii) - max
14400 A
Overload current setting (Ir) - min
1200 A
Overload current setting (Ir) - max
1200 A
Short delay current setting (Isd) - min
2400 A
Short delay current setting (Isd) - max
12000 A
Short-circuit release delayed setting - min
2400 A
Short-circuit release delayed setting - max
12000 A
Short-circuit release non-delayed setting - min
2400 A
Short-circuit release non-delayed setting - max
14400 A
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 230 V, 50/60 Hz
37 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 400/415 V, 50/60 Hz
37 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 440 V, 50/60 Hz
26 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 525 V, 50/60 Hz
19 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 690 V, 50/60 Hz
15 kA
Rated short-circuit making capacity Icm at 240 V, 50/60 Hz
105 kA
Rated short-circuit making capacity Icm at 400/415 V, 50/60 Hz
105 kA
Rated short-circuit making capacity Icm at 440 V, 50/60 Hz
74 kA
Rated short-circuit making capacity Icm at 525 V, 50/60 Hz
53 kA
Rated short-circuit making capacity Icm at 690 V, 50/60 Hz
40 kA
Short-circuit total breaktime
< 25 ms (≦ 415 V); < 35 ms (> 415 V)
Low-voltage HBC fuse - max
2 x 630 A gG/gL
Electrical connection type of main circuit
Screw connection
Isolation
300 V AC (between the auxiliary contacts)
500 V AC (between auxiliary contacts and main contacts)
Number of operations per hour - max
60
Handle type
Rocker lever
Utilization category
A (IEC/EN 60947-2)
Overvoltage category
III
Pollution degree
3
Lifespan, electrical
3000 operations at 400 V AC-1
1000 operations at 690 V AC-3
2000 operations at 415 V AC-3
2000 operations at 400 V AC-3
2000 operations at 690 V AC-1
Direction of incoming supply
As required

Datos técnicos - comunicación

Rated impulse withstand voltage (Uimp) at auxiliary contacts
6000 V
Rated impulse withstand voltage (Uimp) at main contacts
8000 V
Rated operational current
2000 A (380/400 V AC-1, making and breaking capacity)
1200 A (690 V AC -1, making and breaking capacity)
1200 A (660-690 V AC-3, making and breaking capacity)
1600 A (415 V AC-1, making and breaking capacity)
Rated short-time withstand current (t = 0.3 s)
19.2 kA
Rated short-time withstand current (t = 1 s)
19.2 kA
Amperage Rating
1200 A
Instantaneous current setting (Ii) - min
2400 A
Instantaneous current setting (Ii) - max
14400 A
Overload current setting (Ir) - min
1200 A
Overload current setting (Ir) - max
1200 A
Short delay current setting (Isd) - min
2400 A
Short delay current setting (Isd) - max
12000 A
Short-circuit release delayed setting - min
2400 A
Short-circuit release delayed setting - max
12000 A
Short-circuit release non-delayed setting - min
2400 A
Short-circuit release non-delayed setting - max
14400 A
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 230 V, 50/60 Hz
37 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 400/415 V, 50/60 Hz
37 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 440 V, 50/60 Hz
26 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 525 V, 50/60 Hz
19 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 690 V, 50/60 Hz
15 kA
Rated short-circuit making capacity Icm at 240 V, 50/60 Hz
105 kA
Rated short-circuit making capacity Icm at 400/415 V, 50/60 Hz
105 kA
Rated short-circuit making capacity Icm at 440 V, 50/60 Hz
74 kA
Rated short-circuit making capacity Icm at 525 V, 50/60 Hz
53 kA
Rated short-circuit making capacity Icm at 690 V, 50/60 Hz
40 kA
Short-circuit total breaktime
< 25 ms (≦ 415 V); < 35 ms (> 415 V)
Low-voltage HBC fuse - max
2 x 630 A gG/gL
Electrical connection type of main circuit
Screw connection
Isolation
300 V AC (between the auxiliary contacts)
500 V AC (between auxiliary contacts and main contacts)
Number of operations per hour - max
60
Handle type
Rocker lever
Utilization category
A (IEC/EN 60947-2)
Overvoltage category
III
Pollution degree
3
Lifespan, electrical
3000 operations at 400 V AC-1
1000 operations at 690 V AC-3
2000 operations at 415 V AC-3
2000 operations at 400 V AC-3
2000 operations at 690 V AC-1
Direction of incoming supply
As required

Datos técnicos - mecánicos

Mounting Method
Fixed
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional
Degree of protection
IP20
IP20 (basic degree of protection, in the operating controls area)
Degree of protection (IP), front side
IP40 (with insulating surround)
IP66 (with door coupling rotary handle)
Degree of protection (terminations)
IP00 (terminations, phase isolator and strip terminal)
IP10 (tunnel terminal)
Protection against direct contact
Finger and back-of-hand proof to DIN EN 50274/VDE 0106 part 110
Shock resistance
15 g (half-sinusoidal shock 11 ms)
Number of auxiliary contacts (change-over contacts)
0
Number of auxiliary contacts (normally closed contacts)
0
Number of auxiliary contacts (normally open contacts)
0
Position of connection for main current circuit
Front side
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Lifespan, mechanical
10000 operations

Datasheet - PDF

▲
Título: Tamaño: Tipo:
PDF CATÁLOGO EATON DISTRIBUCIÓN ENERGIA ES.pdf 32 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
NZMN4-VEF1200-NA Y7-271141 271141 ES_265996.pdf 3 Mbytes NZMN4-VEF1200-NA Y7-271141 271141 ES_265996.pdf
