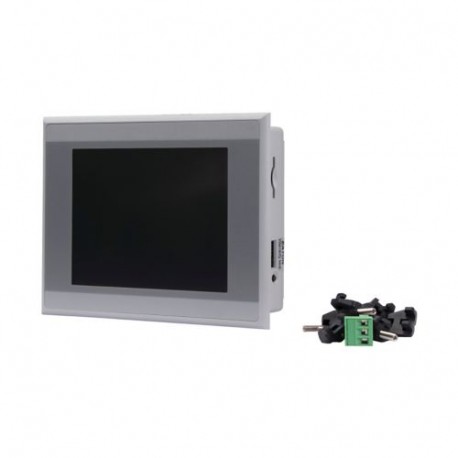

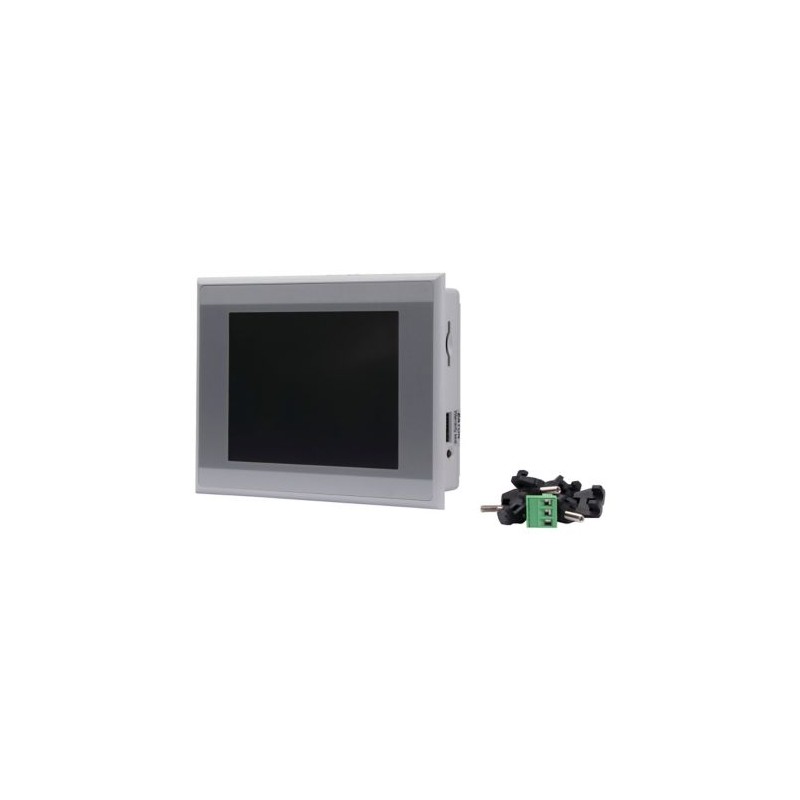

XV-102-D4-57TVR-10 150620 Y7-150620 EATON ELECTRIC Terminal Tactil 5.7" Resistiva TFT Color Ethernet RS232 R..
XV-102-D4-57TVR-10
150620
Y7-150620
EATON-MOELLER
Terminal Tactil; 5.7"; Resistiva; TFT Color; Ethernet; RS232; RS485;
Terminal Tactil. 5.7". Resistiva. TFT Color. Ethernet. RS232. RS485.
Eaton XV-102 Touch panel, 24 V DC, 5.7z, TFTcolor, ethernet, RS232, RS485, (PLC)
Controladores industriales (PLC) > Panel gráfico
Terminales Táctiles HMI
Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER
productos relacionados
▲Más vendidos
▲Más Información
▲Especificaciones generales
Product Name
Eaton XV-102 Touch panel
Catalog Number
150620
EAN
7640130097063
Product Length/Depth
170 mm
Product Height
39 mm
Product Width
130 mm
Product Weight
0.54 kg
Certifications
CUL508
UL 60950
IEC/EN 61000-6-2
Certified by UL for use in Canada
CSA File No.: UL report applies to both US and Canada
CSA Class No.: none
UL
UL Category Control No.: NRAQ
IEC/EN 61131-2, CE
EN 50178
EN 60950
IEC/EN 61000-6-4
DNV GL
CULus
UL508
IEC/EN 61131-2
UL File No.: E205091
EAC
UL 60950
IEC/EN 61000-6-2
Certified by UL for use in Canada
CSA File No.: UL report applies to both US and Canada
CSA Class No.: none
UL
UL Category Control No.: NRAQ
IEC/EN 61131-2, CE
EN 50178
EN 60950
IEC/EN 61000-6-4
DNV GL
CULus
UL508
IEC/EN 61131-2
UL File No.: E205091
EAC
Model Code
XV-102-D4-57TVR-10
Características y funciones
Enclosure material
Plastic
Features
USB device
Fanless CPU and system cooling, natural convection-based passive cooling
Slot for SD card
UL508, cUL approvals
Ethernet interface
USB Host
Portrait format
Fanless CPU and system cooling, natural convection-based passive cooling
Slot for SD card
UL508, cUL approvals
Ethernet interface
USB Host
Portrait format
Fitted with:
1 x Ethernet 10/100 Mbps (built-in interfaces)
Color display
1 x USB host 2.0 (built-in interface)
1 x RS485 (built-in interface)
Numeric keyboard
Message system (incl. buffer and confirmation)
SW interfaces
Message indication
Alpha numeric keyboard
Printer output
1 x RS232 (built-in interface)
1 x USB device (built-in interface)
Recipes
Color display
1 x USB host 2.0 (built-in interface)
1 x RS485 (built-in interface)
Numeric keyboard
Message system (incl. buffer and confirmation)
SW interfaces
Message indication
Alpha numeric keyboard
Printer output
1 x RS232 (built-in interface)
1 x USB device (built-in interface)
Recipes
Functions
Additional software components, loadable
Process value representation (output) possible
Process default value (input) possible
Process value representation (output) possible
Process default value (input) possible
General
Battery runtime
Back-up of real-time clock: CR 2032 (190 mA/h), zero maintenance (soldered)
Degree of protection
IP20
IP20, rear
IP20, rear
Degree of protection (front side)
IP65
NEMA 4X
NEMA 4X
Fuse type
Built-in fuse (not accessible)
Lifespan
40,000 h (Service life of back-lighting)
Model
Insulating enclosure and front plate
Mounting method
Flush mounting
Flush mounting - Inclination from vertical: ±45° (if using natural convection)
Flush mounting - Clearance: Width x Height x Depth ≥ 30 mm (1.18")
Flush mounting - Inclination from vertical: ±45° (if using natural convection)
Flush mounting - Clearance: Width x Height x Depth ≥ 30 mm (1.18")
Product category
HMI-PLC (SPS function, retrofittable)
RoHs conformity
Yes
Software
XSOFT-CODESYS-2, Visualization software, Engineering
XSOFT-CODESYS-2, PLC-Programming software, Engineering
GALILEO, Visualization software, Engineering
XSOFT-CODESYS-3, PLC-Programming software, Engineering
XSOFT-CODESYS-3, Visualization software, Engineering
EPAM, Visualization software, Engineering
XSOFT-CODESYS-2, PLC-Programming software, Engineering
GALILEO, Visualization software, Engineering
XSOFT-CODESYS-3, PLC-Programming software, Engineering
XSOFT-CODESYS-3, Visualization software, Engineering
EPAM, Visualization software, Engineering
Voltage type
DC
Condiciones ambientales y mecánicas
Shock resistance
Mechanical, According to IEC/EN 60068-2-27
Vibration resistance
According to IEC/EN 60068-2-6
Condiciones climáticas ambientales
Air pressure
795 - 1080 hPa (operation)
Ambient operating temperature - min
0 °C
Ambient operating temperature - max
50 °C
Operating temperature - min
0 °C
Operating temperature - max
50 °C
Compatibilidad electromagnética
Voltage dips
5 ms from undervoltage (19.2 V DC)
≤ 10 ms from rated voltage (24 V DC)
≤ 10 ms from rated voltage (24 V DC)
Especificaciones eléctricas
Permissible voltage
19.2 - 30 V DC, effective (rated operating voltage -20 %/+25 %)
18 - 31.2 V DC, battery powered (rated operating voltage -25 %/+30 %)
35 V DC (for a duration of < 100 ms)
18.0 - 31.2 V DC, absolute with ripple
18 - 31.2 V DC, battery powered (rated operating voltage -25 %/+30 %)
35 V DC (for a duration of < 100 ms)
18.0 - 31.2 V DC, absolute with ripple
Power consumption
Max. 10 W
2.5 W (USB Slave to USB Host)
9.5 W total
7 W
2.5 W (USB Slave to USB Host)
9.5 W total
7 W
Rated control supply voltage
24 V DC (UAUX, -20 %/+25 %)
24 V DC (UPOW, -20 %/+25 %)
24 V DC (UPOW, -20 %/+25 %)
Rated operational voltage
24 V DC (power-supply - safety extra low voltage)
Supply voltage at AC, 50 Hz - min
0 VAC
Supply voltage at AC, 50 Hz - max
0 VAC
Supply voltage at DC - min
20.4 VDC
Supply voltage at DC - max
28.8 VDC
Comunicación
Interfaces
Ethernet (100Base-TX/10Base-T)
USB 2.0 device (not galvanically isolated)
USB 2.0 host (1.5 - 12 Mbit/s, not galvanically isolated)
USB 2.0 device (not galvanically isolated)
USB 2.0 host (1.5 - 12 Mbit/s, not galvanically isolated)
Number of slots
1 (for SD-Card)
Protocol
TCP/IP
EtherNet/IP
Other bus systems
MODBUS
EtherNet/IP
Other bus systems
MODBUS
Pantalla
Display contrast ratio
300:1
Display lighting
LED
Dimmable via software
Dimmable via software
Display type
Standard front with standard membrane (fully enclosed)
Color display, TFT
TFT
Color display, TFT
TFT
Luminance intensity
250 cd/m²
Number of colors of the display
65536
Screen size (diagonal)
5.7 in
Touch technology
Resistive touch
Glass with film touch sensor
Touch sensor (glass with foil), Resistive touch protective screen
Glass with film touch sensor
Touch sensor (glass with foil), Resistive touch protective screen
Entrada/salida
Resolution
Seguridad
Explosion safety category for dust
ATEX dust-ex-protection, in relation to CE
ATEX dust-ex-protection, II 3D Ex II T70°C IP5x: Zone 22, Category 3D
ATEX dust-ex-protection, II 3D Ex II T70°C IP5x: Zone 22, Category 3D
Potential isolation
Supply voltage UAUX: no
Power supply: no
Power supply: no
Protection against polarity reversal
Yes
Yes, for supply voltage (Siemens MPI optional)
Yes, for supply voltage (Siemens MPI optional)
Sistema
Backup time
10 years, typ. (time at zero voltage)
Memory
128 MByte internal NAND-Flash (can be used for data backup)
64 MByte internal DRAM (OS, Program and data memory)
32 kByte internal NVRAM (retained data)
SD Memory Card Slot: SDA Specification 1.00 (External)
64 MByte internal DRAM (OS, Program and data memory)
32 kByte internal NVRAM (retained data)
SD Memory Card Slot: SDA Specification 1.00 (External)
Memory capacity
64,000 kByte
Operating system
Windows CE 5.0 (license included)
Processor
RISC CPU, 32 Bit, 400 MHz
Verificación del diseño
Equipment heat dissipation, current-dependent Pvid
9.5 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
9.5 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Datasheet - PDF
