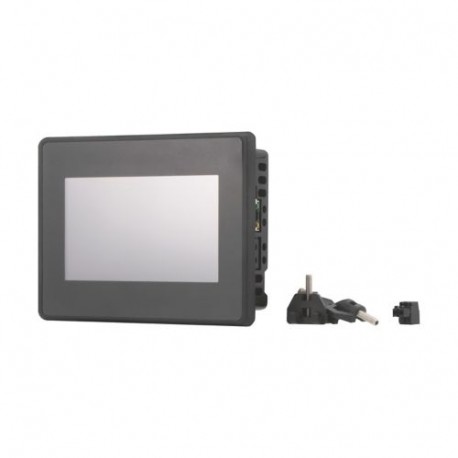

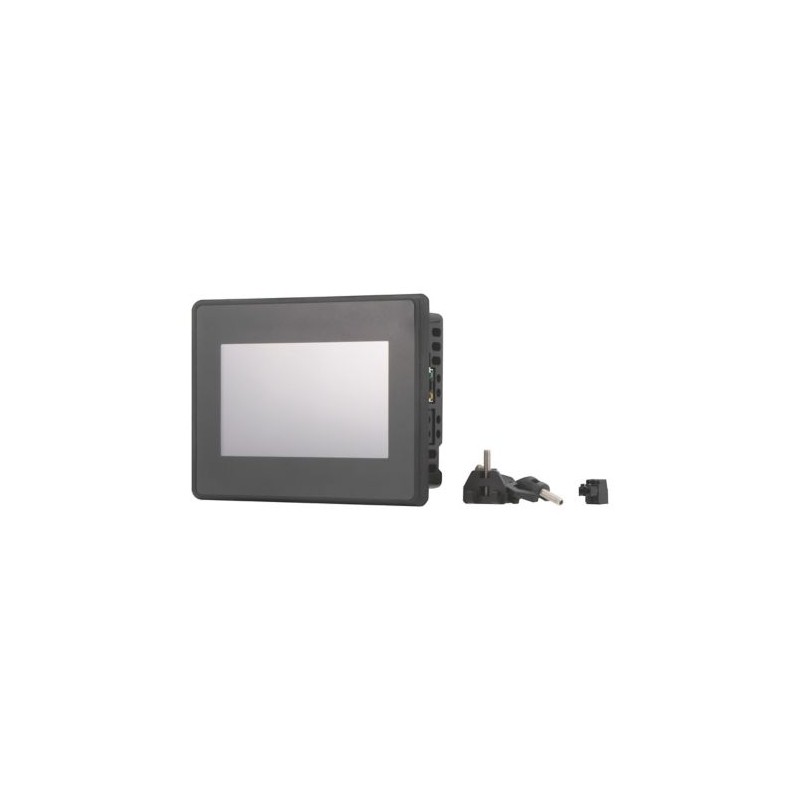

EASY-RTD-DC-43-03B2-00 EP-401057 Y7-401057 EATON ELECTRIC easyE Remote Touch Display 4.3", 24 V DC
EASY-RTD-DC-43-03B2-00
EP-401057
Y7-401057
EATON-MOELLER
easyE Remote Touch Display 4.3', 24 V DC
Eaton easyE Remote Touch Display, Advanced, 24 V DC, 4.3 inch, TFTcolor, 480x272 px, resistive, Ethernet
Nano Controladores Easy E4
Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER
Más vendidos
▲Más Información
▲Especificaciones generales
Product Name
Eaton EASY Touch panel
Catalog Number
EP-401057
EAN
4015082965099
Product Length/Depth
136 mm
Product Height
38 mm
Product Width
101 mm
Product Weight
0.206 kg
Compliances
CE Marked
RoHS conform
DNV
Eaton supports the product until its end of life
RoHS conform
DNV
Eaton supports the product until its end of life
Certifications
UL File No.: E205091
UL 61010-2-201
UL 61010-2-201
Catalog Notes
No PLC function possible
Model Code
EASY-RTD-DC-43-03B2-00
Características y funciones
Enclosure material
Insulated material
Fitted with:
Alpha numeric keyboard
Color display
1 x Ethernet 100base-TX/10base-T (built-in interface)
1 x USB host (built-in interface)
Color display
1 x Ethernet 100base-TX/10base-T (built-in interface)
1 x USB host (built-in interface)
General
Degree of protection
IP20, rear (according to EN 60529-1)
Display type
TFT
Standard front with standard membrane (fully enclosed)
Standard front with standard membrane (fully enclosed)
Number of colors of the display
64000
Product category
Touch display for easyE4
Screen size (diagonal)
4.3 in
Software
Advanced: a user defined visualization to be programmed via easySoft and pre-installed application software which mirrors the display and keypad of an easyE4 base unit.
Touch technology
Resistive touch
Touch sensor (glass with foil), Resistive touch protective screen
Touch sensor (glass with foil), Resistive touch protective screen
Used with
EASY-E4
Voltage type
DC
Condiciones ambientales y mecánicas
Shock resistance
15 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 18 Impacts
Vibration resistance
According to IEC/EN 60068-2-6
Condiciones climáticas ambientales
Ambient storage temperature - min
-20 °C
Ambient storage temperature - max
60 °C
Environmental conditions
Condensation: prevent with appropriate measures
Compatibilidad electromagnética
Voltage dips
5 ms from undervoltage (19.2 V DC)
≤ 10 ms from rated voltage (24 V DC)
≤ 10 ms from rated voltage (24 V DC)
Especificaciones eléctricas
Permissible voltage
18.0 - 31.2 V DC, absolute with ripple
35 V DC (for a duration of < 100 ms)
18 - 31.2 V DC, battery powered (rated operating voltage -25 %/+30 %)
19.2 - 30 V DC, effective (rated operating voltage -20 %/+25 %)
35 V DC (for a duration of < 100 ms)
18 - 31.2 V DC, battery powered (rated operating voltage -25 %/+30 %)
19.2 - 30 V DC, effective (rated operating voltage -20 %/+25 %)
Power consumption
7.2 W
Rated operational voltage
24 V DC (power-supply - safety extra low voltage)
Supply voltage at AC, 50 Hz - min
0 VAC
Supply voltage at AC, 50 Hz - max
0 VAC
Supply voltage at DC - min
19.2 VDC
Supply voltage at DC - max
30 VDC
Comunicación
Memory capacity
0 kByte
Interfaces
Ethernet (100Base-TX/10Base-T)
USB 2.0 host (not galvanically isolated)
USB 2.0 host (not galvanically isolated)
Verificación del diseño
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Static heat dissipation, non-current-dependent Pvs
7.2 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
