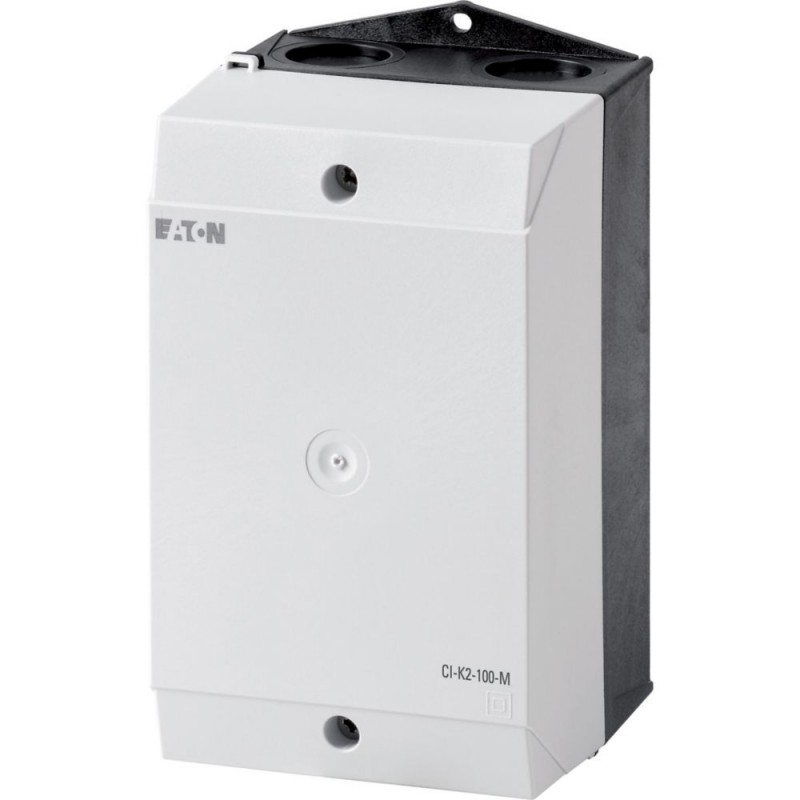

CI-K2-100-M 206893 Y7-206893 EATON ELECTRIC Caja Aislan.,Placa,100x160x100 Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

CI-K2-100-M 206893 Y7-206893 EATON ELECTRIC Caja Aislan.,Placa,100x160x100

CI-K2-100-M

206893

Y7-206893

EATON-MOELLER

Caja Aislan.,Placa,100x160x100

Eaton Moeller® series CI-K Insulated enclosure, HxWxD=160x100x100mm, +mounting plate CI-K2-100-M

Caja aislada, Con placa de montaje, Gama de productos: Cajas pequeñas CI-K, Cajas básicas, Unidad individual, Grado de protección: Frontal IP65, IP65, con entrada de cable de empuje, Material: Policarbonato reforzado con fibra de vidrio, Color: Base de la carcasa RAL 9005, negro, Solo operador RAL 7035, gris claro, Descripción: Aberturas métricas de entrada de cable superior, inferior y en la placa trasera, Entrada de cable de control, Indicador de lámpara... se puede montar en la base perforada M20/M25, Entrada de cable: Diafragma de entrada de cable de empuje, Dimensiones Ancho: 100 mm, Altura: 160 mm, Profundidad: 100 mm, Profundidad de montaje con placa de montaje: 79 mm, Normas: IEC/EN 60529 , DIN EN 62208

Más detalles


Componentes industriales de baja tensión > Carcasa vacía para aparamenta

Cajas aislantes

Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER

Precio total: $33.65
Precio unitario: $33.65
Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Si nuestro precio no es el mejor solicítenos presupuesto Solicitar presupuesto

productos relacionados

▲

Más vendidos

▲

Más Información

▲


Especificaciones generales

Product Name
Eaton Moeller® series CI-K Insulated enclosure
Catalog Number
206893
EAN
4015082068936
Product Length/Depth
181 mm
Product Height
100 mm
Product Width
100 mm
Product Weight
0.498 kg
Certifications
IEC 60068-2-11
UL94: VO/1.5 mm thickness
UL94: HB
IEC/EN 60529
DIN EN 62208
Catalog Notes
Lamp indicator L‐… can be mounted in base knock-out M20/M25
Model Code
CI-K2-100-M

Características y Funciones

Enclosure color
Light gray, Cover (RAL 7035)
Light gray, Operator (RAL 7035)
Black (RAL 9005)
Enclosure material
Plastic
1 Ω x 10¹³ (Surface resistance to IEC 60093)
Features
Halogen free
UV resistance beneath protective shield
Fitted with:
Control cable entry
Mounting plate
Knockouts
Metric cable entry knockouts at the top, bottom and back plate
Push-through cable entry diaphragm

General

Cover material
Glass-fiber reinforced polycarbonate
Degree of protection
IP65
NEMA Other
Degree of protection (front side)
IP65
Dielectric strength
30 kV/mm, according to IEC 60243-1
Flammability characteristics
960 °C/1 mm thickness (base, cover; glow wire to VDE 0471 Part 2)
650 °C/1 mm thick (push-through membrane and seal material) to VDE 0471 Part 2)
Model
Surface mounting
Mounting depth
79 mm
Mounting weight capacity - max
0.7 kg
Product category
Empty enclosures
Suitable for
Emergency stop
Surface treatment
Resistant to corrosion
Track resistance
CTI 175 (base, to IEC 60112)
CTI 175 (cover, to IEC 60112)
Type
Basic enclosure
Water consumption
0.29 % (According to DIN EN ISO 62)

Condiciones ambientales y mecánicas

Environmental resistance
Resistant against alcohol
Partly resistant to alcohol
Not resistant to benzene
Resistant against benzene
Chemical resistant (Base, Cover)
Not resistant to alkalis
Chemical resistant (Push-through membrane (CI-K1/CI-K2) and sealing material)
Resistant against mineral oil
Resistant against alkalis
Resistant against gasoline
Resistant against salt solutions
Resistant against acids (< 10%)
Partly resistant to acids (> 10%)
Partly resistant to benzene
Resistant against greases
Not resistant to Mineral oil
Partly resistant to greases
Impact resistance
IK06 (according to EN 50102)
Temperature resistance
-40 - 120 °C (enclosure)
-40 - 80 °C (gasket)

Condiciones climáticas ambientales

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30

Verificación del diseño

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
12.5 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
Radiated heat dissipation with separate mounting
12.5 W (at an ambient temperature of 20 °C)
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Not applicable.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Meets the product standard's requirements.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 206893 Interruptores de baja tensión (EC000712)
Característica Valor
Material de carcasa (EF001596) Plástico
Anchura (EF000008) 100 mm
Altura (EF000040) 100 mm
Profundidad (EF000049) 181 mm
Con tapa transparente (EF001094) No
Apto para parada de emergencia (EF001433) Sí
Modelo (EF000010) Montaje
Grado de protección (IP) (EF005474) IP65
Grado de protección (NEMA) (EF011959) Otros

Datasheet - PDF

▲
Título: Tamaño: Tipo:
PDF CATALOGUE EATON EN .pdf 38 Mbytes
CI-K2-100-M Y7-206893 206893 ES_225325.pdf 1 Mbytes CI-K2-100-M Y7-206893 206893 ES_225325.pdf
