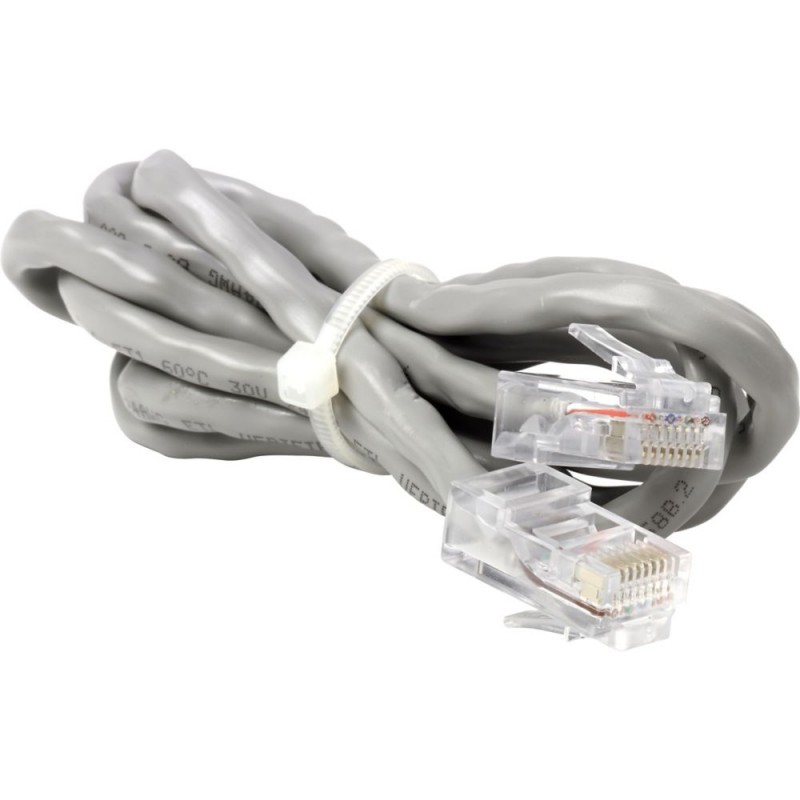

DXG-CBL-3M0 730-32035-00P EATON ELECTRIC Cable para conexión de teclado externo Para DG1 3 m
DXG-CBL-3M0
7303203500P
EATON-MOELLER
Cable para conexión de teclado externo; Para DG1; 3 m
Eaton DG1 3 m connection cable for control for DG1 variable frequency drives
Convertidores de Frecuencia Power XL
* Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER
Más Información
▲Especificaciones generales
Product Name
Eaton DXG Connection cable
Catalog Number
730-32035-00P
EAN
4015081721689
Product Length/Depth
55 mm
Product Height
165 mm
Product Width
135 mm
Product Weight
0.146 kg
Compliances
CE
Model Code
DXG-CBL-3M0
Product specifications
Product Category
Accessories
Type
Patch cord with RJ45 plugs, 8 pole
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Used with
DG1
DM1
DM1
Accessory/spare part type
Cable
Datasheet - PDF
▲| Título: | Tamaño: | Tipo: |
|---|---|---|
| PDF CATALOGO EATON CONTROL Y AUTOMATIZACION ES.pdf | 9 Mbytes |
|
| DXG-CBL-3M0 DXG-CBL-3M0 7303203500P FR_730-32034-00P.pdf | 4 Mbytes |
|
