> EATON - MOELLER series>Interruptores de posición >LS-XLS 290177 ELECTRIC Cabezal de accionamiento Palanca de rodillo Corta
Anterior producto Siguiente producto

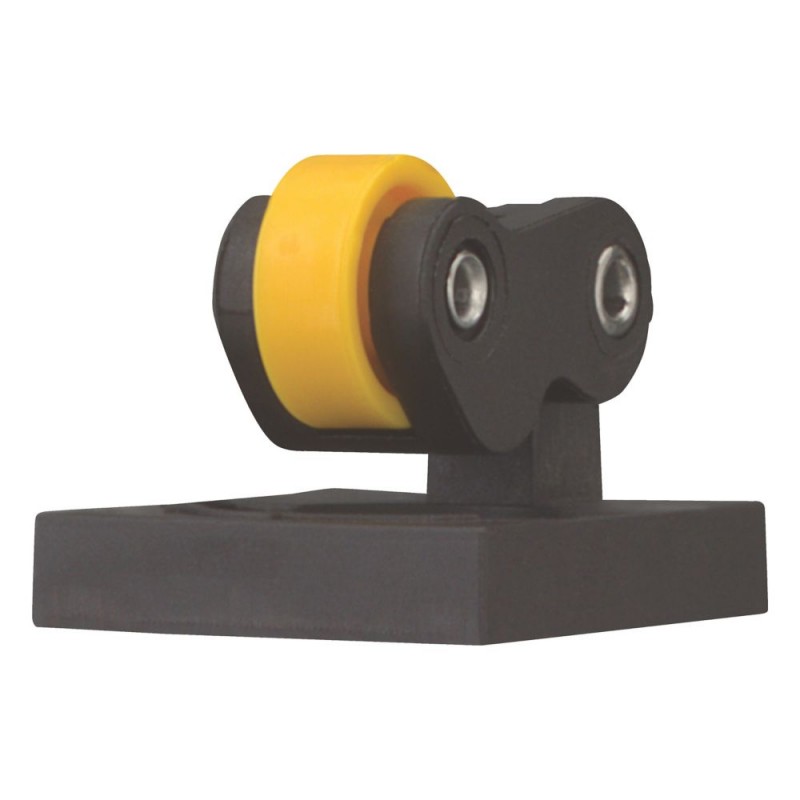

LS-XLS 290177 EATON ELECTRIC Cabezal de accionamiento Palanca de rodillo Corta Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

LS-XLS 290177 EATON ELECTRIC Cabezal de accionamiento Palanca de rodillo Corta

LS-XLS

290177

EATON-MOELLER

Cabezal de accionamiento; Palanca de rodillo; Corta

Eaton Moeller® series LS Roller lever, short

Más detalles


Sensores > Cabezal de accionamiento de interruptor de posición / bisagra

Interruptores de posición

* Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER

Precio total: $6.87
Precio unitario: $6.87

Cantidad Precio
1+$6.87
2+$6.88
*Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Si nuestro precio no es el mejor solicítenos presupuesto Solicitar presupuesto

Más Información

▲


Especificaciones generales

Product Name
Eaton Moeller® series LS Roller lever
Catalog Number
290177
EAN
4015082901776
Product Length/Depth
33.5 mm
Product Height
32 mm
Product Width
31 mm
Product Weight
0.005 kg
Certifications
CSA
CSA Class No.: 3211-03
UL Category Control No.: NKCR
CE
CSA File No.: 012528
CSA-C22.2 No. 14
IEC/EN 60947-5
UL
UL File No.: E29184
UL 508
Catalog Notes
Short
Model Code
LS-XLS

Features & Functions

Design
EN 50047 Form E
Features
The operating head can be rotated 90° to enable adaptation to the specified approach direction

General

Product category
Roller lever
Type
Operating heads

Climatic environmental conditions

Ambient operating temperature - min
-40 °C
Ambient operating temperature - max
70 °C

Actuator

Actuator type
Roller lever

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

Datasheet - PDF

▲
Título: Tamaño: Tipo:
PDF CATALOGO EATON CONTROL Y AUTOMATIZACION ES.pdf 9 Mbytes
LS-XLS LS-XLS 290177 ES_106790.pdf 2 Mbytes LS-XLS LS-XLS 290177 ES_106790.pdf
