U-CI43X 062655 Y7-62655 EATON ELECTRIC Base lados lisos HxWxD 250x375x120mm

U-CI43X

062655

Y7-62655

EATON-MOELLER

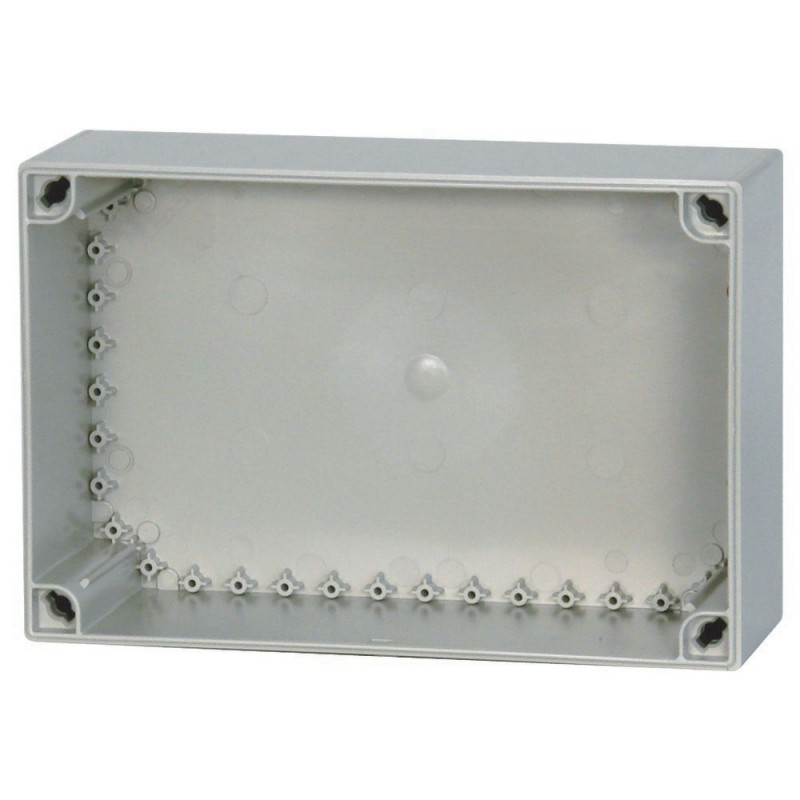

Base; lados lisos; HxWxD=250x375x120mm

Eaton xEffect Ci Enclosures Switch- & Controlgear Enclosure. Base, smooth sides, HxWxD=250x375x120mm

Base de caja individual x, material característico policarbonato, resistente a los impactos, lados lisos, sin orificios, para cualquier dimensión de perforación, espesor de pared = 6,5 mm, RAL 7035, posibilidad de montaje directo en la pared sin accesorios adicionales

Más detalles


Sistemas de distribución eléctrica (incluidos cuadros de control) > Cajas vacías

Cajas aislantes

* Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER

Precio total: $107.05
Precio unitario: $107.05

Cantidad Precio
1+$107.05
3+$94.34
5+$87.85
7+$84.61
10+$82.07
*Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Si nuestro precio no es el mejor solicítenos presupuesto Solicitar presupuesto

Comprados juntos habitualmente

Más vendidos

Más Información



Especificaciones generales

Product Name
Eaton xEffect Ci Enclosures Switch- & Controlgear Enclosure
Catalog Number
062655
EAN
4015080626558
Product Length/Depth
150 mm
Product Height
250 mm
Product Width
375 mm
Product Weight
1.692 kg
Compliances
RoHS conform
Certifications
EN 61439-2
EN 62208
Model Code
U-CI43X

Product specifications

Special features
Distance frame for CI45... →#110103Flanges →#024355Smooth sidesWithout knockouts
Type
Basic enclosureEnclosure basesxEnergy Safety Ci
Features
Cover with overpressure release
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
Meets the product standard's requirements.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
960 °C
10.2.4 Resistance to ultra-violet (UV) radiation
Not relevant to indoor installations.
10.2.5 Lifting
10 kg per enclosure with support frame and lifting aid met; assembled and secured as per the latest applicable instruction leaflet.
10.2.6 Mechanical impact
IK10
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
IP65, with cover
10.4 Clearances and creepage distances
Is the panel builder's responsibility.
10.5 Protection against electric shock
Protection class 2, therefore not applicable.
10.6 Incorporation of switching devices and components
Is the panel builder's responsibility.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Ui = 1000 V AC
10.9.3 Impulse withstand voltage
8 kV
10.9.4 Testing of enclosures made of insulating material
Meets the product standard's requirements.
Accessory/spare part type
Individual enclosure bottoms
Degree of protection
IP65
IK10
Other
Enclosure material
Plastic
Surface protection
Other
Circuit integrity
Other
Base type
Plain
Unit type
Modular system
Built-in depth
200 mm
Heat diss. ambient 35°C delta T:20°C wall mount individ. encl. top (IEC 60890)
19 W
Heat diss. ambient 35°C delta T: 20°C wall mount middle encl. top (IEC 60890)
17 W
Heat diss. ambient 35°C delta T:20°C wall mount starting encl. top (IEC 60890)
18 W
Heat diss. ambient 35°C delta T:35°C wall mount individ. encl. top (IEC 60890)
38 W
Heat diss. ambient 35°C delta T: 35°C wall mount middle encl. top (IEC 60890)
34 W
Heat diss. ambient 35°C delta T:35°C wall mount starting encl. top (IEC 60890)
36 W
Color
Gray
Cover/door model
Closed
Cover/door type
Optional
None
Number of openings (flange plates)
0
Plate thickness (cabinet)
9 mm
Plate thickness (cover/door)
6 mm
RAL-number
7035
Width in number of modular spacings
15
Cable entry type
Top and bottom
Drill as required
Transverse
Mounting method
Surface mounted (plaster)
Number of rows
0
Protection class
II
Number of modules
1
Internal depth
100 mm
Nominal current
1600 A
Number of conduit inlets
0
Suitable for
Outdoor use
Lightning protection

ETIM for 062655 Sistemas de distribución eléctrica (incluidos cuadros de control) (EC000058)
Característica Valor
Método de montaje (EF000003) Montado superficial (escayola)
Tipo de cobertura (EF000339) Opcional
Versión de la cubierta (EF009212) Cerrado
Tipo de puerta (EF004464) Ninguno
Tapa/puerta transparente (EF006244) No
Con candado (EF006306) No
Corriente nominal (In) (EF008873) 1600 A
Altura (EF000040) 250 mm
Anchura (EF000008) 375 mm
Profundidad (EF000049) 150 mm
Profundidad de instalación (EF000218) 200 mm
Profundidad interna (EF001131) 100 mm
Espesor del material de la caja (EF009170) 9 mm
Espesor puerta/tapa (EF009171) 6 mm
Color (EF000007) Gris
Número RAL (EF000116) 7035
Número de módulos (EF004427) 1
Número de filas (EF000266) 0
Ancho en número de espacios modulares (EF002950) 15
Número de aberturas para placas-brida (EF009554) 0
Posibilidad de extensión (EF001088) No
Número de entradas de conductos de cables (EF000437) 0
Material de carcasa (EF001596) Plástico
Tratamiento de superficie (EF000139) Otros
Con placa de montaje (EF000118) No
Apto para uso en exteriores (EF003532)
Apto para la protección contra rayos (EF007800)
Grado de protección (IP) (EF005474) IP65
Grado de protección (NEMA) (EF011959) Otros
Clase de protección según IEC 61140 (EF000004) II
Resistencia al impacto (IK) (EF004293) IK10
Integridad del circuito (EF001613) Otros
Tapa con alivio de sobrepresión (EF015940)
