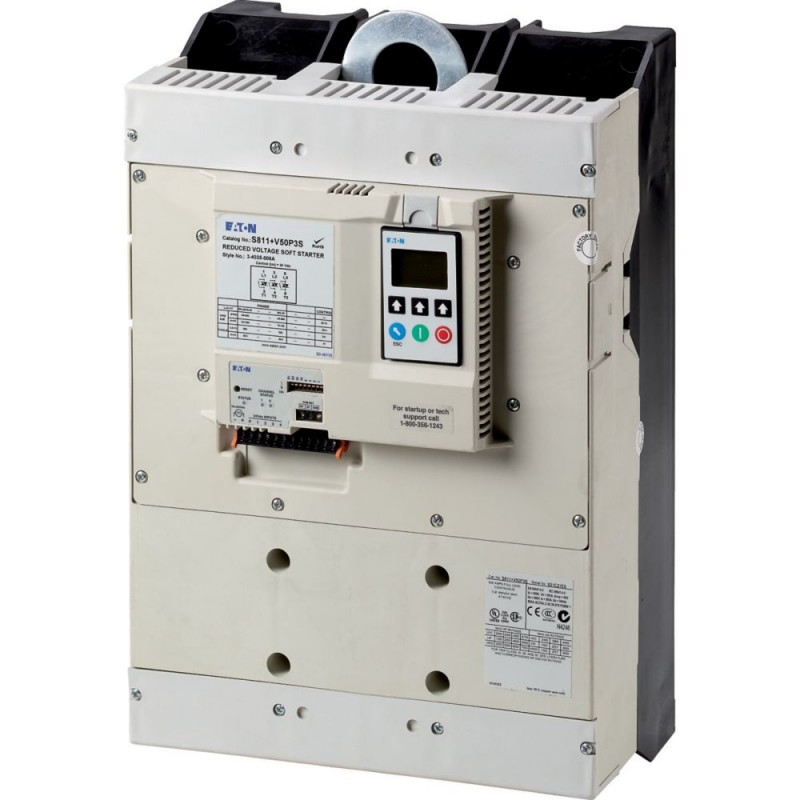

S811+V50N3S 168999 S811PLUSV50N3S EATON ELECTRIC Arrancador suave Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

S811+V50N3S 168999 S811PLUSV50N3S EATON ELECTRIC Arrancador suave

S811+V50N3S

168999

S811PLUSV50N3S

EATON-MOELLER

Arrancador suave

Arrancador suave, 500 A, 200 - 600 V AC, Us= 24 V DC, con unidad de control, tamaño de bastidor V

Arrancador suave, Descripción: Con contactos de derivación internos, Función: Arrancador suave para cargas trifásicas, con unidad de control, Tensión de alimentación de red (50/60 Hz): ULN= 200 - 600 V AC, Tensión de alimentación: Us= 24 V DC, Tensión de control: UC= 24 V DC, Potencia nominal asignada al motor (conexión estándar, en línea) a 400 V, 50 Hz: P= 250 kW, a 460 V, 60 Hz: P= 400 HP, Corriente nominal de funcionamiento AC-53: Ie= 500 A, Corriente nominal de funcionamiento AC-53, In-Delta: Ie= 865 A, Clase de arranque: CLASE 10 (sustitución estrella-triángulo), CLASE 20 (servicio de arranque pesado 3 x Ie durante 45 s), CLASE 30 (6 x Ie durante 30 s), Tensión nominal de funcionamiento: Ue= 200 V, 230 V, 400 V, 480 V, 600 V , Conexión a SmartWire-DT: no, Tamaño de marco: V, Información de pedido: Se requieren bloques de terminales para los terminales para tamaños de marco T, U y V -> Accesorios, Normas: IEC/EN 60947-4-2, UL 508, CSA22.2-14-1995, GB14048

Más detalles


Componentes industriales de baja tensión > Arrancador progresivo

Arrancadores Suaves Alto Rendimiento

Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER

* Este artículo podría estar obsoleto. Si está interesado solicite presupuesto y le indicaremos si quedan unidades disponibles. En caso de que no queden uno de nuestros técnicos buscará una alternativa sumunistrable de características similares.

Si nuestro precio no es el mejor solicítenos presupuesto Solicitar presupuesto

Más vendidos

▲

Más Información

▲


Especificaciones generales

Product Name
Eaton S811 Soft starter
Catalog Number
168999
EAN
4015081654932
Product Length/Depth
187.8 mm
Product Height
420.8 mm
Product Width
280.6 mm
Product Weight
41.4 kg
Certifications
C-Tick
CSA
CSA File No.: LR 353
CSA Class No.: 3211-06
CSA22.2-14-1995
IEC/EN 60947-4-2
CSA-C22.2 No. 14
UL
UL File No.: E202571
CE
GB14048
CCC
UL Category Control No.: NMFT
UL 508
Model Code
S811+V50N3S

Features & Functions

Fault memory
10 Faults
Fitted with:
Display
Motor overload protection
Internal bypass
Internal bypass contacts
Functions
Overload monitoring
Underload monitoring
Soft start function
Suppression of DC components for motors
Current limitation
Min. ramp time 1 s - fast switching (semiconductor contactor)
Potential isolation between power and control sections
Single direction
Suppression of closing transients
Interfaces
Modbus RTU (built-in)

General

Class
Adjustable
Connection to SmartWire-DT
No
Degree of protection
IP20
NEMA Other
Frame size
V
Mains voltage - min
200 V
Mains voltage - max
600 V
Mounting position
As required
Overvoltage category
II
Pollution degree
3
Radio interference class
Class A (EN 55011)
Rated impulse withstand voltage (Uimp)
4000 V
Rated insulation voltage (Ui)
660 V
Shock resistance
15 g, Mechanical
Startup class
CLASS 30 (6 x Iₑ for 30 s)
CLASS 10 (star-delta replacement)
CLASS 20 (heavy starting duty 3 x Iₑ for 45 s)
Suitable for
Branch circuits, not as BCPD, (UL/CSA)
Type
Soft starter for three-phase loads, with control unit
Voltage type
DC

Climatic environmental conditions

Altitude
Above 2000 m with 0.5 % derating per 100 m
Max. 2000 m
Ambient operating temperature - max
50 °C
Ambient operating temperature - min
-30 °C
Ambient storage temperature - max
70 °C
Ambient storage temperature - min
-50 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-3

Main conducting paths

Overload cycle
AC-53a: 4.0 - 32: 99 - 3
Rated operational current (Ie) at AC-53
500 A
Rated operational current (Ie) at AC-53, in-delta
865 A
Rated operational voltage (Ue) - min
200 V
Rated operational voltage (Ue) - max
600 V
Short-circuit protection rating
NZMN3-S500, Type “1” coordination, Main conducting paths
Supply frequency
50/60 Hz, fLN, Main circuit
Voltage rating - max
600 V

Motor rating

Assigned motor power at 200/208 V, 60 Hz, 3-phase
150 HP
Assigned motor power at 220/230 V, 60 Hz, 3-phase
200 HP
Assigned motor power at 460/480 V, 60 Hz, 3-phase
400 HP
Assigned motor power at 600 V, 60 Hz, 3-phase
500 HP
Assigned motor power in-delta at 220/230 V, 60 Hz
350 HP
Assigned motor power in-delta at 460/480 V, 60 Hz
750 HP
Assigned motor power in-delta at 575/600 V, 60 Hz
850 HP
Rated operational power at 220/230 V, 50 Hz
160 kW
Rated operational power at 400 V, 50 Hz
250 kW
Rated operational power at 500 V, 50 Hz
315 kW
Rated operational power in-delta at 220/230 V, 50 Hz
200 kW
Rated operational power in-delta at 400 V, 50 Hz
450 kW
Rated operational power in-delta at 500 V, 50 Hz
450 kW

Terminal capacities

Terminal capacity (flexible with ferrule)
2 x (120 - 240) mm², Main cables
6 x (120 - 240) mm², Main cables
2 x (1 - 2.5) mm², Control circuit cables
1 x (2.5 - 4) mm², Control circuit cables
4 x (70 - 240) mm², Main cables
Terminal capacity (solid)
6 x (120 - 240) mm², Main cables
2 x (120 - 240) mm², Main cables
4 x (70 - 240) mm², Main cables
2 x (1 - 2.5) mm², Control circuit cables
1 x (2.5 - 4) mm², Control circuit cables
Terminal capacity (solid/stranded AWG)
2 x (4 - 500 kcmil), Main cables
4 x (4 - 500 kcmil), Main cables
1 x (14 - 12), Control circuit cables
2 x (14 - 12), Control circuit cables
6 x (4 - 500 kcmil), Main cables
Terminal capacity (stranded)
2 x (120 - 240) mm², Main cables
4 x (70 - 240) mm², Main cables
6 x (120 - 240) mm², Main cables
2 x (1 - 2.5) mm², Control circuit cables
1 x (2.5 - 4) mm², Control circuit cables
Screwdriver size
0.6 x 3.5 mm, Terminal screws, Control circuit cables
Tightening torque
0.4 Nm, Screw terminals, Control circuit cables

Control circuit

Current consumption
150 mA, Control circuit, Digital inputs, External 24 V
10 A/150 ms, Control circuit, Regulator supply at peak performance (close bypass) at 24 V DC
100 mA, Control circuit, Digital inputs, External 24 V (no-load)
1400 mA, Control circuit, Regulator supply
Drop-out time
100 ms, DC operated
Drop-out voltage
0 - 3 V, DC operated
Pick-up time
100 ms at DC
Pick-up voltage
21.6 - 26.4 V DC
Rated control supply voltage (Us) at AC, 50 Hz - max
0 V
Rated control supply voltage (Us) at AC, 50 Hz - min
0 V
Rated control supply voltage (Us) at AC, 60 Hz - min
0 V
Rated control supply voltage (Us) at AC, 60 Hz - max
0 V
Rated control supply voltage (Us) at DC - min
24 V
Rated control supply voltage (Us) at DC - max
24 V

Input/Output

Input current
4 - 20 mA (Analog inputs)
Number of inputs
1 (current input)
Number of outputs
2 Relay Outputs (programmable)
Output voltage
120 V AC/DC (relay outputs)
Protection
Finger and back-of-hand proof, Protection against direct contact
Rated control voltage (Uc)
24 V DC
24 V DC (-10 %/+10 %)
Rated operational current (Ie) at AC-11
3 A

Soft start function

Application
Delay time
0 - 60 s, Soft start function, Ramp times
Kickstart
Max. 2000 ms (Kickstart Duration)
100% (Kickstart voltage)
Ramp/run-up time
180 s
Start voltage
Max. 85 %, Soft start function, Start voltage = turn-off voltage

Design verification

Equipment heat dissipation, current-dependent Pvid
25 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
500 A
Static heat dissipation, non-current-dependent Pvs
25 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 168999 Interruptores de baja tensión (EC000640)
Característica Valor
Corriente de funcionamiento nominal Ie a 40 ºC Tu (EF007039) 500 A
Tensión de funcionamiento nominal Ue (EF002418) 200 V
Potencia nominal motor trifásico, circuito estándar de 230 V (EF007053) 160 kW
Potencia nominal motor trifásico, circuito estándar d 400 V (EF007054) 250 kW
Potencia nominal de motor trifásico de raíz 3, de 230 V (EF007055) 200 kW
Potencia nominal de motor trifásico de raíz 3, de 400 V (EF007056) 450 kW
Función (EF000030) Dirección única
Puenteado interno (EF009214) Sí
Con pantalla (EF000458) Sí
Regulación del par (EF009215) No
Temperatura ambiente nominal sin reducción de potencia (EF007074) 50 °C
Voltaje nominal de suministro piloto piloto para CA 50 Hz (EF003978) 0 V
Voltaje nominal de suministro piloto piloto para CA 60 Hz (EF003979) 0 V
Voltaje nominal de suministro piloto de piloto para CC (EF003980) 24 V
Tipo de tensión de accionamiento (EF008242) CC
Protección contra sobrecargas del motor integrada (EF007297) Sí
Clase de disparo (EF006668) Regulable
Grado de protección (IP) (EF005474) IP20
Grado de protección (NEMA) (EF011959) Otros
