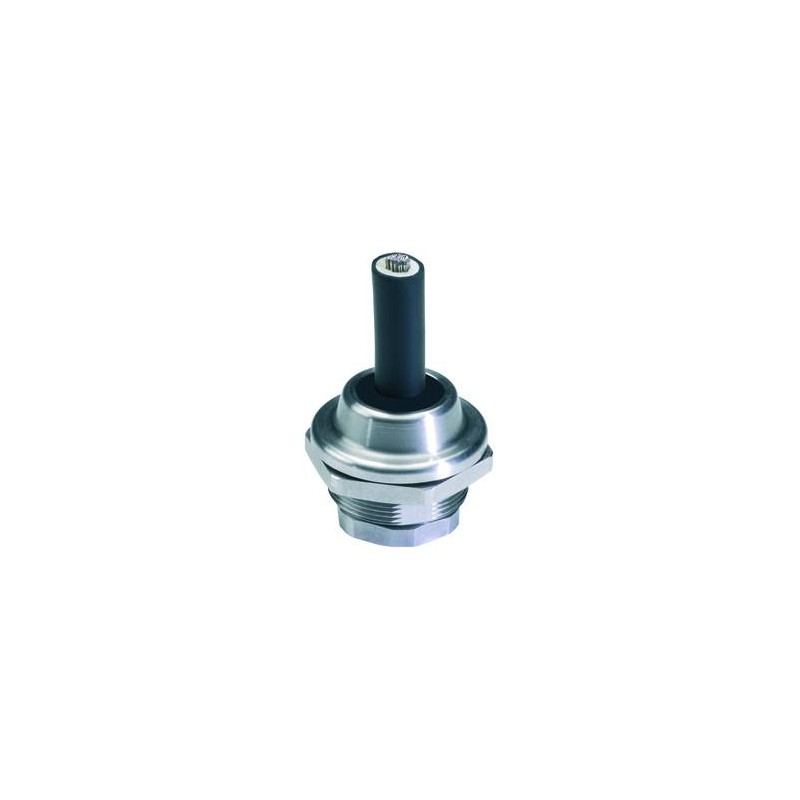

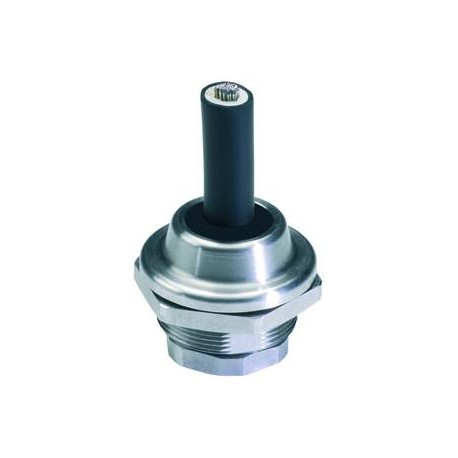

HGSM 40-E Pack 10101858 WISKA AISI 303 stainless glands, IP69K pack together for 16 to 29mm range, M40 thread
HGSM 40-E Pack
10101858
WISKA
AISI 303 stainless glands, IP69K pack together for 16 to 29mm range, M40 thread
Cable gland, stainless steel, M40
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Stainless steel A2 (1.4305) |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 120 °C |
| Protection class | IP69, IP68 (5 bar 30 min) |
| Thread type | M |
| Ø Connection thread D | 40 |
| Lead | 1,5 |
| Ø cable diameter min | 16 mm |
| Ø cable diameter max | 29 mm |
| Key width SW1 | 35 mm |
| Key width SW2 | 46 mm |
| Collar diameter E1 | 37 mm |
| Collar diameter E2 | 50 mm |
| LxWxS (max) | 37x40x10mm |
| BxL | 46x14mm |
| Total length TL | 33 mm - 47 mm |
| Advice | Incl. sealing rings, locknut |
| WISKA-Order no. | 10101858 |
| Type | HGSM 40-E pack |
| Packing unit | 1 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 12 Mbytes |
|
| HGSM 40-E Pack 10101858 EN_10101858.pdf | 261 Kbytes |
|
