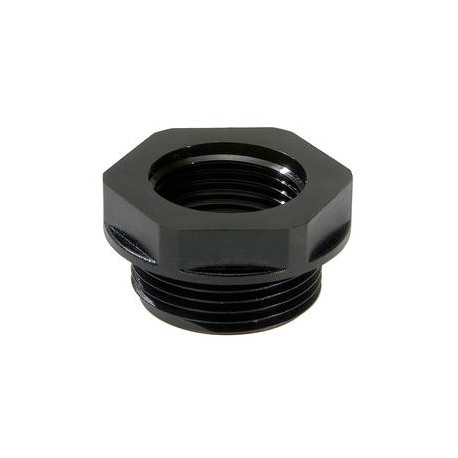

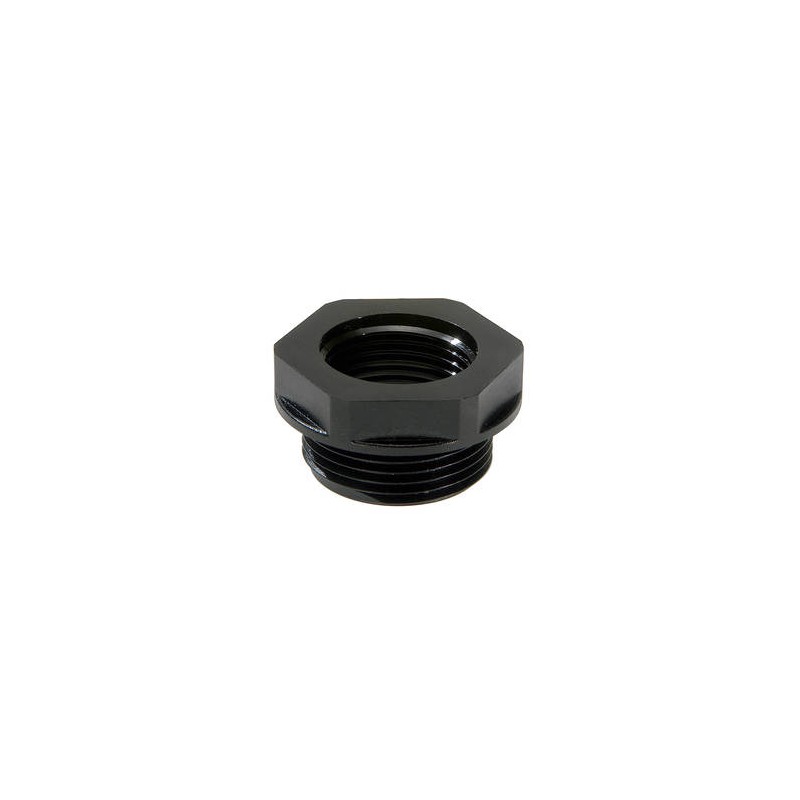

EX-KRM 40/32
10064731
WISKA
25
Hexagonal reduction. Black PA "ATEX" IP66, thread ext. M40 threaded int. M32
Ex-reduction adaptor, polyamide, M40-M32
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Material | Polyamide, fibre reinforced |
Material sealing gasket | EPDM |
Temp. range min | -40 °C |
Temp. range max | 75 °C |
Protection class | IP66 / IP68 (5 bar 30 min) |
Type of protection | Ex eb, Ex tb |
Ex-Certificate | IECEx, ATEX |
Thread type outer | M |
Ø outer thread | 40 |
Lead outer | 1,5 |
Length screw-in thread L | 12 mm |
Thread type inner | M |
Ø inner thread | 32 |
Lead inner | 1,5 |
Key width SW | 46 mm |
Collar diameter (E) | 51 mm |
Total length TL | 19 mm |
Form | B |
Product Color | RAL 9005 |
Equipment | Incl. connection thread gasket |
Order no. RAL 9005 | 10064731 |
Type | EX-KRM 40/32 |
Packing unit | 25 |
ETIM-Classification | EC000938 |
