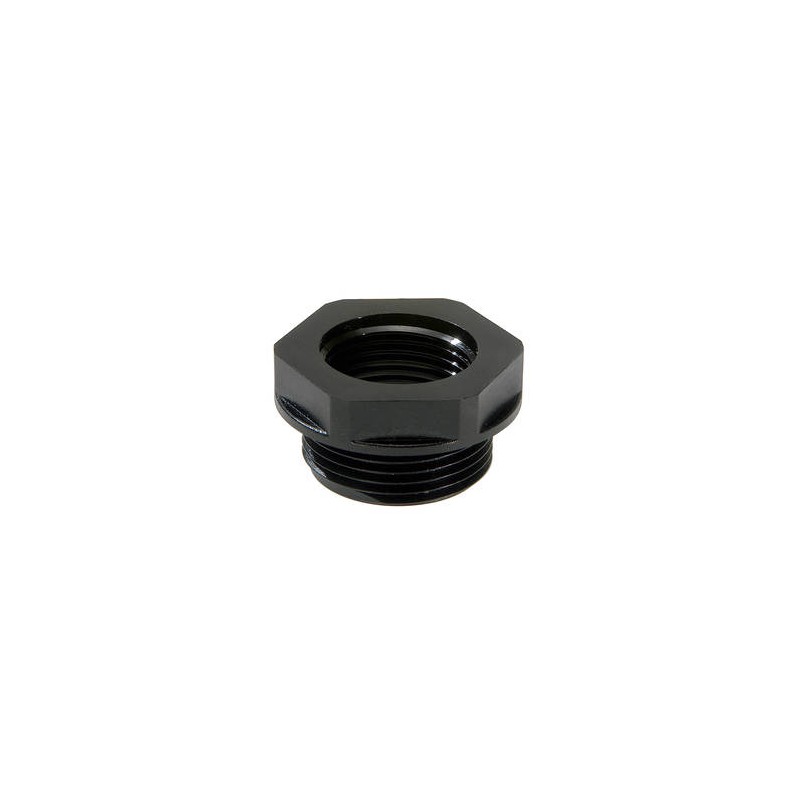

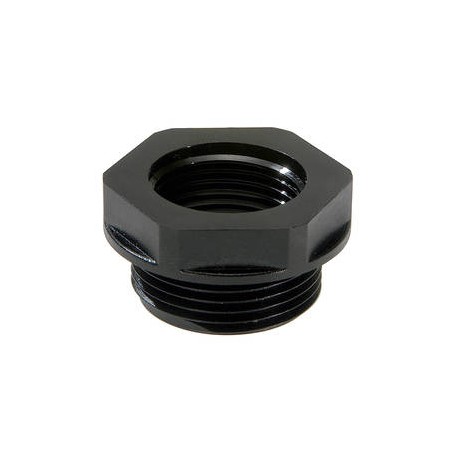

EX-APM 36/25 10064772 WISKA Hexagonal converter. Black PA "ATEX" IP66, thread ext. Pg.36 threaded int. M25
EX-APM 36/25
10064772
WISKA
10
Hexagonal converter. Black PA "ATEX" IP66, thread ext. Pg.36 threaded int. M25
Ex-adaptor, polyamide, Pg36-M25
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
More info
▲Features
| Material | Polyamide, fibre reinforced |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 75 °C |
| Protection class | IP66 / IP68 (5 bar 30 min) |
| Type of protection | Ex eb, Ex tb |
| Ex-Certificate | IECEx, ATEX |
| Thread type outer | PG |
| Ø outer thread | 36 |
| Length screw-in thread L | 14 mm |
| Thread type inner | M |
| Ø inner thread | 25 |
| Lead inner | 1,5 |
| Key width SW | 53 mm |
| Collar diameter (E) | 59 mm |
| Total length TL | 21 mm |
| Form | B |
| Product Color | RAL 9005 |
| Equipment | Incl. connection thread gasket |
| Order no. RAL 9005 | 10064772 |
| Type | EX-APM 36/25 |
| Packing unit | 10 |
| ETIM-Classification | EC000938 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG WISKA CABLE ENTRIES AND PROTECTION EN.pdf | 8 Mbytes |
|
| PDF CATALOG WISKA JUCTION BOXES EN.pdf | 3 Mbytes |
|
| PDF CATALOG WISKA LIGHTING INSTALLATION AND MARITIME APP EN.pdf | 5 Mbytes |
|
| EX-APM 36/25 10064772 EN_10064772.pdf | 233 Kbytes |
|
