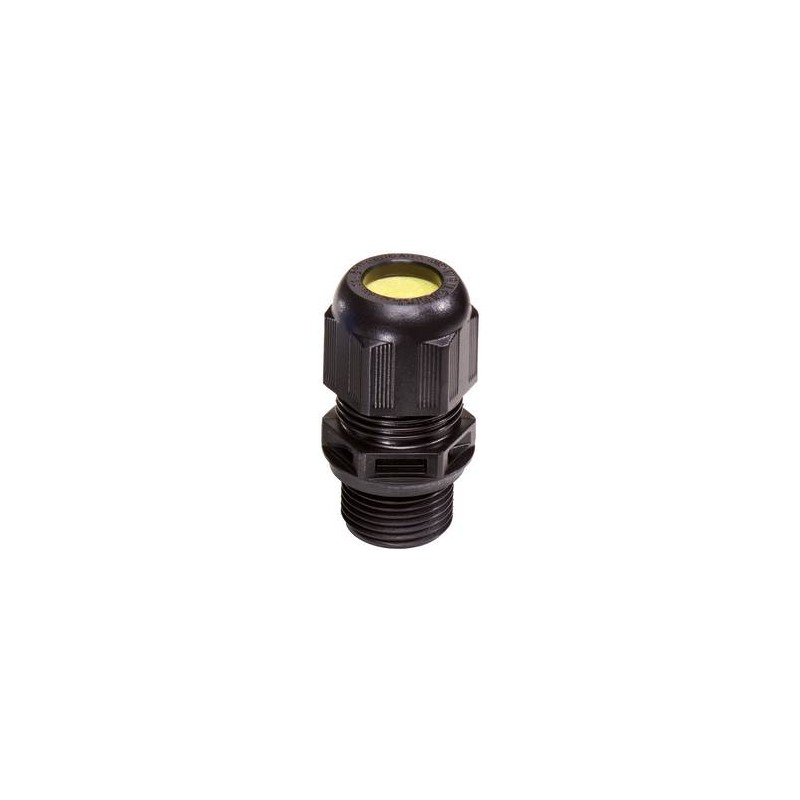

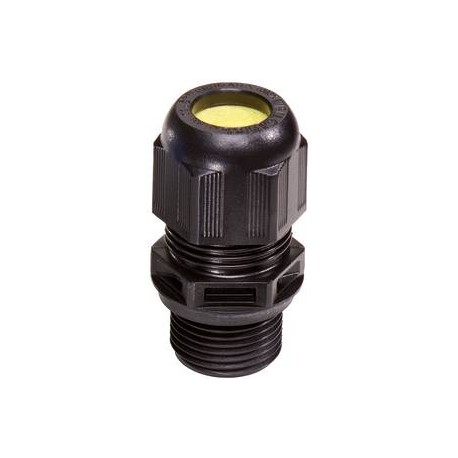

ESKE/1-L-e 32 10103383 WISKA BLACK PA cable glands "ATEX" IP68, increased security, range from 13 to 21mm, l..
ESKE/1-L-e 32
10103383
WISKA
25
BLACK PA cable glands "ATEX" IP68, increased security, range from 13 to 21mm, long thread M32
Ex-cable gland, polyamide with long thread, RAL 9005, M32
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Polyamide |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 75 °C |
| Protection class | IP66 / IP68 (5 bar 30 min) |
| Type of protection | Ex eb, Ex tb |
| Ex-Certificate | IECEx, ATEX |
| Glow wire test | 750 °C |
| Thread type | M |
| Ø Connection thread D | 32 |
| Lead | 1,5 |
| Length screw-in thread L | 15 mm |
| Ø cable diameter min | 13 mm |
| Ø cable diameter max | 21 mm |
| Key width SW | 36 mm |
| Collar diameter (E) | 40 mm |
| Total length TL | 45 mm - 53 mm |
| Install. torques fitting | 4,5 N m |
| Install. torques cap nut | 3 N m |
| Equipment | Incl. connection thread gasket |
| Product Color | RAL 9005 |
| Order no. RAL 9005 | 10103383 |
| Type | ESKE/1-L-e 32 |
| Packing unit | 25 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 12 Mbytes |
|
| ESKE/1-L-e 32 10103383 EN_10103383.pdf | 429 Kbytes |
|
