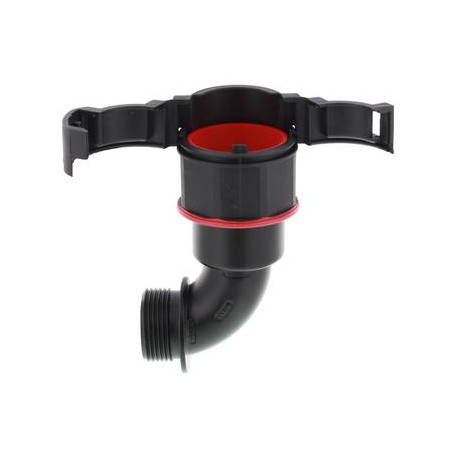

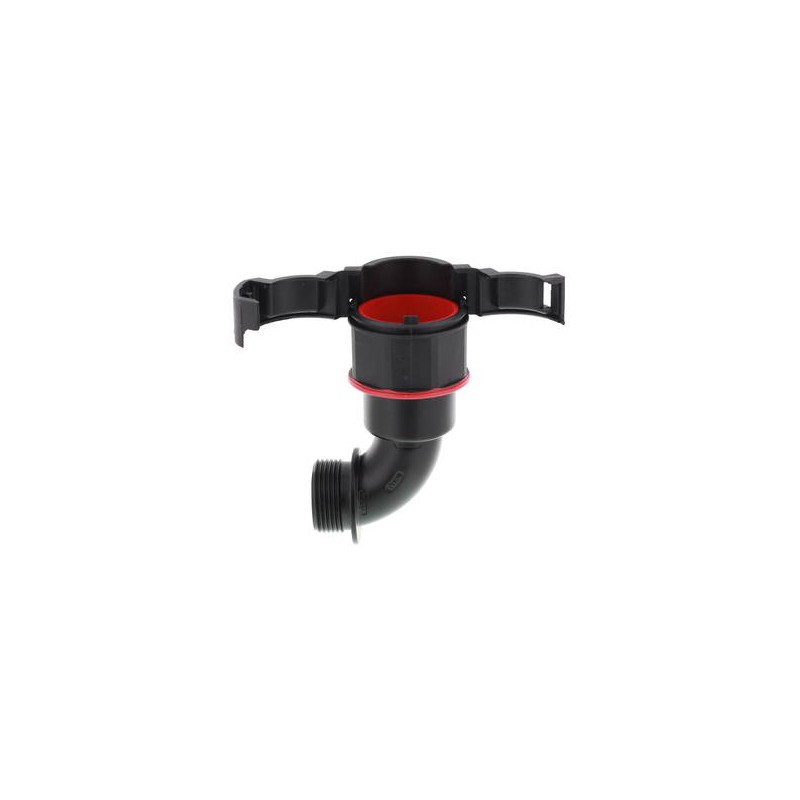

EBF90-23-25/B 10106978 WISKA Elbow fitting 90o PA black IP68 for DN23/28 tube, M25 thread
EBF90-23-25/B
10106978
WISKA
25
Elbow fitting 90o PA black IP68 for DN23/28 tube, M25 thread
Conduit fitting, 90° angle, plastic
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material Conduit fitting | polyamide UL94-V0 |
| Material Connection thread | polyamide UL94-V0 |
| Material sealing gasket | TPU |
| Protection class | IP68, IP66 |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Operational areas | EN 45545 - Railway |
| NW | 23 |
| Thread type | M |
| Ø Connection thread D | 25 |
| Lead | 1,5 |
| Length screw-in thread L | 13 mm |
| Ø inside | 19 mm |
| Ø Gasket F | 32 mm |
| Key width SW | 36 mm |
| Width B | 92,4 mm |
| Total length TL | 51,5 mm |
| Type of conduit fitting | 90° Angle |
| UL 1696 | Yes |
| Product Color | RAL 9005 |
| Type | EBF90-23-25-BK |
| Order no. RAL 9005 | 10106978 |
| Packing unit | 25 |
| ETIM-Classification | EC001176 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 12 Mbytes |
|
| EBF90-23-25/B 10106978 EN_10106978.pdf | 266 Kbytes |
|
