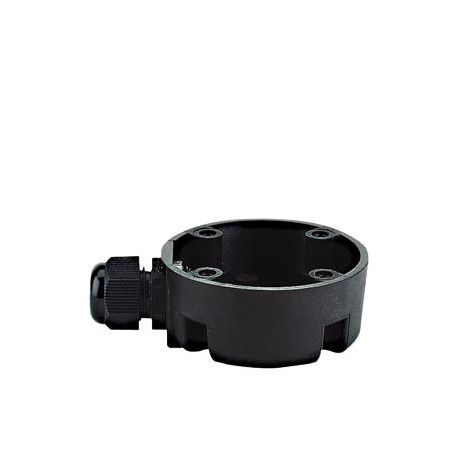

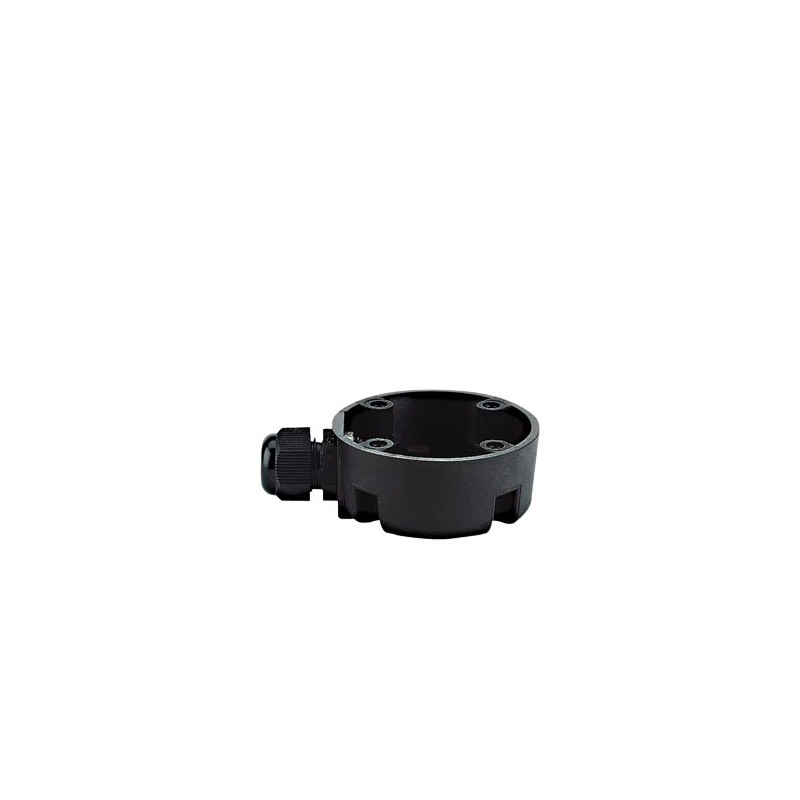

8WD4308-0DD SIEMENS connection socket for lateral cable entry Side cable outlet, can also be used without fo.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

8WD4308-0DD SIEMENS connection socket for lateral cable entry Side cable outlet, can also be used without fo..

8WD4308-0DD

SIEMENS

connection socket for lateral cable entry Side cable outlet, can also be used without foot, accessory for signaling columns, with diameters 50 mm and 70 mm

SIRIUS Signage, foot adapter, side cable introduction

More details


Low-voltage industrial components > Stand for signal tower without tube

CONTROL AND CONTACTORS > Commanding and signaling devices

* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total price: $45.35
Unit price: $45.35

Quantity Price
1+$45.35
2+$44.32
4+$37.79
5+$36.24
7+$34.77
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Related products

▲

More info

▲


Technical data

connection socket for lateral cable entry Side cable outlet, can also be used without foot, accessory for signaling columns, with diameters 50 mm and 70 mm
product brand nameSIRIUS
product designationConnection socket
General technical data
reference code
● according to EN 61346-2X
● according to IEC 81346-2X
Enclosure
height28.5 mm
width70 mm
depth91 mm
materialPA
colorblack
fastening methodfloor mounting
Ambient conditions
ambient temperature during operation-30 ... +60 °C
Certificates/ approvals

Downloads and manuals

General Product ApprovalEMCDeclaration of Conformity

Confirmation

UL

EAC

RCM

UK Declaration of Conformity

EC/EU-Declaration of Conformity

Marine / Shippingother

ABS (American Bureau of Shipping)

PRS / Polski Rejestr Statkow

RINA / Registro Italiano Navale

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:12/23/2020
Date
5/3/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)8WD4308-0DD
Product Descriptionconnection socket for lateral cable entry Side cable outlet, can also be used without foot, accessory for signaling columns, with diameters 50 mm and 70 mm
Product family8WD44 signaling columns, 70 mm diameter
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41J / 41J
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works1 Day/Days
Net Weight (kg)0,084 Kg
Packaging Dimension70,00 x 70,00 x 40,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209378650
UPC754554486765
Commodity Code85319000
LKZ_FDB/ CatalogIDCC-IC10
Product Group5833
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.07.2006
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-37-12-35
eClass7.127-37-12-35
eClass827-37-12-35
eClass927-37-12-35
eClass9.127-37-12-35
ETIM5EC001154
ETIM6EC001154
ETIM7EC001154
ETIM8EC001154
IDEA44771
UNSPSC1426-12-16-20
UNSPSC1539-12-15-44

ETIM data

ETIM: EC001154 - Stand for signal tower without tube

Value Unit
Material (EF002169) Plastic
Colour (EF000007) Black


Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG SIEMENS SIRIUS INDUSTRIAL CONTROLS EN.pdf 279 Mbytes
8WD4308-0DD 8WD4308-0DD EN_8WD4308-0DD.pdf 170 Kbytes 8WD4308-0DD 8WD4308-0DD EN_8WD4308-0DD.pdf
