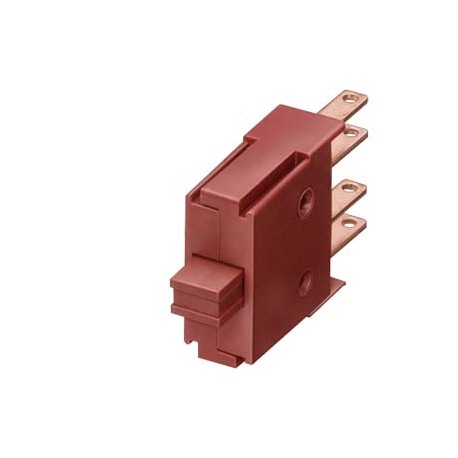

3SB2404-0C SIEMENS Contact block, 1 NC, flat connector terminal View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3SB2404-0C SIEMENS Contact block, 1 NC, flat connector terminal

3SB2404-0C

SIEMENS

Contact block, 1 NC, flat connector terminal

Connection element with 1 contact, 1NC

More details


Low-voltage industrial components > Auxiliary contact block

CONTROL AND CONTACTORS > Commanding and signaling devices

* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total price: $8.27
Unit price: $8.27

*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Often bought together

▲

Best sellers

▲

More info

▲


Technical data

Contact block, 1 NC, flat connector terminal
product brand nameSIRIUS
product designationcontact block
product type designation3SB2
Contact block/ lampholder
number of lampholders0
General technical data
product function positive openingYes
suitability for integrationpushbutton / selector button
type of voltage
● of the operating voltageAC/DC
protection class IP
● of the enclosureIP40
● of the terminalIP00
vibration resistance according to IEC 60068-2-620 ... 200 Hz: 5g
reference code according to IEC 81346-2S
Substance Prohibitance (Date)07/01/2006
operating voltage
● at AC
— at 50 Hz rated value5 ... 230 V
— at 60 Hz rated value5 ... 230 V
● at DC rated value5 ... 230 V
Auxiliary circuit
number of NC contacts for auxiliary contacts1
number of NO contacts for auxiliary contacts0
number of CO contacts for auxiliary contacts0
operational current at AC-12
● at 24 V rated value10 A
● at 60 V rated value10 A
● at 110 V rated value10 A
● at 230 V rated value10 A
operational current at AC-15
● at 24 V rated value4 A
● at 110 V rated value4 A
● at 230 V rated value4 A
operational current at DC-12
● at 24 V rated value6 A
● at 60 V rated value5 A
● at 110 V rated value2.5 A
● at 230 V rated value1 A
operational current at DC-13
● at 24 V rated value3 A
● at 60 V rated value1.2 A
● at 110 V rated value0.7 A
● at 230 V rated value0.3 A
Connections/ Terminals
type of electrical connectiontab terminals
Ambient conditions
ambient temperature
● during operation-25 ... +70 °C
● during storage-40 ... +80 °C
Installation/ mounting/ dimensions
fastening methodclip-on
height19 mm
width8 mm
depth31 mm
Certificates/ approvals

Downloads and manuals

General Product ApprovalDeclaration of Conformity

CSA

CCC

UL

KC

EAC

UK Declaration of Conformity

Declaration of Conformityother

EC/EU-Declaration of Conformity

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:12/21/2020
Date
5/4/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3SB2404-0C
Product DescriptionContact block, 1 NC, flat connector terminal
Product familyContact blocks and lampholders
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41J / 41J
Surcharge for Raw MaterialsNone
Metal FactorLAO-----
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works1 Day/Days
Net Weight (kg)0,004 Kg
Packaging Dimension35,00 x 35,00 x 10,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209028364
UPC754554333779
Commodity Code85365080
LKZ_FDB/ CatalogIDCC-IC10
Product Group5834
Group CodeR711
Country of originCzech Republic
Compliance with the substance restrictions according to RoHS directiveSince: 01.07.2006
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-37-13-02
eClass7.127-37-13-02
eClass827-37-13-02
eClass927-37-13-02
eClass9.127-37-13-02
ETIM5EC000041
ETIM6EC000041
ETIM7EC000041
ETIM8EC000041
UNSPSC1439-12-15-21
UNSPSC1539-12-15-21

ETIM data

ETIM: EC000041 - Auxiliary contact block

Value Unit
Number of fault-signal switches (EF007613) -
Model (EF000010) -
Number of contacts as change-over contact (EF008257) 0
Number of contacts as normally open contact (EF008256) 0
Number of contacts as normally closed contact (EF008255) 1
Rated operation current Ie at AC-15, 230 V (EF001385) 4A
Type of electric connection (EF003961) Flat plug-in connection
Mounting method (EF000003) Other
Lamp holder (EF000048) None
