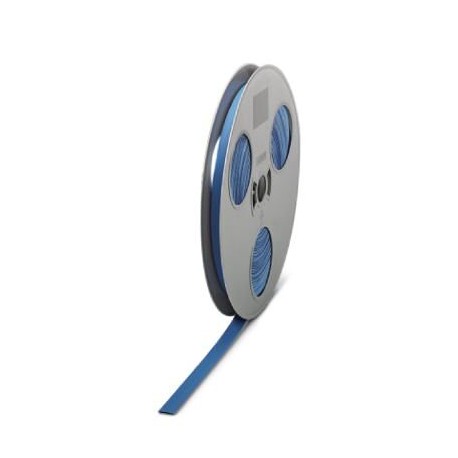

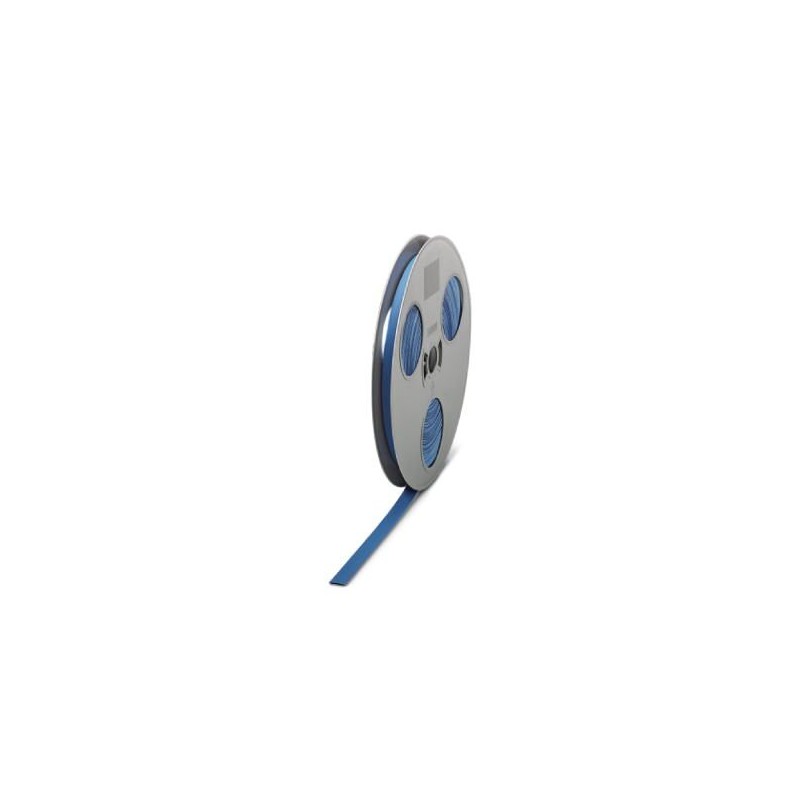

WMS-2 HF 12,7 (EX20)RL BU CUS 8199181 PHOENIX CONTACT Cable marker, blue: user-defined, mounting type: slide..
WMS-2 HF 12,7 (EX20)RL BU CUS
8199181
PHOENIX_CONTACT
Product on demand only, returns will not be accepted.
Cable marker, blue: user-defined, mounting type: slide on, lettering field size: max. 30 mm
Heat-shrink tubing, blue: customized, mounting class: sliding, usable surface: max. 30mm
Installation, isolation and connection material > Cable coding system
CABINET add-on
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Cable marker, blue: user-defined, mounting type: slide on, lettering field size: max. 30 mm
Key Commercial Data
| Orderkey | 8199181 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626436753 |
| Weight per Piece (excluding packing) | 9.990 g |
| Custom tariff number | 49119900 |
| Country of origin | PL (Poland) |
Dimensions
| Length (b) | 80 mm |
|---|---|
| Width (a) | 20 mm |
General
| Color | blue |
|---|---|
| Type | Shrink sleeve |
| Material | Polyolefine |
| RoHS compliant | Yes |
| Printing | user-defined |
| Printability | Thermal transfer |
| Device | 5146477 THERMOMARK ROLL |
| 5146723 THERMOMARK ROLL X1 | |
| 5146231 THERMOMARK X1.2 | |
| 5146147 THERMOMARK W2 | |
| 0804501 THERMOMARK ROLLMASTER 300 | |
| 0804663 THERMOMARK ROLLMASTER 600 | |
| Ink ribbon | 5148007 THERMOMARK-RIBBON 110-WMTB HF |
| 0801358 THERMOMARK-RIBBON 110-WMSU | |
| 0801360 THERMOMARK-RIBBON 64-WMSU | |
| 0803390 THERMOMARK-RIBBON 25-WMSU | |
| 0804661 TM-RIBBON 110 WH 100 | |
| Test for substances that would hinder coating with paint or varnish | VW PV 3.10.7:2005-02 |
| Result | Test passed |
| Test specification weathering-resistance | Following ISO 4892-2:2013-03 |
| Procedure | |
| Test duration | 96 h |
| Test passed | |
| Salt spray test specification | DIN EN 60068-2-11:2000-02 |
| Procedure | A |
| Test duration | 96 h |
| Salt spray testing result | Test passed |
| Wipe resistance of test specification inscriptions | DIN EN 61010-1 (VDE 0411-1):2011-07 |
| Test passed | |
| Marking mounting type | slide on |
| Oxygen index (DIN EN ISO 4589-2) | 34.9 % |
| R22 | HL 1 - HL 3 |
| R23 | HL 1 - HL 3 |
| R24 | HL 1 - HL 3 |
Standards and Regulations
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
|---|---|
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
Classifications
eCl@ss
| eCl@ss 5.1 | 27400400 |
|---|---|
| eCl@ss 6.0 | 27400400 |
| eCl@ss 7.0 | 27400401 |
| eCl@ss 9.0 | 27400401 |
ETIM
| ETIM 6.0 | EC001530 |
|---|---|
| ETIM 7.0 | EC001530 |
| Feature Name | Feature Value |
|---|---|
| Type (EF001139) | Medium-walled |
| Toothing (EF009649) | None |
| Material (EF002169) | Other |
| Cable diameter (EF002356) | 12.7 mm |
| Width (EF000008) | 20 mm |
| Colour (EF000007) | Blue |
| Fluorescent (EF009518) | No |
| Imprint (EF000131) | Other |
| Mounting method (EF000003) | Suspend |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MARKING SYSTEMS PHOENIX EN.pdf | 41 Mbytes |
|
