PHOENIX CONTACT CABINET add-onEO-N/UT 0804139 PHOENIX CONTACT Socket

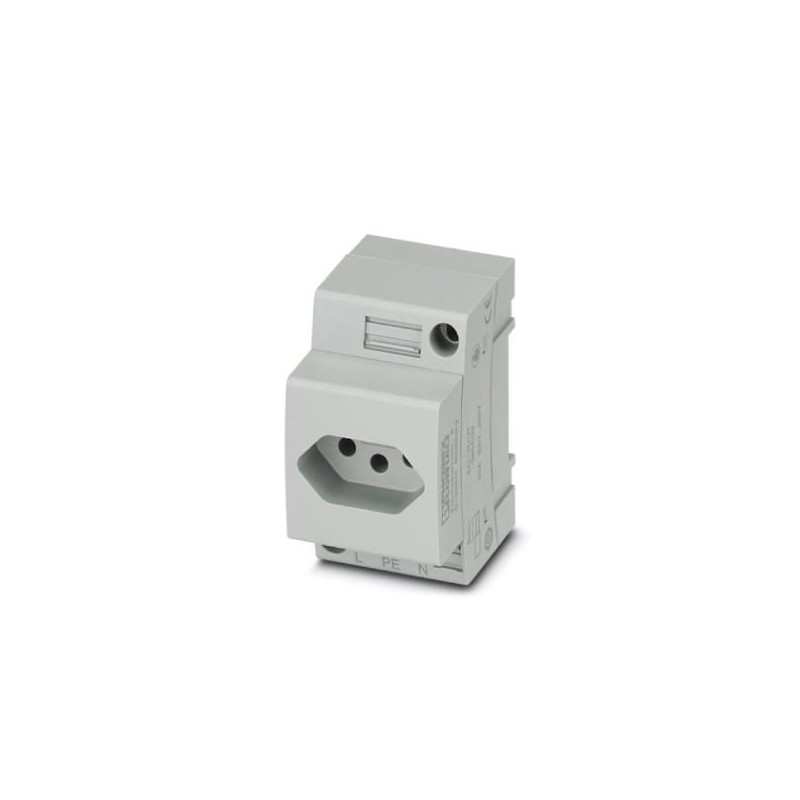

PHOENIX CONTACT EO-N/UT 0804139 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

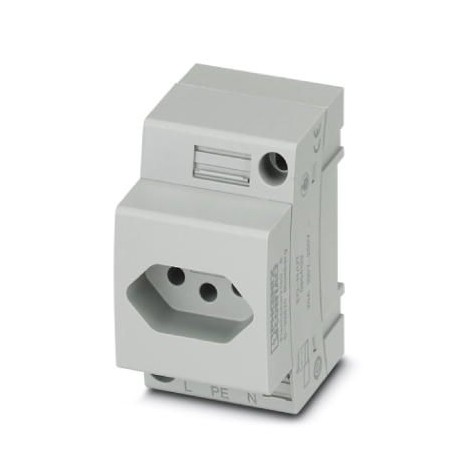

EO-N/UT 0804139 PHOENIX CONTACT Socket

Reference: EO-N/UT

Code: 0804139

Manufacturer: PHOENIX CONTACT

Description:

Socket
Power socket, N-type plug-in face, Screw connection, for Brazil/South Africa and other countries, grey, for rail mounting at the service interface or direct mounting, 250 VAC, 20 A, -20 °C, 60 °C

Categories:

  • Devices for distribution board-/surface mounting > Socket outlet for distribution board
  • PHOENIX CONTACT > CABINET add-on

Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX CONTACT

  • More Info
  • Reviews
Guarantee, repair and return.

Total: 68,32 €

Unit Price: 13,663 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2-3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Key Commercial Data

Orderkey0804139
Packing unit5 pc
Minimum order quantity5 pc
Catalog pagePage 610 (C-3-2017)
GTIN4055626226705
Weight per Piece (excluding packing)73.900 g
Custom tariff number85366990
Country of originPL (Poland)

Dimensions

Width45 mm
Height75 mm
Depth57.5 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 60 °C

General

Nominal voltage UN250 V AC (50 Hz ... 60 Hz)
Nominal current IN20 A
Status displayNo
Contact materialCuZn37
Colorgray
7042
Insulating materialPA
Flammability rating according to UL 94V0
Standards/regulationsNBR 14136
Country IDBrazil

Connection data

Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.4 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.12
Connection methodScrew connection

Standards and Regulations

Standards/regulationsNBR 14136
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
