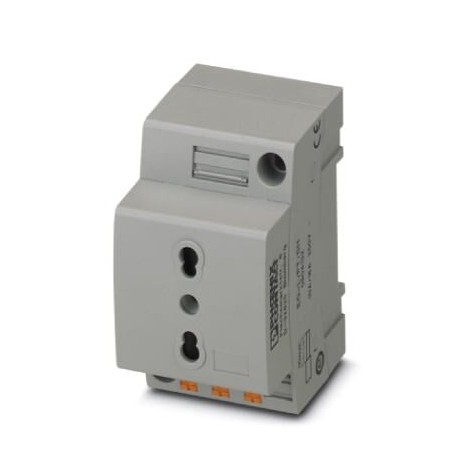

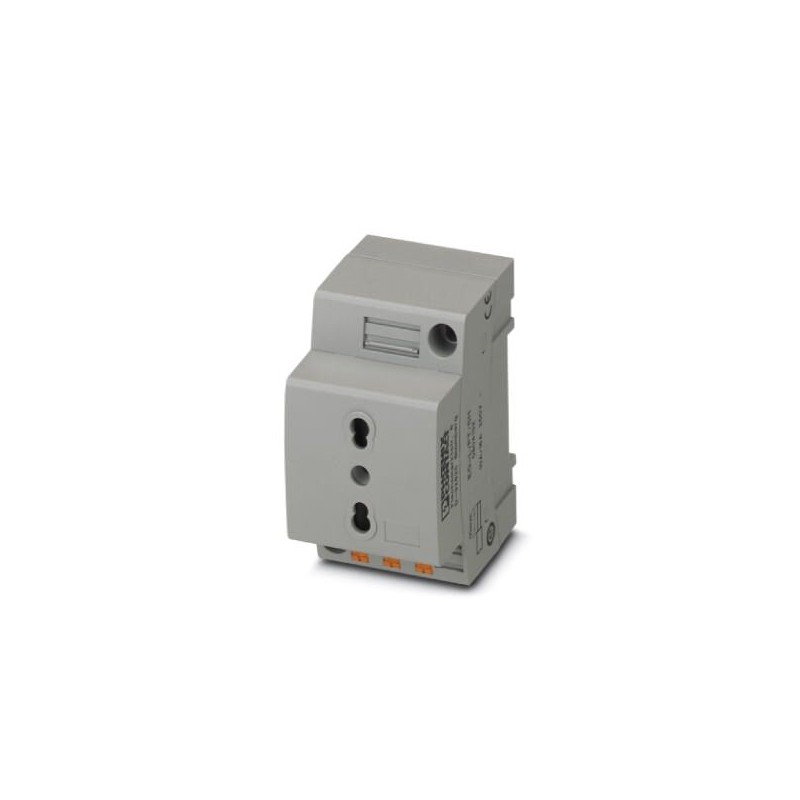

EO-L/PT/SH 0804132 PHOENIX CONTACT Socket, Pin connector pattern type L, Push-in spring connection, for Ital..
EO-L/PT/SH
0804132
PHOENIX_CONTACT
5
Socket, Pin connector pattern type L, Push-in spring connection, for Italy and other countries, with extended touch proofness/shutter, gray, for mounting on a DIN rail in the service interface or direct mounting, 250 V AC, 16 A, -20 °C, 60 °C, CEI 23-50
Power socket, Plug-in face type L, Push-in spring connection, for Italy and other countries, with extended accidental contact protection/safety device, grey, for rail mounting at the service interface or direct mounting, 250 VAC, 16 A, -20 °C, 60 °C, CEI23-50
Devices for distribution board-/surface mounting > Socket outlet for distribution board
CABINET add-on
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 0804132 |
|---|---|
| Packing unit | 1 pc |
| Minimum order quantity | 5 pc |
| Catalog page | Page 564 (C-3-2019) |
| GTIN | 4055626226644 |
| Weight per Piece (excluding packing) | 80.000 g |
| Custom tariff number | 85366990 |
| Country of origin | PL (Poland) |
General
| Nominal voltage UN | 250 V AC (50 Hz) |
|---|---|
| Nominal current IN | 16 A |
| Status display | No |
| Contact material | CuZn37 |
| Color | gray |
| 7042 | |
| Insulating material | PA |
| Flammability rating according to UL 94 | V0 |
| Standards/regulations | CEI 23-50 |
| Country ID | Italy |
Connection data
| Conductor cross section solid min. | 0.2 mm² |
|---|---|
| Conductor cross section solid max. | 4 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 12 |
| Connection method | Push-in spring connection |
Standards and Regulations
| Standards/regulations | CEI 23-50 |
|---|---|
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss
| eCl@ss 4.0 | 27142300 |
|---|---|
| eCl@ss 4.1 | 27142300 |
| eCl@ss 5.0 | 27142300 |
| eCl@ss 5.1 | 27142300 |
| eCl@ss 6.0 | 27142300 |
| eCl@ss 7.0 | 27142305 |
| eCl@ss 8.0 | 27142305 |
| eCl@ss 9.0 | 27142305 |
