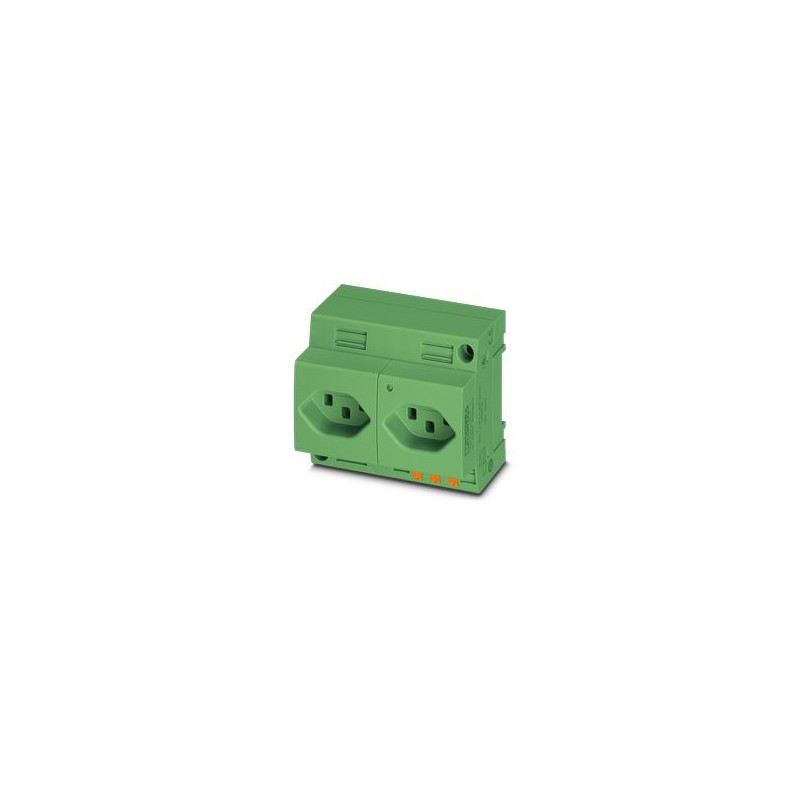

EO-J/PT/LED/DUO/GN 0804111 PHOENIX CONTACT Double socket
EO-J/PT/LED/DUO/GN
0804111
PHOENIX_CONTACT
2
Double socket
Dual power outlet, Plug-in side type J, Push-in spring connection, with indicator light, for Switzerland and other countries, green, for rail mounting at the service interface or direct mounting, 250 V AC, 16 A, -20 °C, 60 °C, SEV 1011
Double socket, Pin connector pattern type J, Push-in spring connection, with LED display, for Switzerland and other countries, green, for mounting on a DIN rail in the service interface or direct mounting, 250 V AC, 16 A, -20 °C, 60 °C, SEV 1011
Devices for distribution board-/surface mounting > Socket outlet for distribution board
CABINET add-on
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product type | Socket |
| Country ID | Switzerland |
| Nominal voltage UN | 250 V AC (50 Hz) |
| Nominal current IN | 16 A |
| Connection method | Push-in spring connection |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Cross section AWG | 24 ... 12 (converted acc. to IEC) |
| Status display | Yes |
| Width | 90 mm |
| Height | 75 mm |
| Depth | 75 mm |
| Color | green |
| Flammability rating according to UL 94 | V0 |
| Insulating material | PA |
| Contact material | CuZn37 |
| Static insulating material application in cold | -60 °C |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 130 °C |
| Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
| Calorimetric heat release NFPA 130 (ASTM E 1354) | 28 MJ/kg |
| Surface flammability NFPA 130 (ASTM E 162) | passed |
| Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
| Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
| Type of plug | Pin connector pattern type J |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -20 °C ... 60 °C (max. short-term operating temperature RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
| Standards | |
| Standards/regulations | SEV 1011 |
| Mounting type | for mounting on a DIN rail in the service interface or direct mounting |
| Connection method | Push-in spring connection |
