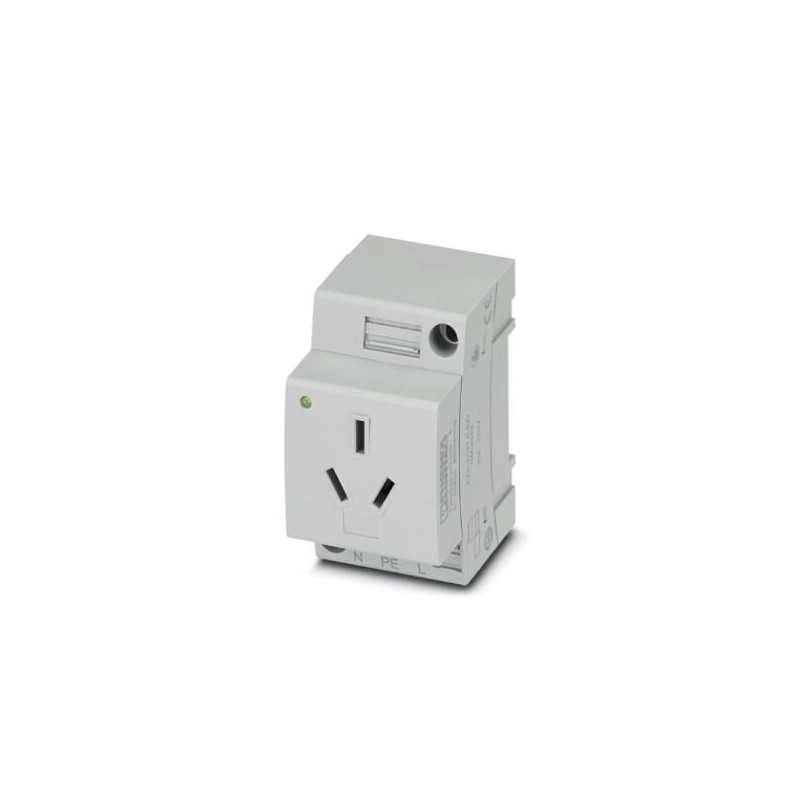

PHOENIX CONTACT  EO-I/UT/LED 0804089 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

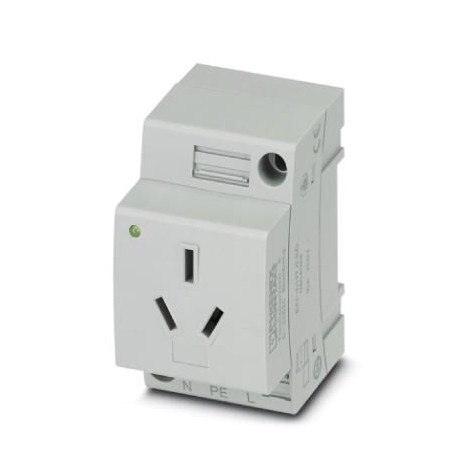

EO-I/UT/LED 0804089 PHOENIX CONTACT Socket, Pin connector pattern type I, Screw connection, for China/Austra..

Reference: EO-I/UT/LED

Code: 0804089

Manufacturer: PHOENIX CONTACT

Description:

Socket, Pin connector pattern type I, Screw connection, for China/Australia and other countries, LED display, gray, for mounting on a DIN rail in the service interface or direct mounting, 250 V AC, 10 A, -20 °C, 60 °C, GB 2099.1 and GB 1002
Power Outlet, Type I Plug-in Face, Screw Connection, for China/Australia and other countries, Indicator Light, Grey, for rail mounting at service interface or direct mounting, 250 VAC, 10 A, -20 °C, 60 °C, GB2009.1 and GB1002

Categories:

  • Devices for distribution board-/surface mounting > Socket outlet for distribution board
  • PHOENIX CONTACT > CABINET add-on

Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX CONTACT

  • More Info
  • Reviews
Guarantee, repair and return.

Total: 70,03 €

Unit Price: 14,007 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2-3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Key Commercial Data

Orderkey0804089
Packing unit1
Catalog pagePage 567 (C-3-2019)
GTIN4055626226248
Custom tariff number85366990

Dimensions

Width45 mm
Height75 mm
Depth57.5 mm
Back to top

Ambient conditions

Ambient temperature (operation)-20 °C ... 60 °C
Back to top

General

Nominal voltage UN250 V AC (50 Hz)
Nominal current IN10 A
Status displayYes
Contact materialCuZn37
Colorgray
7042
Insulating materialPA
Flammability rating according to UL 94V0
Standards/regulationsGB 2099.1 and GB 1002
Country IDChina
Back to top

Connection data

Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.4 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.12
Connection methodScrew connection
Back to top

Standards and Regulations

Standards/regulationsGB 2099.1 and GB 1002
Flammability rating according to UL 94V0
Back to top

Environmental Product Compliance

REACh SVHC
Lead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Back to top

Classifications

eCl@ss

eCl@ss 4.027142300
eCl@ss 4.127142300
eCl@ss 5.027142300
eCl@ss 5.127142300
eCl@ss 6.027142300
eCl@ss 7.027142305
eCl@ss 8.027142305
eCl@ss 9.027142305
Back to top

ETIM

ETIM 5.0EC001663
ETIM 6.0EC001663
ETIM 7.0EC001663
Back to top

DATASHEET - PDF
