EO-CF/UT/LED/YE
1068028
PHOENIX_CONTACT
5

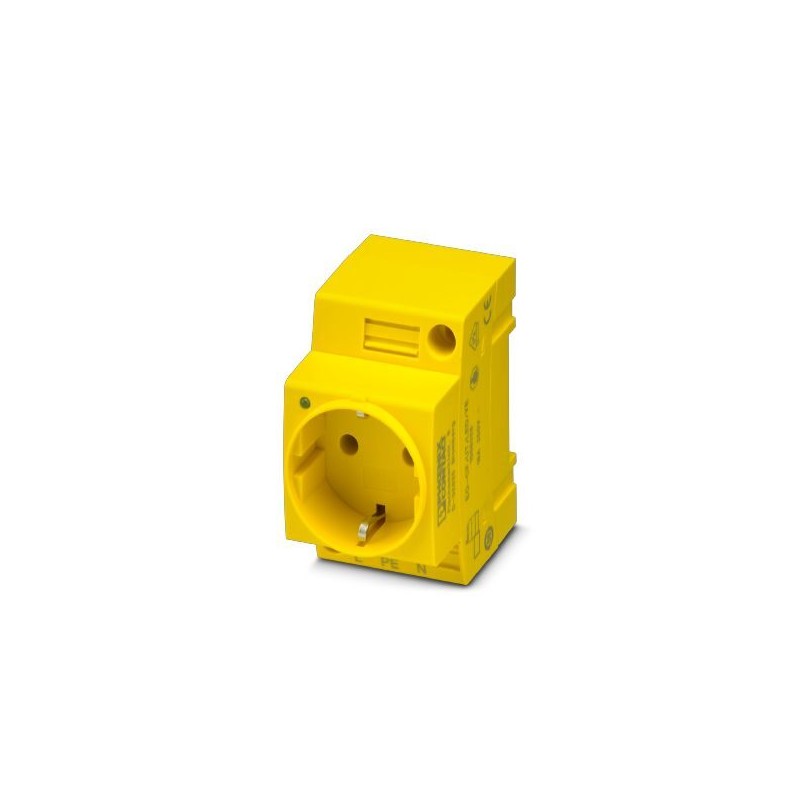

Socket, Pin connector pattern type CF, Screw connection, Light indicator, yellow, for mounting on a DIN rail in the service interface or direct mounting, 250 V AC, 16 A, -20 °C, 60 °C, VDE 0620-1
Devices for distribution board-/surface mounting > Socket outlet for distribution board
CABINET add-on
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Orderkey | 1068028 |
---|---|
Packing unit | 1 pc |
Minimum order quantity | 5 pc |
Catalog page | Page 562 (C-3-2019) |
GTIN | 4055626738970 |
Weight per Piece (excluding packing) | 72.000 g |
Custom tariff number | 85366990 |
Country of origin | PL (Poland) |
Nominal voltage UN | 250 V AC (50 Hz) |
---|---|
Nominal current IN | 16 A |
Status display | Yes |
Contact material | CuZn37 |
Color | yellow |
7042 | |
Insulating material | PA |
Flammability rating according to UL 94 | V0 |
Standards/regulations | VDE 0620-1 |
Country ID | Germany |
Conductor cross section solid min. | 0.2 mm² |
---|---|
Conductor cross section solid max. | 4 mm² |
Conductor cross section flexible min. | 0.2 mm² |
Conductor cross section flexible max. | 2.5 mm² |
Conductor cross section AWG min. | 24 |
Conductor cross section AWG max. | 12 |
Connection method | Screw connection |
Standards/regulations | VDE 0620-1 |
---|---|
Flammability rating according to UL 94 | V0 |
eCl@ss 5.1 | 27142300 |
---|---|
eCl@ss 6.0 | 27142300 |
eCl@ss 7.0 | 27142305 |
eCl@ss 8.0 | 27142305 |
eCl@ss 9.0 | 27142305 |
