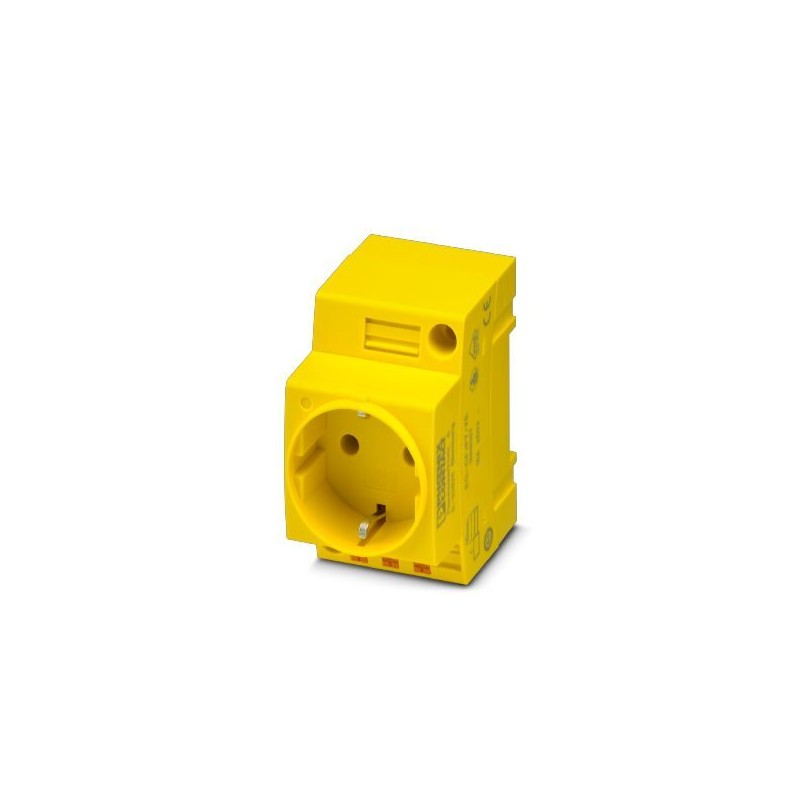

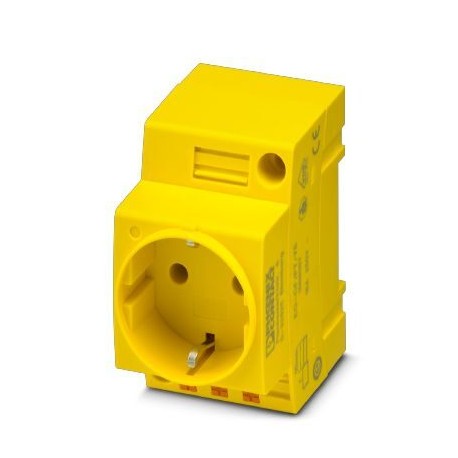

EO-CF/PT/YE 1068067 PHOENIX CONTACT Socket, Pin connector pattern type CF, yellow, for mounting on a DIN rai..
EO-CF/PT/YE
1068067
PHOENIX_CONTACT
5
Socket, Pin connector pattern type CF, yellow, for mounting on a DIN rail in the service interface or direct mounting, -20 °C, 60 °C, VDE 0620-1
Power socket, Plug-in face type CF, yellow, for rail mounting at the service interface or direct mounting, -20 °C, 60 °C, VDE0620-1
Devices for distribution board-/surface mounting > Socket outlet for distribution board
CABINET add-on
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1068067 |
|---|---|
| Packing unit | 1 |
| Catalog page | Page 562 (C-3-2019) |
| GTIN | 4055626739656 |
| Custom tariff number | 85366990 |
General
| Status display | No |
|---|---|
| Contact material | CuZn37 |
| Color | yellow |
| 7042 | |
| Insulating material | PA |
| Flammability rating according to UL 94 | V0 |
| Standards/regulations | VDE 0620-1 |
| Country ID | Germany |
Connection data
| Conductor cross section solid min. | 0.2 mm² |
|---|---|
| Conductor cross section solid max. | 4 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 12 |
Standards and Regulations
| Standards/regulations | VDE 0620-1 |
|---|---|
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss
| eCl@ss 5.1 | 27142300 |
|---|---|
| eCl@ss 6.0 | 27142300 |
| eCl@ss 7.0 | 27142305 |
| eCl@ss 8.0 | 27142305 |
| eCl@ss 9.0 | 27142305 |
| Feature Name | Feature Value |
|---|---|
| Rated voltage (EF000228) | 250 V |
| Rated current (EF000227) | 16 A |
| With hinged lid (EF000117) | No |
| With enhanced contact protection (EF000389) | No |
| With control lamp (EF005055) | No |
| Width in number of modular spacings (EF002950) | 2.5 |
| Built-in depth (EF000218) | 62.1 mm |
| Degree of protection (IP) (EF005474) | IP20 |
| Number of socket outlets (EF000336) | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MARKING SYSTEMS PHOENIX EN.pdf | 41 Mbytes |
|
