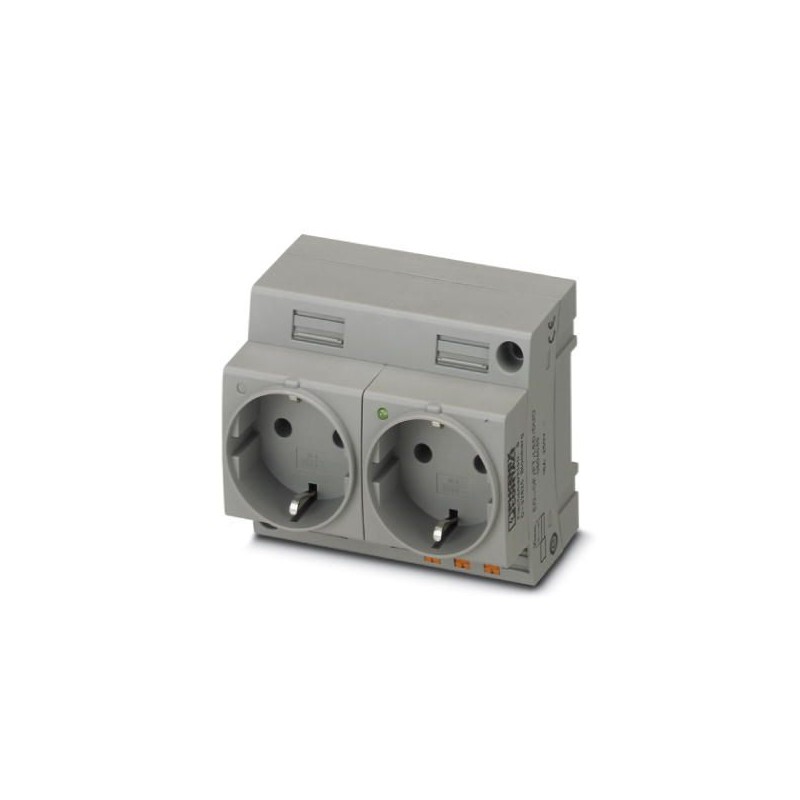

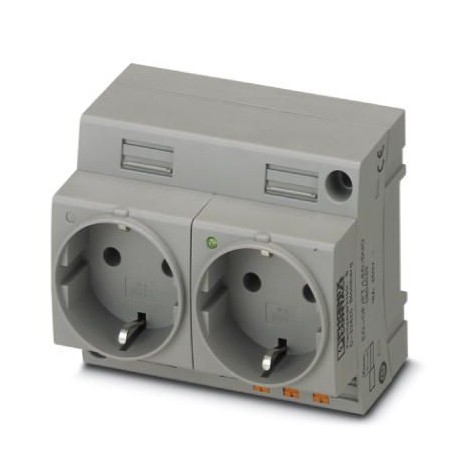

EO-CF/PT/LED/DUO 0804049 PHOENIX CONTACT Double socket
EO-CF/PT/LED/DUO
0804049
PHOENIX_CONTACT
2
Double socket
Dual socket, Plug-in side type CF, Push-in spring connection, Light indication, grey, for rail mounting at the service interface or direct mounting, 250 VAC, 16 A, -20 °C, 60 °C, VDE0620-1
Devices for distribution board-/surface mounting > Socket outlet for distribution board
CABINET add-on
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 0804049 |
|---|---|
| Packing unit | 2 pc |
| Minimum order quantity | 2 pc |
| Catalog page | Page 606 (C-3-2017) |
| GTIN | 4055626225883 |
| Weight per Piece (excluding packing) | 136.000 g |
| Custom tariff number | 85366990 |
| Country of origin | PL (Poland) |
General
| Nominal voltage UN | 250 V AC (50 Hz) |
|---|---|
| Nominal current IN | 16 A |
| Status display | Yes |
| Contact material | CuZn37 |
| Color | gray |
| 7042 | |
| Insulating material | PA |
| Flammability rating according to UL 94 | V0 |
| Standards/regulations | VDE 0620-1 |
| Country ID | Germany |
Connection data
| Conductor cross section solid min. | 0.2 mm² |
|---|---|
| Conductor cross section solid max. | 4 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 12 |
| Connection method | Push-in spring connection |
Standards and Regulations
| Standards/regulations | VDE 0620-1 |
|---|---|
| Flammability rating according to UL 94 | V0 |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MARKING SYSTEMS PHOENIX EN.pdf | 41 Mbytes |
|
