PHOENIX CONTACT CABINET add-onEO-CF/PT 0804038 PHOENIX CONTACT Socket

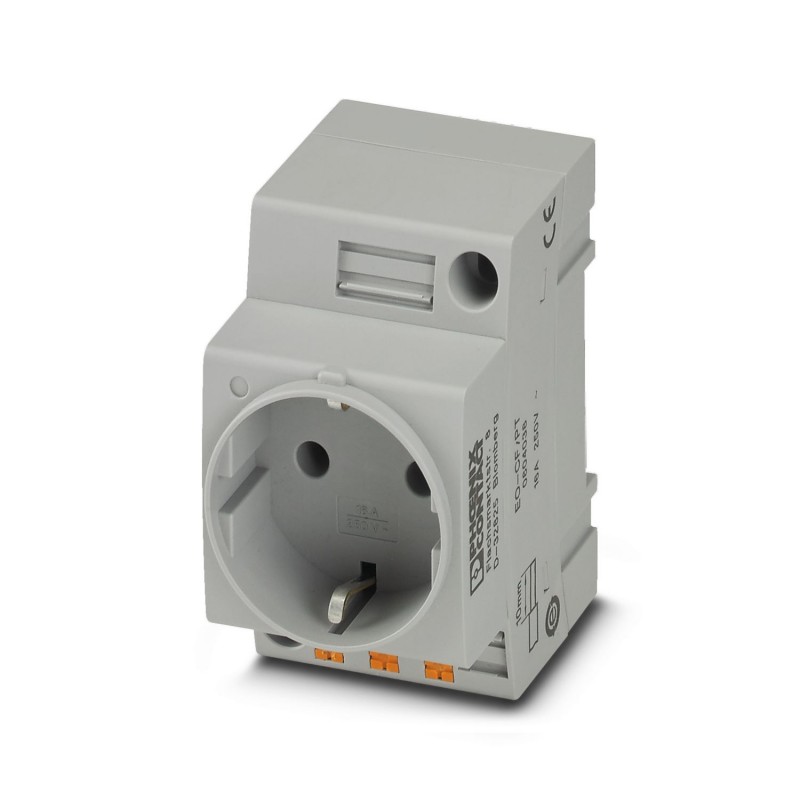

PHOENIX CONTACT EO-CF/PT 0804038 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

EO-CF/PT 0804038 PHOENIX CONTACT Socket

Reference: EO-CF/PT

Code: 0804038

Manufacturer: PHOENIX CONTACT

Description:

Socket
Power socket, Plug-in face type CF, Push-in spring connection, grey, for rail mounting at the service interface or direct mounting, 250 VAC, 16 A, -20 °C, 60 °C, VDE0620-1
Socket, Pin connector pattern type CF, gray, for mounting on a DIN rail in the service interface or direct mounting, f1 = 5 Hz to f2 = 250 Hz, -5 °C, 40 °C, VDE 0620-1

Categories:

  • Devices for distribution board-/surface mounting > Socket outlet for distribution board
  • PHOENIX CONTACT > CABINET add-on

Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX CONTACT

  • More Info
  • Reviews
Guarantee, repair and return.

Total: 68,32 €

Unit Price: 13,663 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2-3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Technical data
Product properties
Product typeSocket
Country IDGermany
Data management status
Article revision04
Connection data
Stripping length10 mm
Internal cylindrical gageA3
B3
Conductor cross section rigid0.2 mm² ... 4 mm²
Cross section AWG24 ... 12 (converted acc. to IEC)
Conductor cross section flexible0.25 mm² ... 2.5 mm²
Conductor cross section, flexible [AWG]24 ... 14 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)0.25 mm² ... 2.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve)0.25 mm² ... 2.5 mm²
Conductor cross-section flexible (2 conductors with the same cross-section, with TWIN ferrule and plastic sleeve)0.25 mm² ... 2.5 mm²
Nominal current16 A
Nominal voltage250 V AC (50 Hz)
Connection cross sections directly pluggable
Conductor cross section rigid0.5 mm² ... 4 mm²
Conductor cross-section flexible (ferrule without plastic sleeve)1 mm² ... 2.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve)1 mm² ... 2.5 mm²
Signaling
Status displayno
Dimensions
Dimensional drawingervtydzkqo.jpg
Width45 mm
Height75 mm
Depth61.7 mm
Material specifications
Colorgray (RAL 7042)
Flammability rating according to UL 94V0
Insulating materialPA
Contact materialCuZn37
Static insulating material application in cold-60 °C
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed
Connector
Type of plugPin connector pattern type CF
Environmental and real-life conditions
Oscillation/broadband noise
SpecificationDIN EN 50155 (VDE 0115-200):2022-06
SpectrumService life test category 2, bogie-mounted
Frequencyf1= 5 Hz to f2= 250 Hz
ASD level6.12 (m/s²)²/Hz
Acceleration3.12g
Test duration per axis5 h
Test directionsX-, Y- and Z-axis
ResultTest passed
Shocks
SpecificationDIN EN 50155 (VDE 0115-200):2022-06
Pulse shapeHalf-sine
Acceleration30g
Shock duration18 ms
Number of shocks per direction3
Test directionsX-, Y- and Z-axis (pos. and neg.)
Ambient conditions
Degree of protectionIP20
Ambient temperature (operation)-5 °C ... 40 °C (Average value over a period of 24 hours not above +35°C)
Ambient temperature (storage/transport)-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Permissible humidity (storage/transport)30 % ... 70 %
Standards and regulations
Standards
Standards/regulationsVDE 0620-1
Mounting
Mounting typefor mounting on a DIN rail in the service interface or direct mounting
