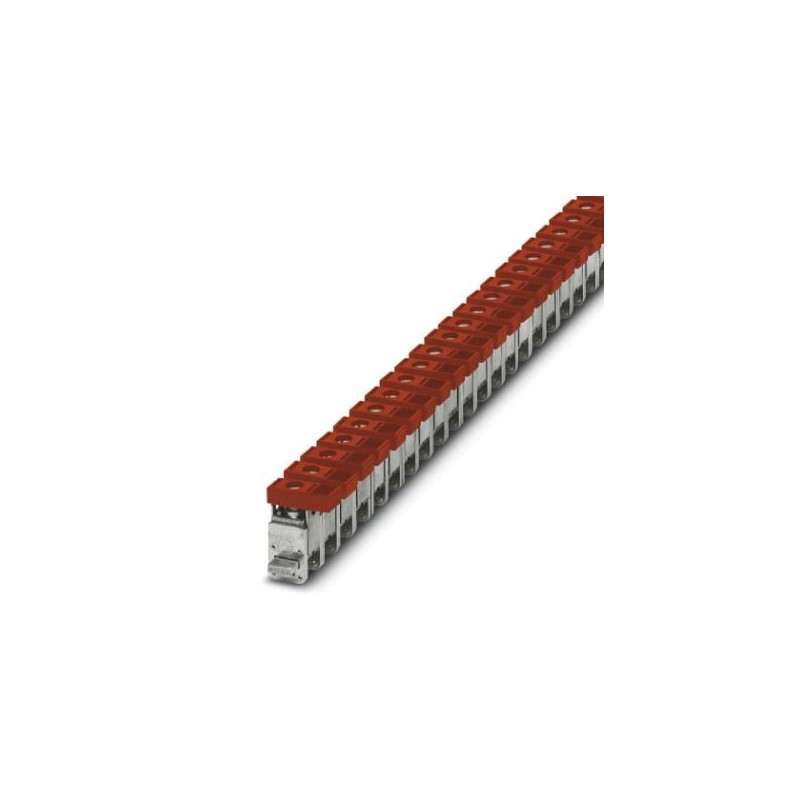

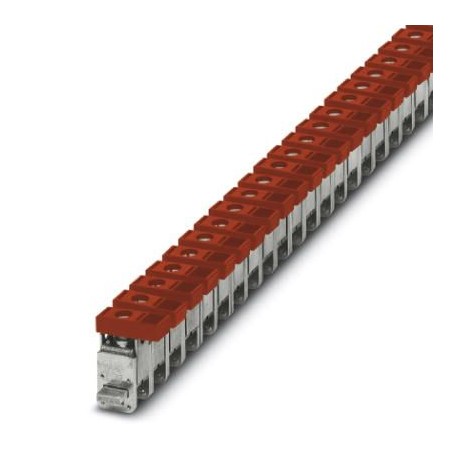

AKG 35 RD 3062980 PHOENIX CONTACT Connection terminal block
AKG 35 RD
3062980
PHOENIX_CONTACT
50
Connection terminal block
Low-voltage industrial components > Busbar terminal
CABINET add-on
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 3062980 |
|---|---|
| Packing unit | 50 pc |
| Minimum order quantity | 50 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 599 (C-3-2017) |
| GTIN | 4046356558396 |
| Weight per Piece (excluding packing) | 20.180 g |
| Custom tariff number | 85369010 |
| Country of origin | PL (Poland) |
General
| Color | red |
|---|---|
| Insulating material | PA |
| Nominal cross section | 35 mm² |
| Flammability rating according to UL 94 | V2 |
| Maximum load current | 125 A (with 35 mm² conductor cross section) |
| Connection in acc. with standard | IEC / EN |
| Nominal current IN | 125 A |
| Maximum load current | 125 A (with 35 mm² conductor cross section) |
| Nominal voltage UN | 300 V |
Connection data
| Conductor cross section solid min. | 2.5 mm² |
|---|---|
| Conductor cross section solid max. | 35 mm² |
| Conductor cross section flexible min. | 2.5 mm² |
| Conductor cross section flexible max. | 35 mm² |
| Conductor cross section AWG min. | 14 |
| Conductor cross section AWG max. | 2 |
| Conductor cross section flexible, with ferrule without plastic sleeve min. | 2.5 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. | 35 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. | 2.5 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. | 35 mm² |
| 2 conductors with same cross section, solid min. | 1.5 mm² |
| 2 conductors with same cross section, solid max. | 16 mm² |
| 2 conductors with same cross section, stranded min. | 1.5 mm² |
| 2 conductors with same cross section, stranded max. | 16 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. | 1.5 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. | 16 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. | 1.5 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. | 10 mm² |
| Connection method | Screw connection |
| Stripping length | 16 mm |
| Screw thread | M6 |
| Tightening torque, min | 3.2 Nm |
| Tightening torque max | 3.7 Nm |
Standards and Regulations
| Connection in acc. with standard | CSA |
|---|---|
| IEC / EN | |
| Flammability rating according to UL 94 | V2 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027141111eCl@ss 4.127141111eCl@ss 5.027141145eCl@ss 5.127141100eCl@ss 6.027141100eCl@ss 7.027141120eCl@ss 8.027141120eCl@ss 9.027141146
