PANASONICMiniature Photoelectric Sensors - PANASONICEX30 FIBER ULTRA-SLIM TYPE PHOTOELECTRIC SENSOR - PANASONICUEX32A EX32A EX-32A PANASONIC Diffuse reflective, 50mm, light-ON, NPN, 2m cable

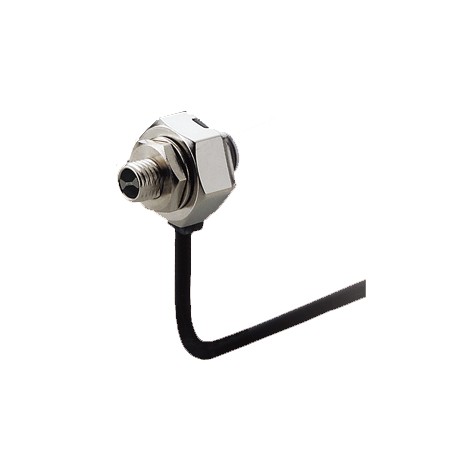

PANASONIC UEX32A EX32A EX-32A - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

UEX32A EX32A EX-32A PANASONIC Diffuse reflective, 50mm, light-ON, NPN, 2m cable

Reference: UEX32A

Code: EX32A

Catalog Number: EX-32A

Manufacturer: PANASONIC

Description:

Diffuse reflective, 50mm, light-ON, NPN, 2m cable
Photoelectric sensor threaded model, direct reflection, 50 mm, NPN, light operation, 12-24 VDC, M6 thread

Categories:

  • PANASONIC > Miniature Photoelectric Sensors - PANASONIC > EX30 Fiber ultra-slim type photoelectric sensor - PANASONIC

Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 115,16 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Product Number EX-32A
Part Number EX-32A
Product Threaded Miniature Photoelectric Sensor
Details Diffuse reflective
Product name Threaded Miniature Photoelectric Sensor EX-30 Ver.2

Item Specifications
Product Number EX-32A
Part Number EX-32A
CE marking directive compliance EMC Directive, RoHS Directive
Sensing range 50 mm 1.969 in
(Note) The sensing range and the hysteresis are specified for white non-glossy paper (100 x 100 mm 3.937 x 3.937 in) as the object.
Sensing object Opaque, translucent or transparent object
(Note) Make sure to confirm detection with an actual sensor before use.
Hysteresis 15 % or less of operation distance
(Note) The sensing range and the hysteresis are specified for white non-glossy paper (100 x 100 mm 3.937 x 3.937 in) as the object.
Repeatability(perpendicular to sensing axis) 0.5 mm 0.020 in or less
Supply voltage 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less
Current consumption 13 mA or less
Output NPN open-collector transistor
- Maximum sink current: 50 mA
- Applied voltage: 30 V DC or less (between output and 0 V)
- Residual voltage: 2 V or less (at 50 mA sink current), 1 V or less (at 16 mA sink current)
Output:Utilization category DC-12 or DC-13
Output:Output operation Light-ON
Output:Short-circuit protection Incorporated
Response time 0.5 ms or less
Operation indicator Orange LED (lights up when the output is ON)
Stability indicator Green LED (lights up under stable light received condition orstable dark condition)
Sensitivity adjuster Continuously variable adjuster
Pollution degree 3 (Industrial environment)
Protection IP67 (IEC)
Ambient temperature -25 to +55 degrees -13 to +131 degrees Fahrenheit (No dew condensation or icing allowed), Storage: -30 to +70 degrees -22 to +158 degrees Fahrenheit
Ambient humidity 35 to 85 % RH, Storage: 35 to 85 % RH
Ambient illuminance Incandescent light: 3,000 lx or less at the light-receiving face
Voltage withstandability 1,000 V AC for one min. between all supply terminals connected together and enclosure
Insulation resistance 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure
Vibration resistance 10 to 500 Hz frequency, 3 mm0.118 indouble amplitude (20 G max.) in X, Y and Z directions for two hours each
Shock resistance 500 m/s2acceleration (50 G approx.) in X, Y and Z directions three times each
Emitting element Red LED (modulated)
Material Enclosure: Die-cast zinc (Nickel plated)
Lens: Acrylic
Enclosure cover: Polycarbonate
Cable 0.1 mm2 3-core cabtyre cable, 2 m 6.562 ft long
Cable extension Extension up to total 50 m 164.042 ft is possible with 0.3 mm2, or more, cable.
Weight Net weight: 20 g approx
Gross weight: 30 g approx
Accessory Nut: 1 pc
Toothed lock washer: 1 pc
