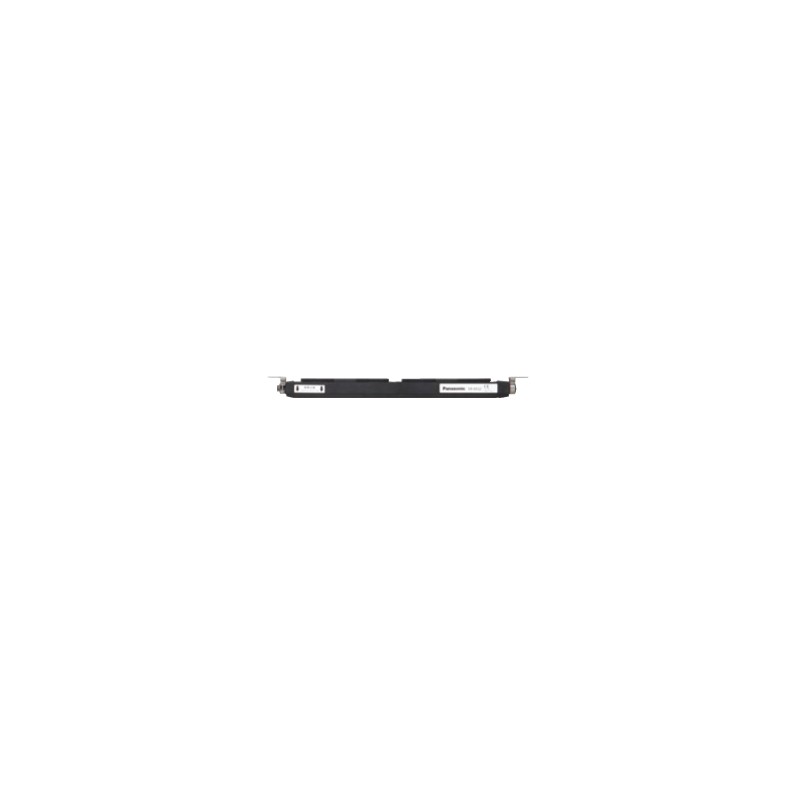

UERX032HC ER-X032HC PANASONIC Wide-area, high speed ionizer-head, bar type, removal width 320mm, charge remo..
UERX032HC
ER-X032HC
PANASONIC
Wide-area, high speed ionizer-head, bar type, removal width 320mm, charge removal time < 1sec, ion balance max. ± 30V, discharge output voltage approx. 7kV, -60 to +200°C
ER-X ionizer, wide area, high speed, array type, removal area 320mm., charge removal time < 1sec, ion balance max. ± 30V, discharge output at voltage approx. 7kV, -60 to +200°C
ER-X032HC_Pulse AC Method Area Ionizer_Pulse AC Method Area Ionizer ER-X_Head (High and low temperature resistant type)
Ionizers - PANASONIC > ER-X high speed ionizer - PANASONIC
Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Best sellers
▲More info
▲| Product Number | ER-X032HC |
| Part Number | ER-X032HC |
| Product | Pulse AC Method Area Ionizer |
| Details | Head (High and low temperature resistant type) |
| Product name | Pulse AC Method Area Ionizer ER-X |
| Item | Specifications |
|---|---|
| Product Number | ER-X032HC |
| Part Number | ER-X032HC |
| Applicable regulations | CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), TÜV SÜD certification (USA, Canada) |
| Effective charge removal width | 320 mm 12.598 in approx. |
| Charge removal time | 1 sec. or less (Note： Typical value in condition of discharge distance 100 mm 3.937 in, center of the product, discharge frequency 30 Hz and no air supply.) |
| Ion balance | ±30 V or less (Note 1：Typical value in condition of discharge distance 100 mm 3.937 in, center of the product, discharge frequency 30 Hz and no air supply.) (Note 2： Ion balance refers to the average value of plus and minus. The specification value is the typical one in condition used when ambient temperature change is less than ±10 ℃, ion balance is set after 30 minutes from the discharge start, the ion balance control function is set ON.) |
| Discharge method | Pulse AC method |
| Discharge frequency | 30 Hz (Note： Set the discharge frequency to 30 Hz. Do not use any other frequency.) |
| Discharge output voltage | ±7,000 V approx. |
| Ozone generation | 0.01 ppm or less (Note： Typical value in condition of discharge distance 100 mm 3.937 in, center of the product, discharge frequency 30 Hz and no air supply.) |
| Maximum air pressure | 0.1 MPa |
| Applicable fluid | Air (dried clean air) (Note：The dried clean air is the air dried (dew point : equivalent of -20 ℃ -4 ℉) and filtered (mesh-size : equivalent of 0.01 μm).) |
| Operating altitude | 2,000 m 6561.68 ft or less (Note：Do not use or store in an environment that has been pressurized to an air pressure higher than the atmospheric pressure at 0 m.) |
| Ambient temperature | Head : -60 to +200 ℃ -76 to +392 ℉ (No dew condensation or icing)(Note), Storage : -10 to +65 ℃ +14 to +149 ℉ High voltage unit : 0 to +50 ℃ +32 to +122 ℉ (No dew condensation), Storage : -10 to +65 ℃ +14 to +149 ℉ (Note): Discoloration of the head may occur when used under high temperatures, but it does not affect the charge removal performance. |
| Ambient humidity | 35 to 65 % RH, Storage : 35 to 85 % RH |
| Vibration resistance | 10 to 55 Hz frequency, 0.75 mm 0.030 in double amplitude in X, Y and Z directions for two hours each |
| Shock resistance | 100 m/s2 acceleration (10 G approx.), in X, Y and Z directions three times each |
| Enclosure earthing | Floating |
| Material | Main unit enclosure : PPS, Stainless steal (SUS), Head mounting bracket : Stainless steal (SUS), Discharge needle : PC, PPS, Tungsten, Main unit enclosure of high-voltage unit : ABS |
| Length of high-voltage cable | Heat-resistant shielded cable, 1.8 m 5.906 ft |
| Weight | Net weight : 620 g approx. |
| Accessories | ø6 ø0.236-4 Air tube joint : 1 pc., Seal cap : 1 pc., Head mounting bracket (mounted at the factory) |
