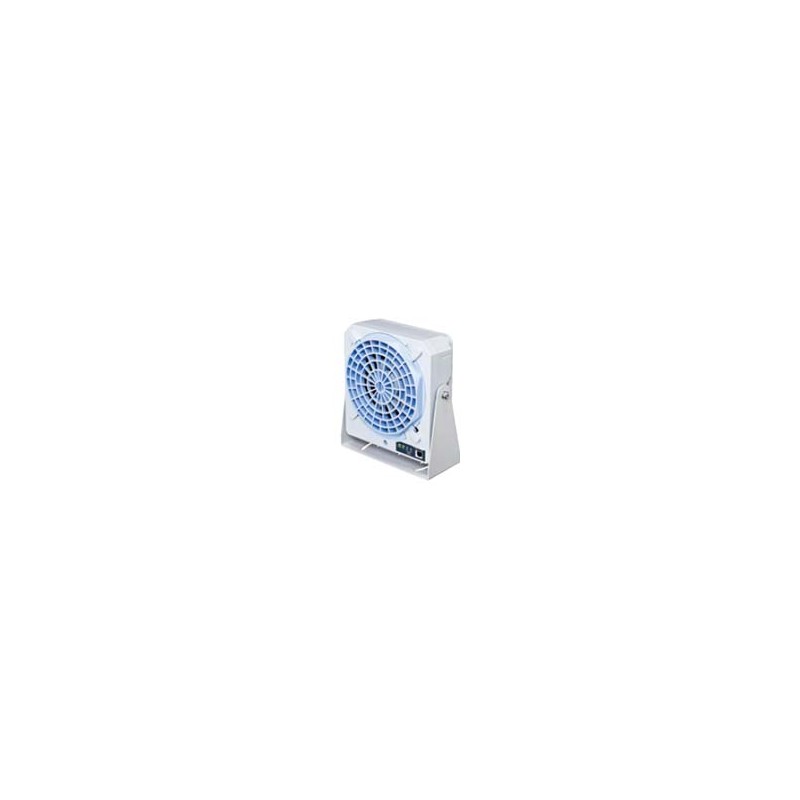

UERF12A-G ER-F12A PANASONIC Fan type Ionizer
UERF12A-G
ER-F12A
PANASONIC
Fan type Ionizer
Area ionizer, fan, standard
ER-F12A_Fan Type Ionizer_Fan Type Ionizer ER-F_Standard fan type
Ionizers - PANASONIC > Fan type ionizer - PANASONIC
Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Best sellers
▲More info
▲| Product Number | ER-F12A |
| Part Number | ER-F12A |
| Product | Fan Type Ionizer |
| Details | Standard fan type |
| Product name | Fan Type Ionizer ER-F |
| Item | Specifications |
|---|---|
| Product Number | ER-F12A |
| Part Number | ER-F12A |
| Applicable regulations | CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations) |
| Charge removal time | 1 sec. approx.(±1,000 V → ±100 V) (Note): Typical value at 200 mm 7.874in from directly in front of air outlet, fan speed MAX, straight louver, with no filter installed. |
| Ion balance | ±10 V or less (Note): Typical value at 300 mm 11.811in from directly in front of air outlet, fan speed MAX, straight louver, with no filter installed. |
| Supply voltage | 24 V DC ±10% |
| Current consumption | 700 mA or less |
| Discharge method | High-frequency AC method |
| Discharge output voltage | ± 2 kV approx. |
| Main functions | Error output, Discharge halt input |
| Indicators | Discharge error (Red), Fan error (Red), Power (Green), Discharge (Green) |
| Ozone generation | 0.04 ppm or less (Note): Typical value at 200 mm 7.874in from directly in front of air outlet, fan speed MAX, straight louver, with no filter installed. |
| Ambient temperature | 0℃ to +50℃ +32℉ to +122℉ (No dew condensation allowed), Storage : -10℃ to +65℃ +14℉ to +149℉ |
| Ambient humidity | 35% RH to 65% RH (No dew condensation allowed), Storage : 35% RH to 65% RH |
| Grounding method | C (capacitor) grounding |
| Material | Enclosure : ABS, Louver : ABS, Discharge needle unit : PBT, Discharge needle : Tungsten, Bracket : SPHC |
| Weight | New weight : 790 g approx. |
| Accessories | Straight louver : 1 pc. (Note), Angle louver : 1 pc., Caution label : 1 set, Rubber cushion : 1 pc. (Note): The discharge needle unit is loaded on the straight louver before shipment. |
| Remark | If not specified, the ambient temperature for measurement is +20℃ +68℉. |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PANASONIC SENSORS EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE PANASONIC EN .pdf | 15 Mbytes |
|
| Data sheet ER-F12A ERF12A PANASONIC Fan Type Ionizer ER-F | 799 Kbytes |
|
| Download general catalog |
|
