PANASONICIonizers - PANASONICIONIZERS, ELECTROSTATIC SENSORS - PANASONICUEFS1C EFS1C EF-S1C PANASONIC Electro static sensor controller for Serie EFS1, 1 x NPN, Analog 1-5V, 24V DC

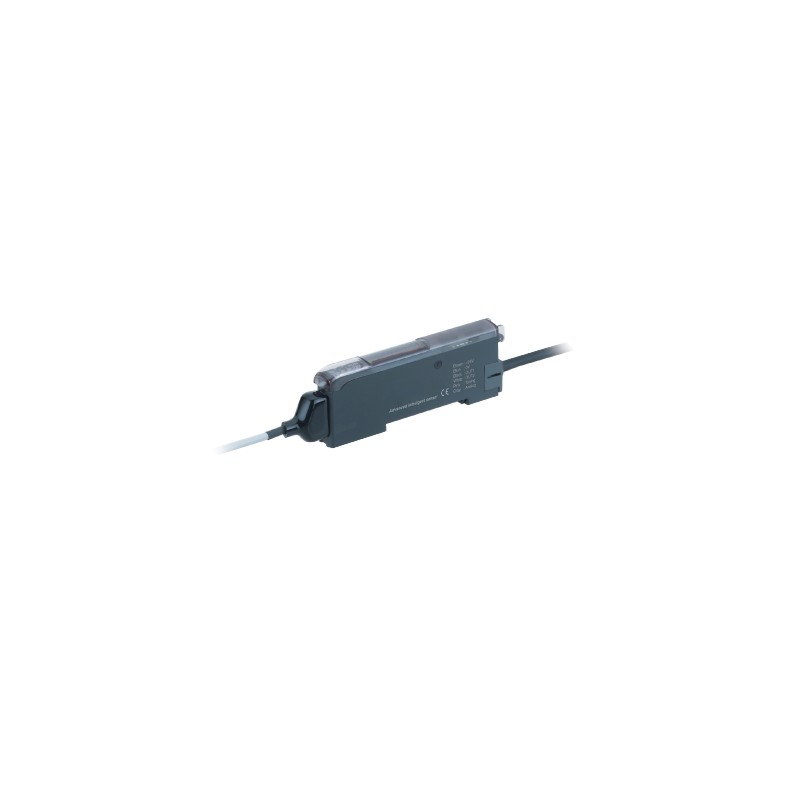

PANASONIC UEFS1C EFS1C EF-S1C - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

UEFS1C EFS1C EF-S1C PANASONIC Electro static sensor controller for Serie EFS1, 1 x NPN, Analog 1-5V, 24V DC

Reference: UEFS1C

Code: EFS1C

Catalog Number: EF-S1C

Manufacturer: PANASONIC

Description:

Electro static sensor controller for Serie EFS1, 1 x NPN, Analog 1-5V, 24V DC
Electrostatic sensor controller, dual display, analog output

Categories:

  • PANASONIC > Ionizers - PANASONIC > Ionizers, electrostatic sensors - PANASONIC

Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 361,13 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Product Number EF-S1C
Part Number EF-S1C
Product Electrostatic Sensor
Details Controller
Product name Electrostatic Sensor EF-S1

Item Specifications
Product Number EF-S1C
Part Number EF-S1C
CE marking compliant directives EMC Directive, RoHS Directive
Ambient temperature –10 to +55 ℃ +14 to +131 ℉ (No dew condensation or icing allowed), Storage: –20 to +70 ℃ – 4 to +158 ℉
Ambient humidity 35 to 85 % RH, Storage: 35 to 85 % RH
Material Enclosure: Heat-resistant ABS, Case cover: Polycarbonate, Mode key: Acrylic, Jog switch: Heat-resistant ABS
Cable 0.2 mm26-core cabtyre cable, 2 m 6.562 ft long
Weight Net weight: 65 g approx., Gross weight: 110 g approx.
Applicable sensor head EF-S1HS
Supply voltage 24V DC plus or minus10 %
Current consumption Normal operation: 50 mA or less, ECO mode: 40 mA or less
Display range(Range mode) –1,000 to 1,000 (plus or minus1 kV range mode)
–1,999 to 1,999 (plus or minus2kV range mode)
(Note) The display range (measurement range) is switched automatically when the measurement distance setting is changed at the controller.
Repeatability plus or minus0.3 % F.S.
(Note) F.S. is 2,000 V (–1,000 V to 1,000 V) for the plus or minus1 kV range mode and 4,000 V (–2,000 V to 2,000 V) for the plus or minus2kV range mode.
Linearity plus or minus0.5 % F.S.
(Note) F.S. is 2,000 V (–1,000 V to 1,000 V) for the plus or minus1 kV range mode and 4,000 V (–2,000 V to 2,000 V) for the plus or minus2kV range mode.
(Note) The values given are for when the measured potential is plus or minus200 V or less in the plus or minus1 kV range mode and plus or minus400 V or less in the plus or minus2kV range mode.
If the measured potentials are outside these values, the values will be equal to the displayed values plus or minus5 %.
(Note) In order to satisfy the linearity specifications for the analog output, do not use the judgment output.
Temperature characteristics 0.05 % F.S./℃
(Note) F.S. is 2,000 V (–1,000 V to 1,000 V) for the plus or minus1 kV range mode and 4,000 V (–2,000 V to 2,000 V) for the plus or minus2kV range mode.
(Note) The values given are for when the measured potential is plus or minus200 V or less in the plus or minus1 kV range mode and plus or minus400 V or less in the plus or minus2kV range mode.
If the measured potentials are outside these values, the values will be 0.5 %/℃ of the displayed values.
Judgment outputs(OUT 1, OUT 2) NPN open-collector transistor
• Maximum sink current: 100 mA
• Applied voltage: 30 V DC or less (between judgment output and 0 V)
• Residual voltage: 1.5 V or less (at 100 mA sink current)
Judgment outputs(OUT 1, OUT 2):Response time 10 ms, 20 ms (STD), 100 ms, 200 ms, 400 ms, 800 ms switching method
Judgment outputs(OUT 1, OUT 2):Output operation OUT1: +potential measurement output or window comparator output
OUT2: –potential measurement output or error output
Judgment outputs(OUT 1, OUT 2):Short-circuit protection Incorporated
Analog output Analog voltage
• Output voltage: 1 to 5 V
• Output impedance: 100 Ohm approx.
(Note) In order to satisfy the linearity specifications for the analog output, do not use the judgment output.
Analog output:Response time 20 ms, 30 ms (STD), 110 ms, 210 ms, 410 ms, 810 ms switching method
Timing input / 0-adjust input NPN non-contact input
• Signal condition
High: +V or open,
Low: 0 to +2 V (source current 0.5 mA or less)
• Input impedance: 10 kOhm approx.
Cable extension Extension up to total 10 m 32.808 ft is possible with 0.3 mm2, or more, cable.

DATASHEET - PDF

Title
Size
Type
Datasheet 1: EFS1C - EFS1C | EF-S1C
342 Kbytes
PDF CATALOG PANASONIC SENSORS EN
31 Mbytes
PDF CATALOGUE PANASONIC EN
15 Mbytes
