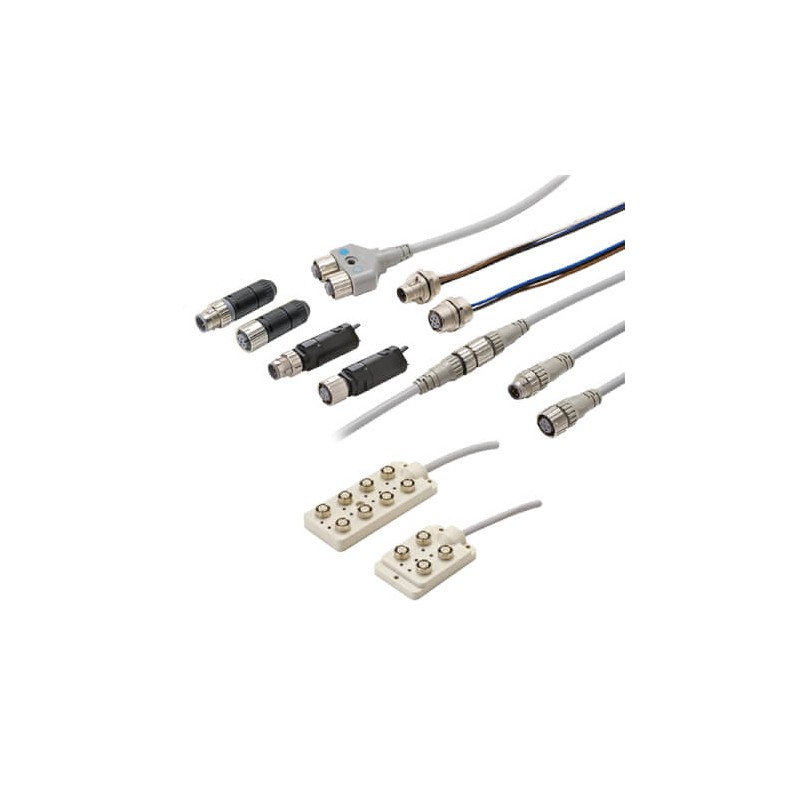

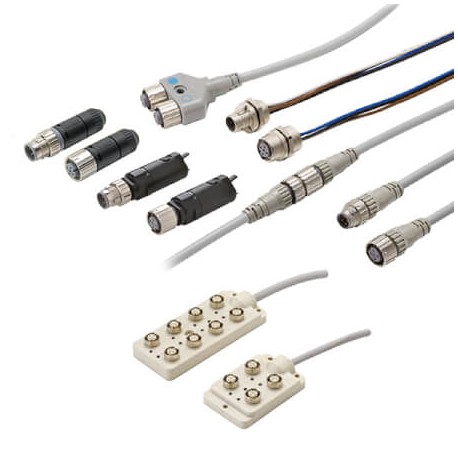

XS2C-D424 XS2C0004A XS2CD424 OMRON Without cable right Angle dc Welding M12
XS2C-D424
XS2C0004A
XS2CD424
OMRON
30
Without cable right Angle dc Welding M12
No cable Elbow cc Solder M12
Field assembly connector, M12 right-angle socket (female), 4-poles, A coded, solder connection, for cable diameters 4-5 mm
Connectors > Circular connector for field assembly (industrial connector)
Proximity Sensors > Accessories Proximity Sensors
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲- Single-end and extension connectors
- Make custom length cordsets using connector assemblies
- Panel-mounting connectors
- Y-joint & T-joint connectors
- Fast connection models simplifies maintenance and reduces down time
- Wash-down resistant models with Ecolab certification
- Special oil resistant models
- Robotic high flexible cables and vibration-proof models
- Different quality cables PVC, PUR and PP
- Connector terminal boxes
| Feature Name | Feature Value |
|---|---|
| Coating housing (EF001601) | None |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Pollution degree (EF006786) | 2 |
| Contact type (EF001587) | Bus |
| Material of contact surface (EF004020) | Gold |
| Type of housing (EF006980) | Angled |
| Over voltage category (EF006785) | I |
| Degree of protection (IP), mounted (EF007466) | IP67 |
| Type of electric connection (EF003961) | Soldering connection |
| Type of locking (EF000208) | Swivel |
| Material thread ring (EF012304) | Other |
| Housing material (EF001596) | Plastic |
| Screened (EF000881) | No |
| With status indication (EF001602) | No |
| With protective conductor (EF007468) | No |
| Rated voltage (EF000228) | 250 V |
| Thread size M (EF004759) | 12 |
| Rated current In (EF008250) | 4 A |
| Diameter connector (EF007496) | 14.9 mm |
| Min. number of insertion cycles (EF012212) | 200 |
| Number of power contacts (EF012216) | 4 |
| Number of data contacts (EF012232) | 4 |
| Number of control contacts (EF012217) | 4 |
| For cable outer diameter (EF009475) | 4 mm |
| Connectable conductor cross section solid-core (EF007337) | 0 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 0 mm² |
| Ambient temperature (EF002386) | -25 °C |
