OMRONEncodersE6A2E6A2-CW5C 100P/R 0,5M E6A21023C E6A2CW5C10005M OMRON Incremental AB 100ppr NPN 12-24vdc Cable 0.5 m

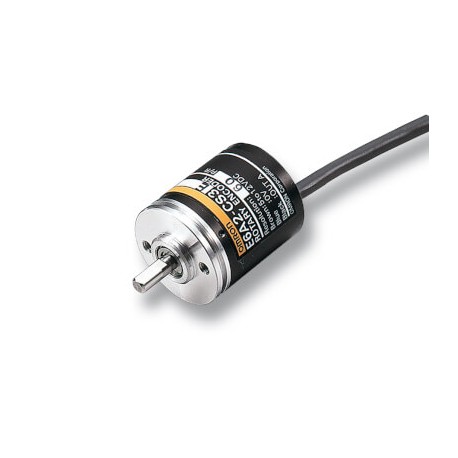

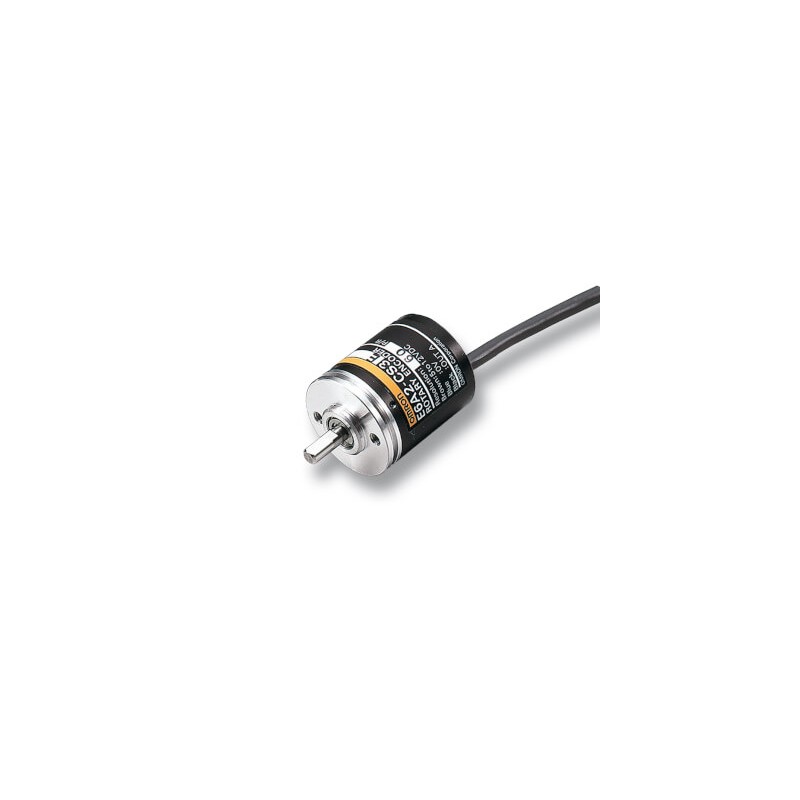

OMRON E6A2-CW5C 100P/R 0,5M E6A21023C E6A2CW5C10005M - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

E6A2-CW5C 100P/R 0,5M E6A21023C E6A2CW5C10005M OMRON Incremental AB 100ppr NPN 12-24vdc Cable 0.5 m

Reference: E6A2-CW5C 100P/R 0,5M

Code: E6A21023C

Catalog Number: E6A2CW5C10005M

Manufacturer: OMRON

Description:

Incremental AB 100ppr NPN 12-24vdc Cable 0.5 m
Encoder, incremental, 100ppr, 12-24 VDC, NPN open collector, 0.5m cable

Categories:

  • Sensors > Rotary encoder
  • OMRON > Encoders > E6A2

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 186,10 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2-3 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Features

Miniature size rotary encoder

The E6A family of rotary encoders features a small sized dia 25mm housing.

  • Small sized dia 25mm housing

Ordering information

Size dia. in mm

Output phase

Power supply voltage

Output form

Resolution (pulse/rotation)

Order code

25

A

5 to 12 VDC

NPN voltage output

10, 20, 60, 100, 200, 300, 360, 500

E6A2-CS3E

NPN open collector

10, 20, 60, 100, 200, 300, 360, 500

E6A2-CS3C

12 to 24VDC

E6A2-CS5C

A, B

5 to 12 VDC

NPN voltage output

100, 200, 360, 500

E6A2-CW3E

NPN open collector

100, 200, 360, 500

E6A2-CW3C

12 to 24VDC

E6A2-CW5C

A, B, Z

5 to 12 VDC

NPN voltage output

100, 200, 360, 500

E6A2-CWZ3E

NPN open collector

100, 200, 360, 500

E6A2-CWZ3C

12 to 24VDC

E6A2-CWZ5C

ETIM for 128484 Sensors (EC001486)

Feature nameExplosion safety category for dust (EF003998)
Feature valueNone
Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
Feature namePhysical measurement principle (EF008238)
Feature valueOptic
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP50
Feature nameStandard for interfaces (EF004017)
Feature valueOther
Feature nameModel (EF000010)
Feature valueIncremental encoder
Feature nameSignal outputs of rotary encoder (EF003590)
Feature valueA+B
Feature nameType of transmission medium (EF007513)
Feature valueOther
Feature nameType of electric connection (EF003961)
Feature valueCable
Feature nameHousing material (EF001596)
Feature valueAluminium
Feature nameExplosion safety category for gas (EF003997)
Feature valueNone
Feature nameType of shaft encoder (EF006968)
Feature valueFull shaft
Feature nameProgrammable (EF000841)
Feature valueNo
Feature nameMax. pulses per revolution (EF003589)
Feature value100
Feature nameConstruction size (EF012282)
Feature value25 mm
Feature nameDiameter axle (EF007110)
Feature value3.988 mm
Feature nameImpulse rate per cycle (EF007289)
Feature value30000
Feature nameNumber of steps per revolution (EF006938)
Feature value100
Feature nameNumber of revolutions (EF006943)
Feature value5000
