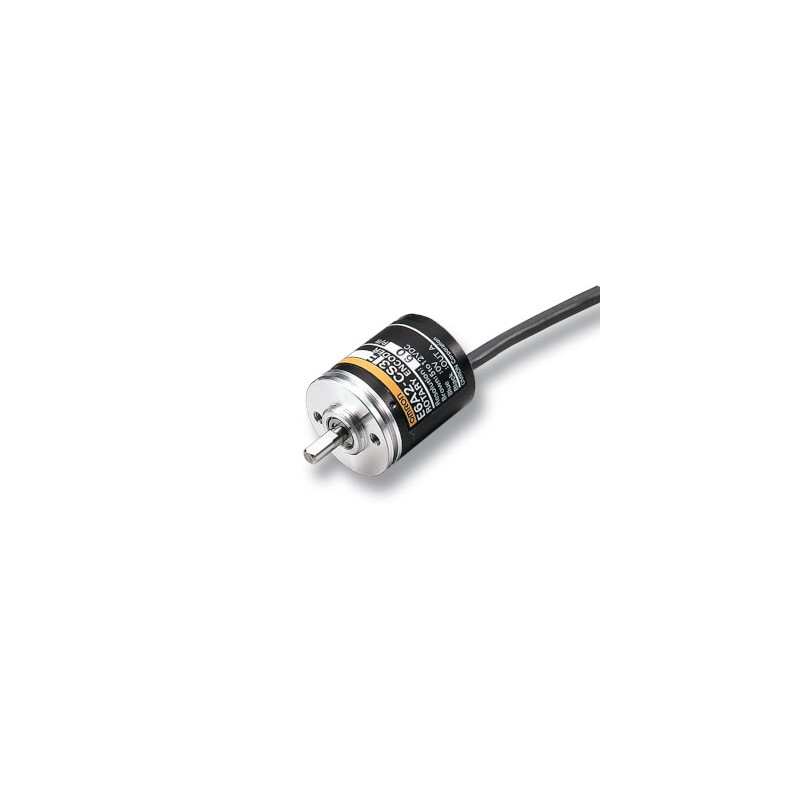

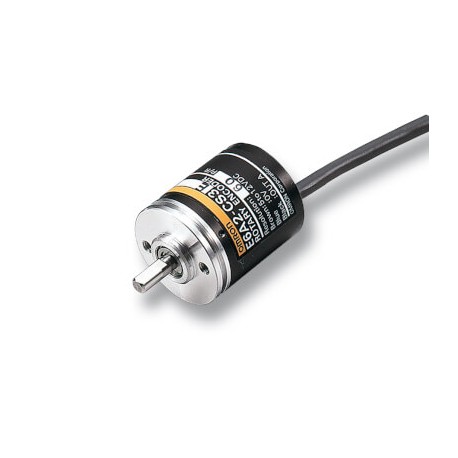

E6A2-CWZ3C 200P/R 2M E6A21048R E6A2CWZ3C200 OMRON Incremental ABZ 200ppr NPN 5-12vdc View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

E6A2-CWZ3C 200P/R 2M E6A21048R E6A2CWZ3C200 OMRON Incremental ABZ 200ppr NPN 5-12vdc

E6A2-CWZ3C 200P/R 2M

E6A21048R

E6A2CWZ3C200

OMRON

Incremental ABZ 200ppr NPN 5-12vdc

Encoder, incremental, 200ppr, 5-12 VDC, NPN open collector, 2 m cable

More details


Sensors > Rotary encoder

Encoders > E6A2

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

Total: $394.85
Unit price: $394.85
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Features

Miniature size rotary encoder

The E6A family of rotary encoders features a small sized dia 25mm housing.

  • Small sized dia 25mm housing

Ordering information

Size dia. in mm

Output phase

Power supply voltage

Output form

Resolution (pulse/rotation)

Order code

25

A

5 to 12 VDC

NPN voltage output

10, 20, 60, 100, 200, 300, 360, 500

E6A2-CS3E

NPN open collector

10, 20, 60, 100, 200, 300, 360, 500

E6A2-CS3C

12 to 24VDC

E6A2-CS5C

A, B

5 to 12 VDC

NPN voltage output

100, 200, 360, 500

E6A2-CW3E

NPN open collector

100, 200, 360, 500

E6A2-CW3C

12 to 24VDC

E6A2-CW5C

A, B, Z

5 to 12 VDC

NPN voltage output

100, 200, 360, 500

E6A2-CWZ3E

NPN open collector

100, 200, 360, 500

E6A2-CWZ3C

12 to 24VDC

E6A2-CWZ5C


ETIM for 144306 Sensors (EC001486)
Feature Name Feature Value
Degree of protection (NEMA) (EF011959) Other
Degree of protection (IP) (EF005474) IP50
Model (EF000010) Incremental encoder
Signal outputs of rotary encoder (EF003590) A+B+0
Construction size (EF012282) 25 mm
Diameter axle (EF007110) 3.988 mm

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGO OMRON AUTOMATION EN.pdf 28 Mbytes
PDF CATALOG OMRON 2024 EN.pdf 25 Mbytes
E6A2-CWZ3C 200P/R 2M E6A2CWZ3C200 E6A21048R q018_e6a2_incremental_rotary_encoder_25_mm_datasheet_en.pdf 265 Kbytes E6A2-CWZ3C 200P/R 2M E6A2CWZ3C200 E6A21048R q018_e6a2_incremental_rotary_encoder_25_mm_datasheet_en.pdf
E6A2-CWZ3C 200P/R 2M E6A2CWZ3C200 E6A21048R z_series_general_purpose_basic_switch_datasheet_en.pdf 4 Mbytes E6A2-CWZ3C 200P/R 2M E6A2CWZ3C200 E6A21048R q018_e6a2_incremental_rotary_encoder_25_mm_datasheet_en.pdf
