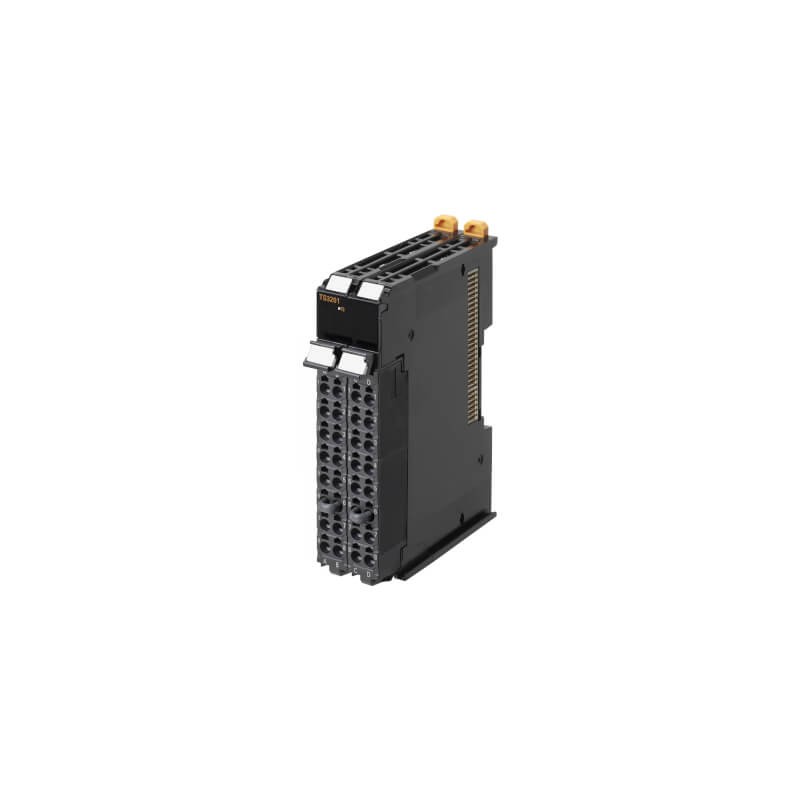

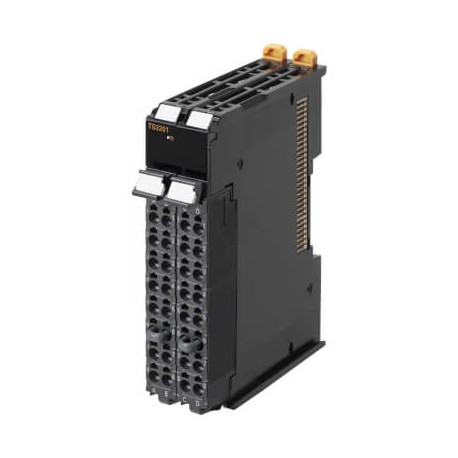

NX-TS3202 NX020060G 380138 OMRON NX Unit 4 Pt100 Inputs (3 wires) 0.01°C max. 10 ms
NX-TS3202
NX020060G
NXTS3202
OMRON
Unit NX - 4 Inputs, Pt100 (3 wire) 0.01°C max. 10 ms
4 Temperature Sensor Inputs, Pt100 (3-wire), resolution 0.01°C, 10 ms/Unit, screwless push-in connectors, 24 mm wide
Integrated Automation > Machine I/O NX-series
* Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
More info
▲Specifications
| I/O system | NX I/O Bus |
| Type of module | Analog I/O |
| Number of analog inputs | 4 |
| Temperature input type | Pt100 |
| Linear analog input type | None |
| Resolution of the analog inputs | 17 Bit |
| Input circuit type | Single-ended |
| Number of analog outputs | 0 |
| Linear analog output type | None |
| Conversion time | 10 ms/unit |
| Signal processing | Free running |
| IO link master | |
| I/O connection type | Push-in |
| Number of I/O connectors | 2 |
| Detachable I/O connector | |
| Suitable for safety functions | |
| SIL according to IEC 61508 | None |
| Degree of protection (IP) | IP20 |
| Height | 100 mm |
| Width | 24 mm |
| Depth | 71 mm |
| Weight | 140 g |
Accessories
| NX-AUX02 | Terminal block coding pins for 10x NX I/O units (terminal block: 30 pins, unit: 30 pins) | |
| NX-HB3201 | Heater Burnout Detection Unit, 4 CT inputs, 4 PNP Outputs, screwless push-in connector, 12 mm wide |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| NX-TS3202 NXTS3202 NX020060G ES_NX-TS2201.pdf | 5 Mbytes |
 |
| NX-TS3202 NXTS3202 NX020060G nx_had_brochure_en.pdf | 2 Mbytes |
|
